M8A Fanless Industrial Mini PC
A compact fanless industrial computer with triple display output, dual LAN, two RS232 ports, and up to 64GB DDR4 memory.
Product highlights
Built for reliable deployment.

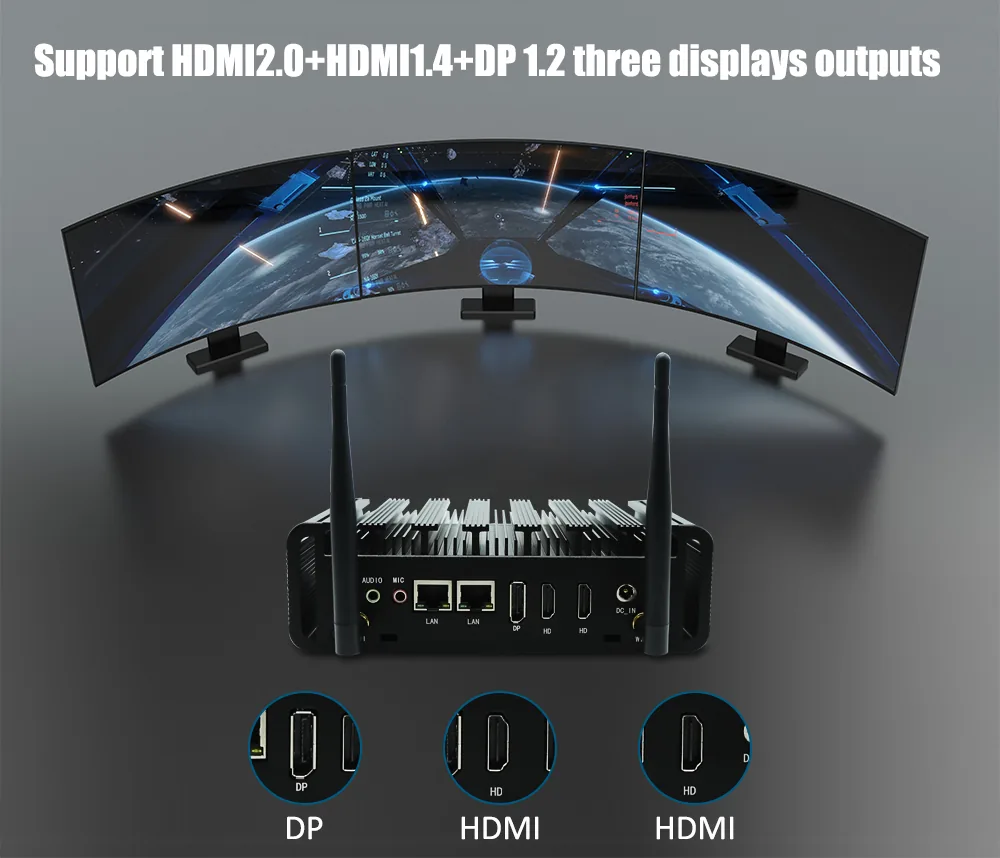

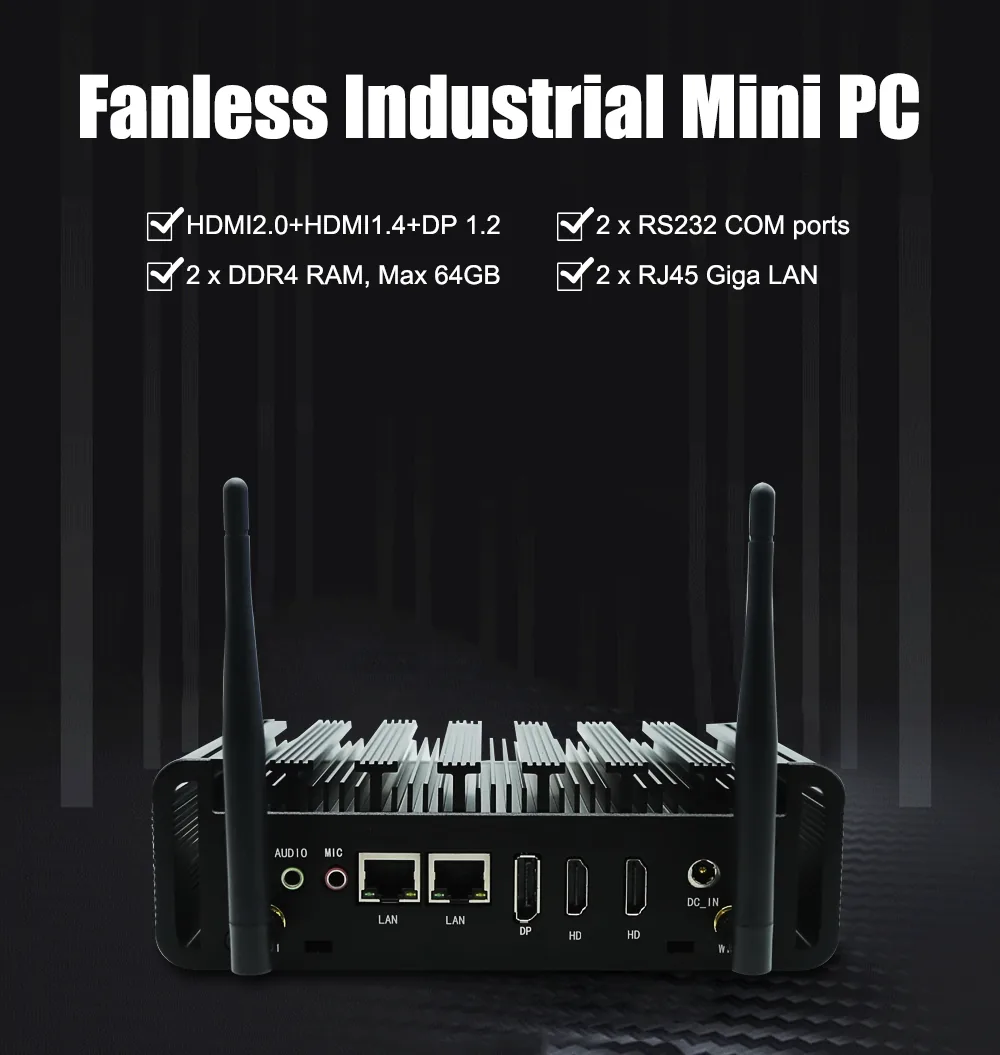

- Triple display output through HDMI 2.0, HDMI 1.4, and DP 1.2
- Dual Intel/Realtek Gigabit network configuration

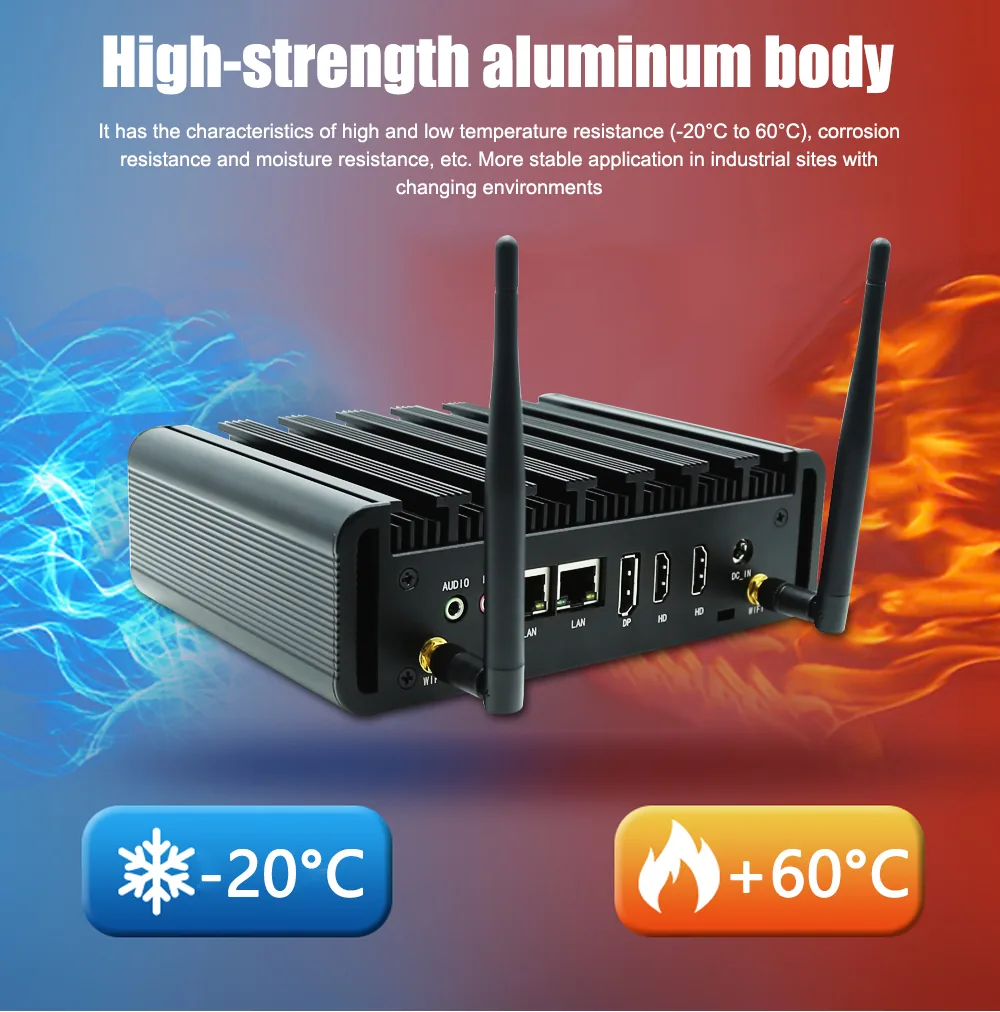

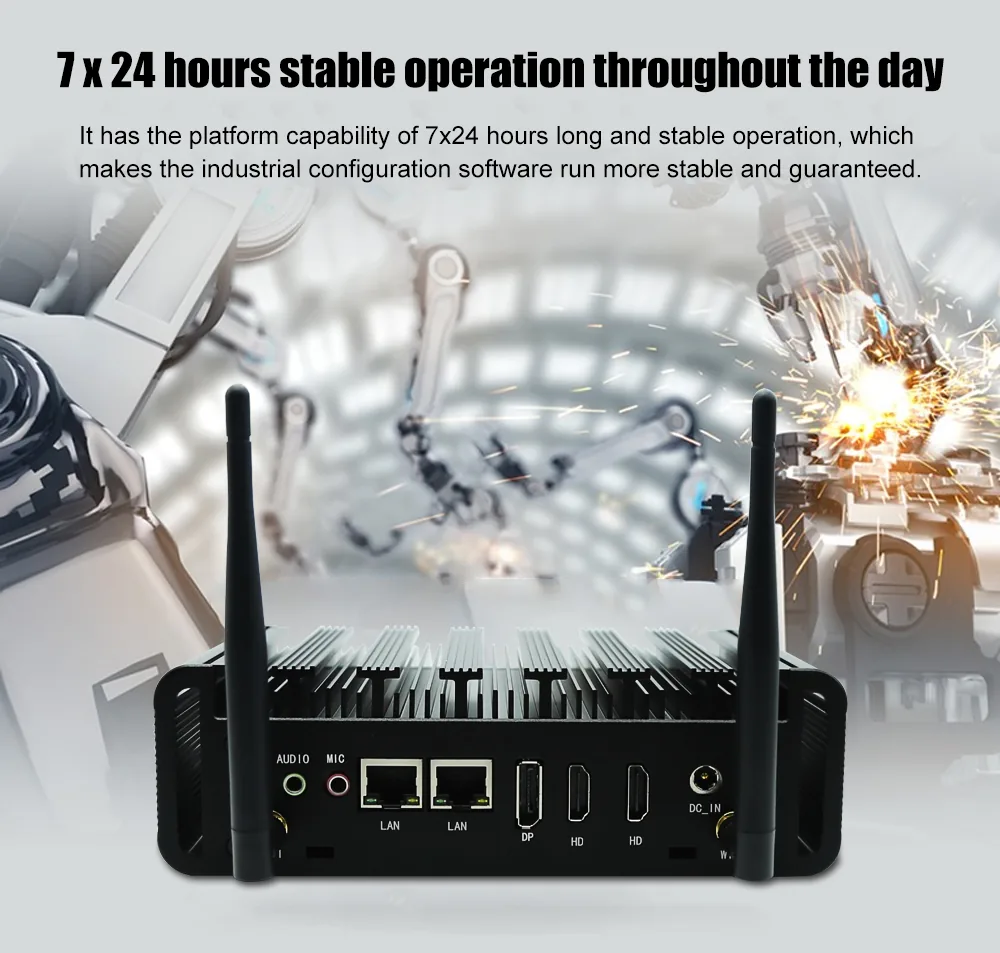

- Fanless aluminium design for 7 x 24 hour operation

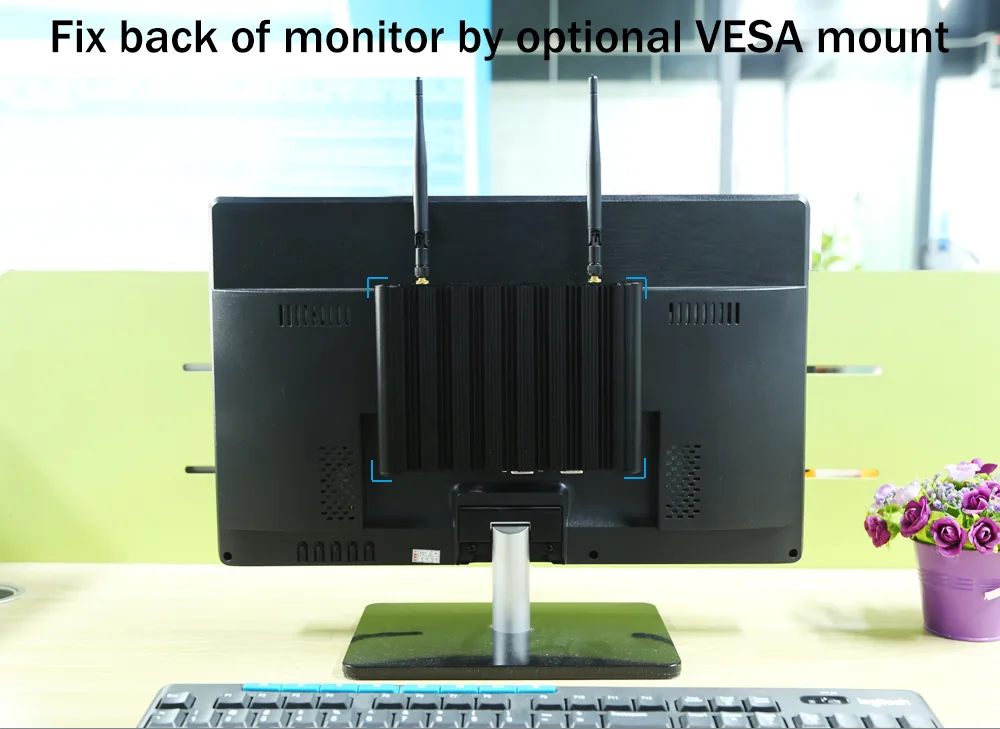

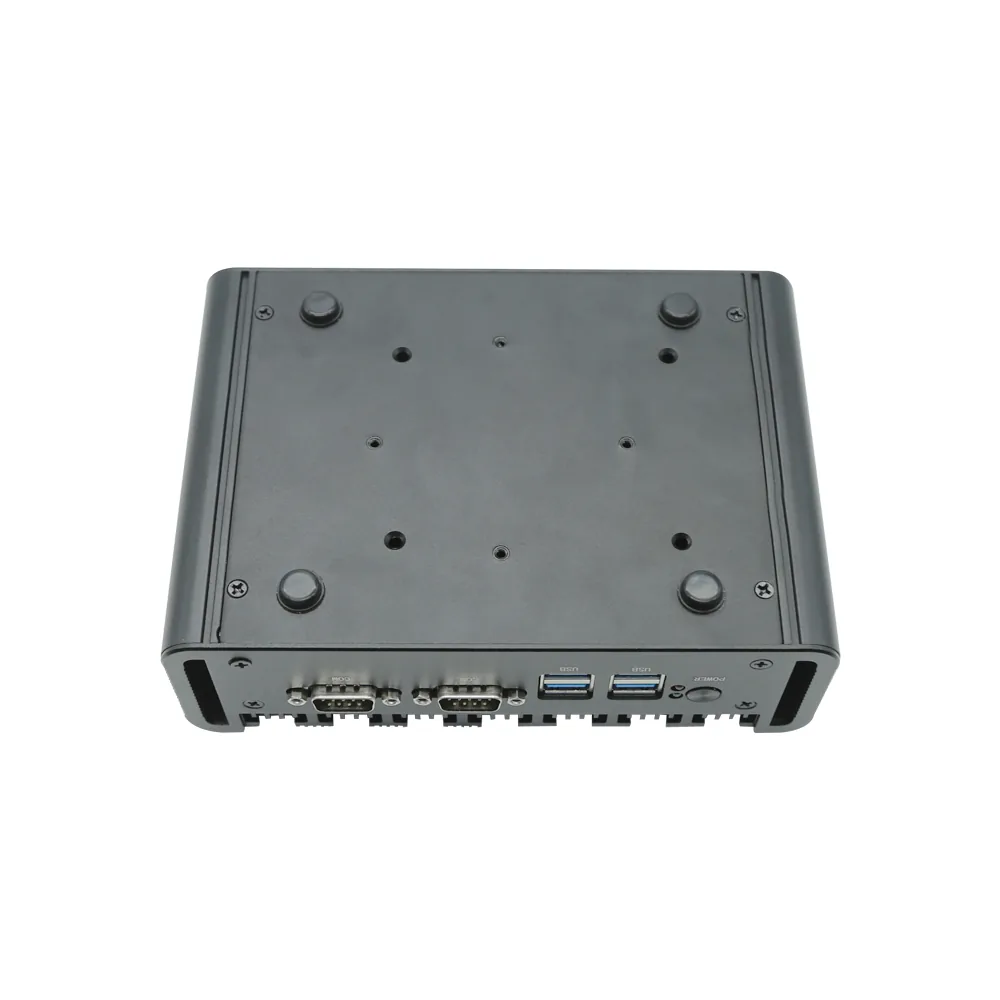

- Dual Kensington lock holes and optional VESA mounting
Technical specifications
M8A specifications
| CPU | Intel 6th / 8th / 10th Gen Core i3 / i5 / i7 / Celeron |
|---|---|
| Memory | Celeron: 1 x DDR4; Core: 2 x DDR4, up to 64GB |

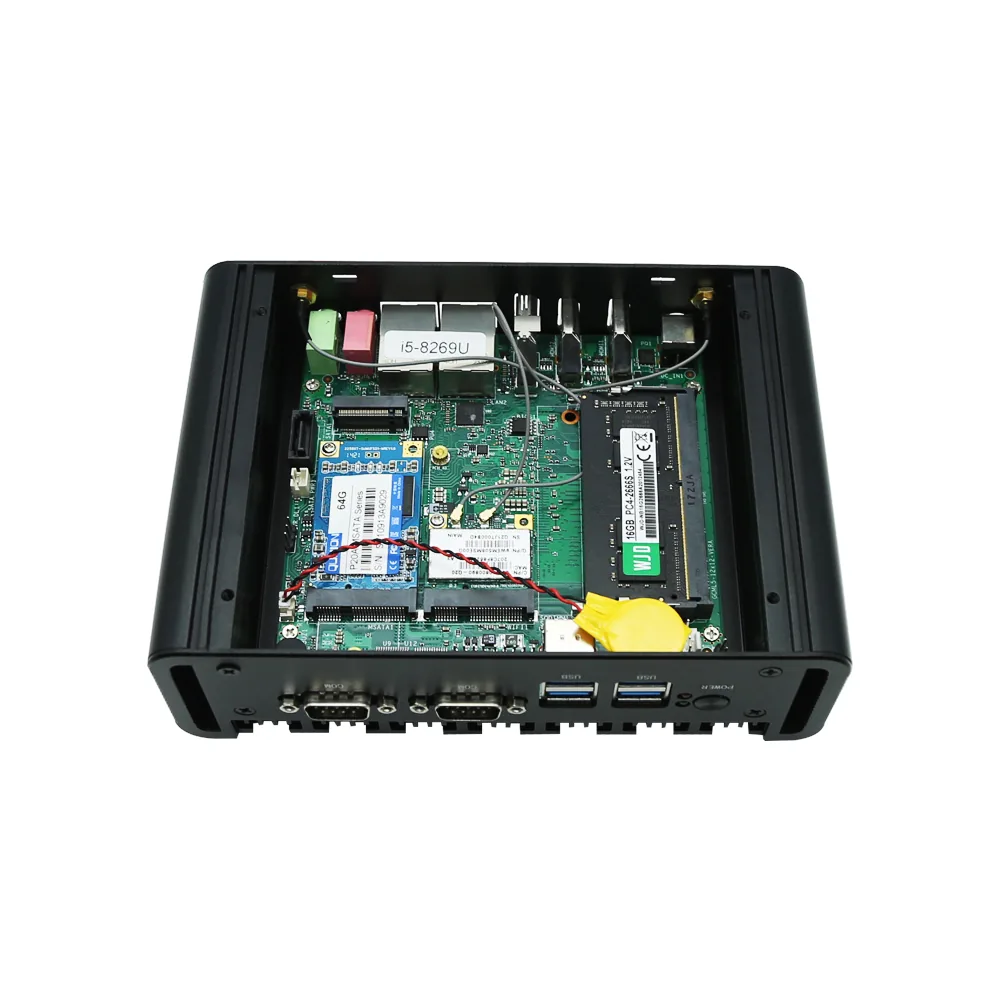

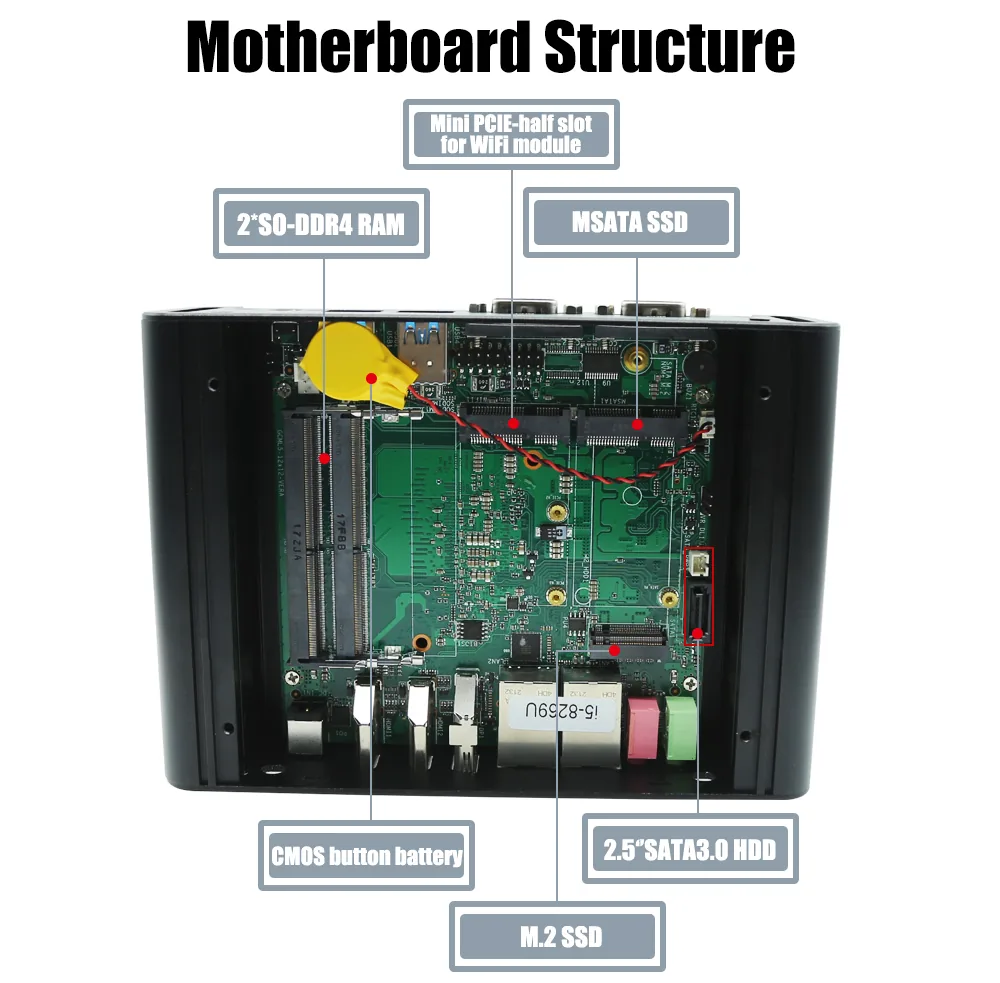

| Storage | 1 x M.2 NVMe SSD; 1 x mSATA 3.0 SSD; 1 x SATA 3.0 HDD or SSD |
| OS | Windows 10 / Linux / WES 10 |
| Network | 2 x Realtek RTL8111 Gigabit LAN |
| Wi-Fi | 1 x mSATA half-size slot |
| Cooling | Fanless |

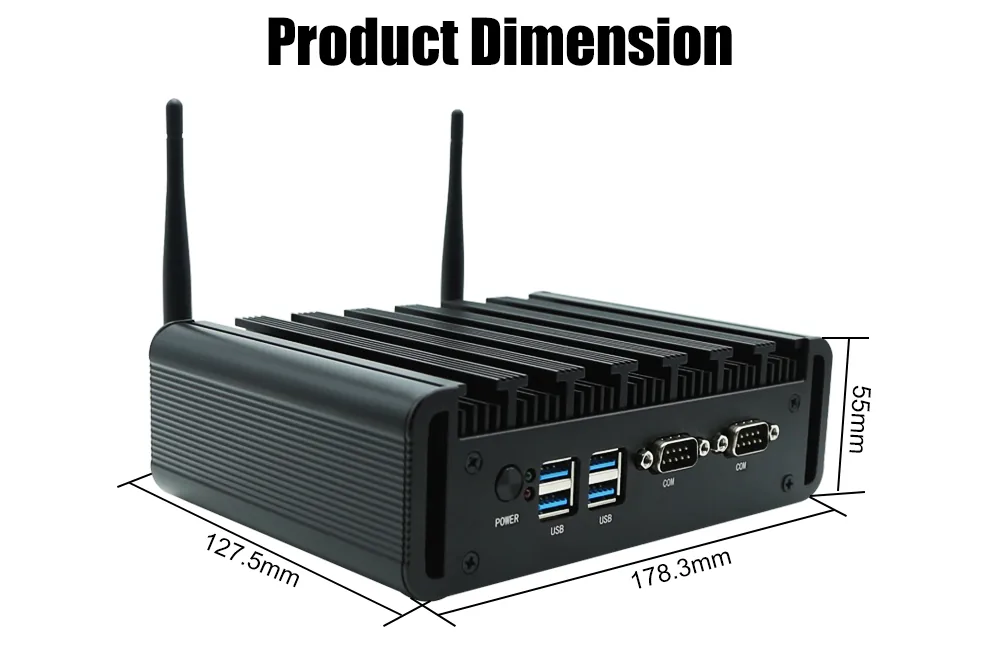

| Dimensions | 178.3 x 127.5 x 55 mm |

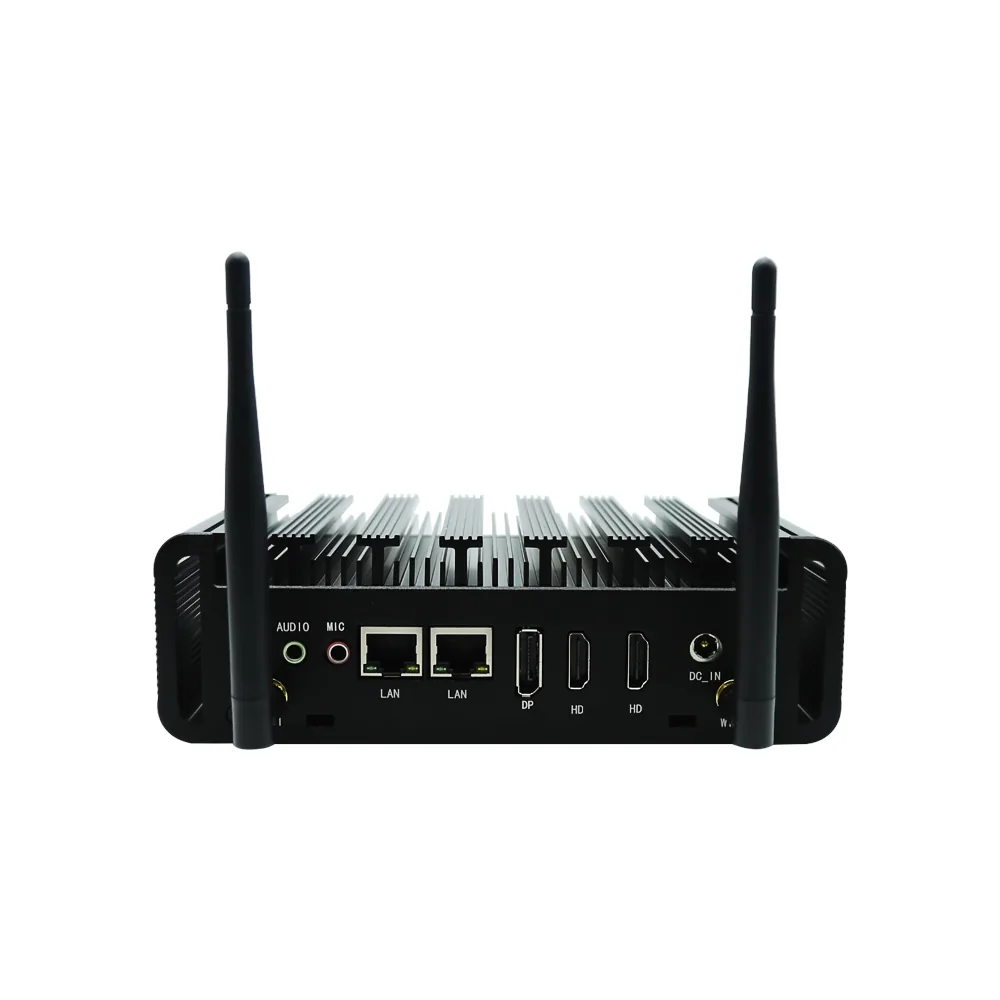

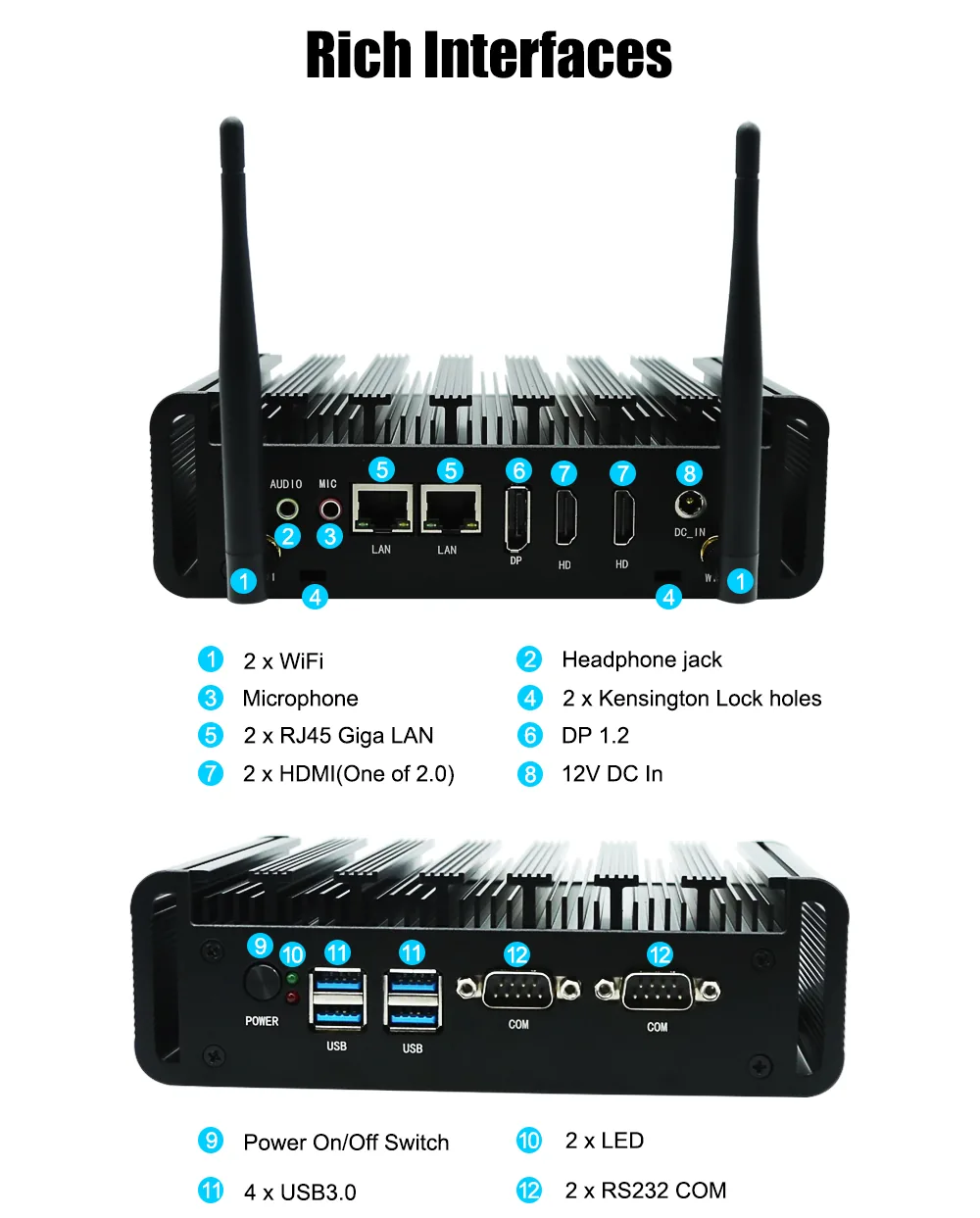

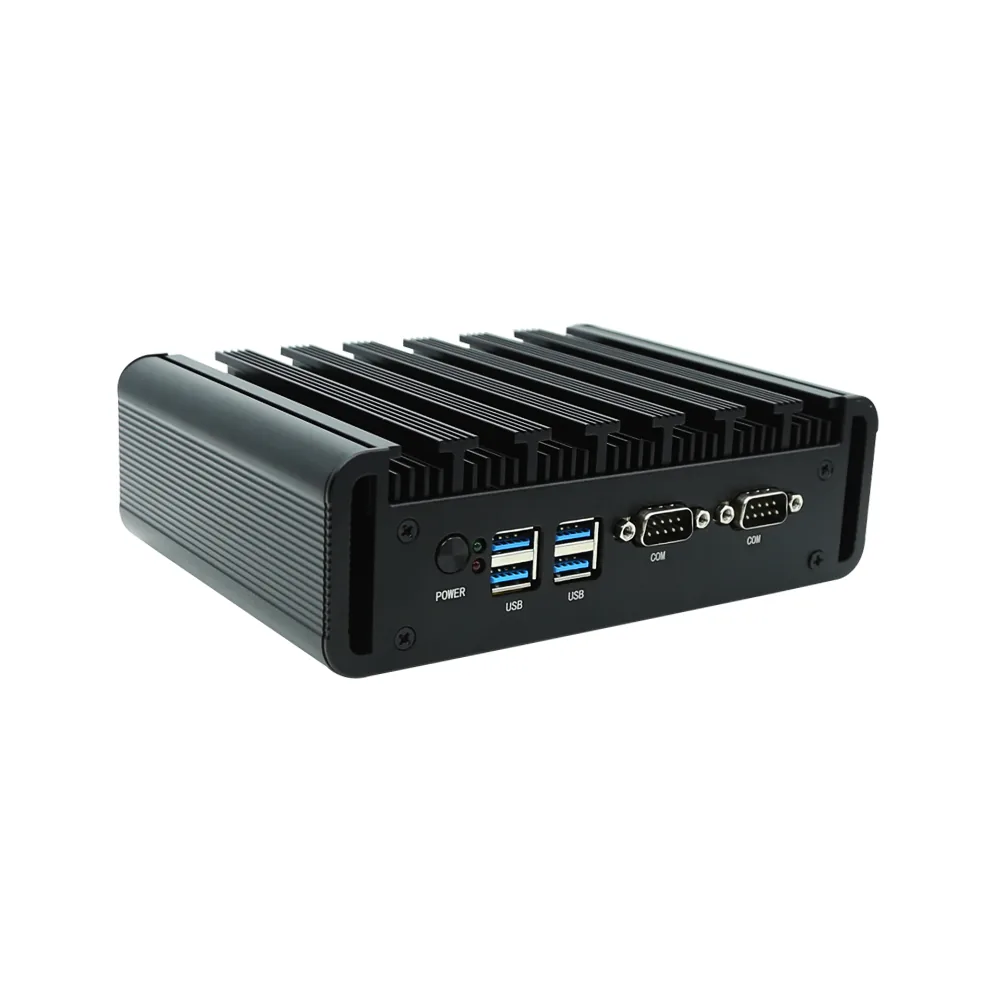

| I/O | 12V DC; 4 x USB 3.0; HDMI 2.0; HDMI 1.4; DP 1.2; 2 x RS232; 2 x RJ45; MIC; SPK |

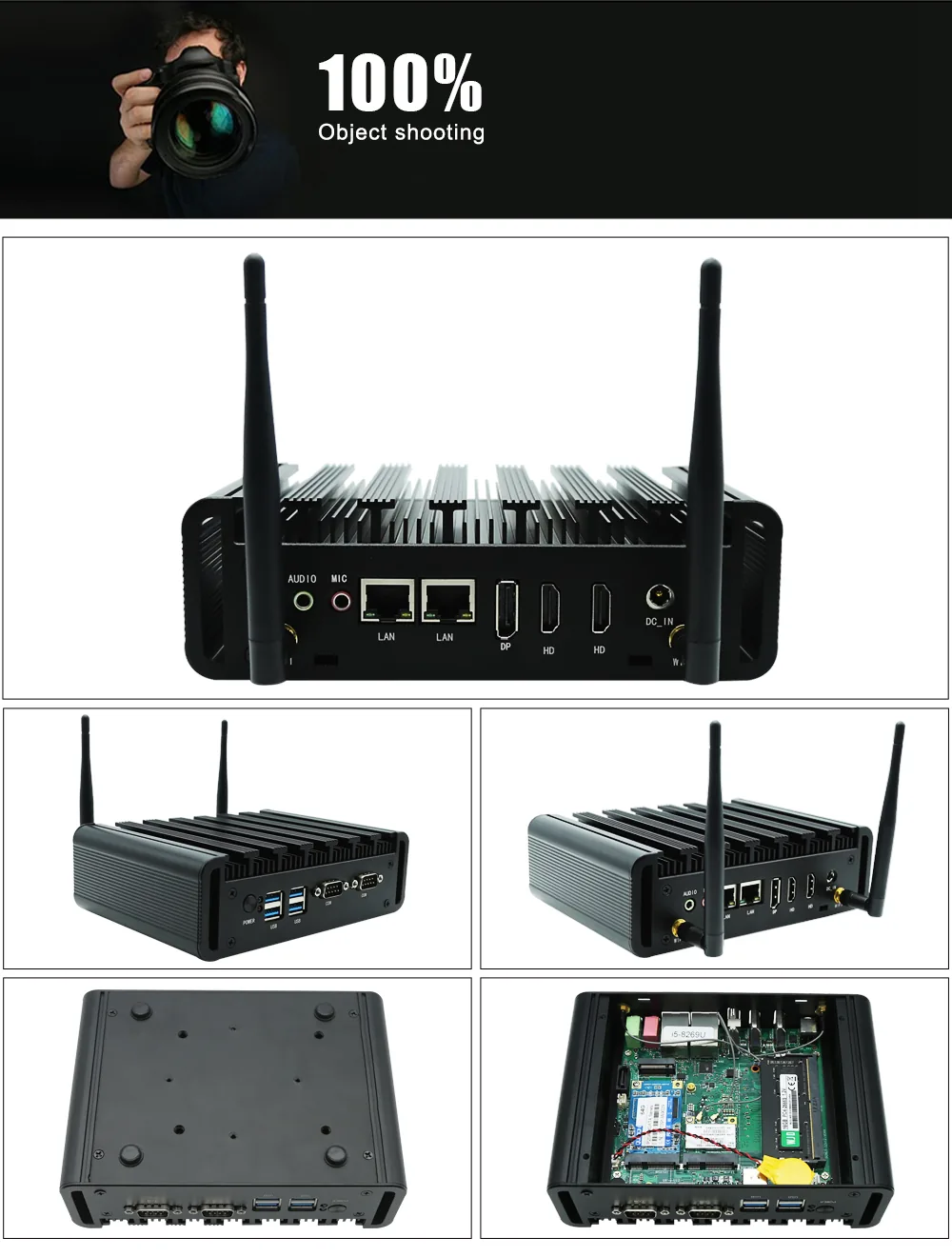

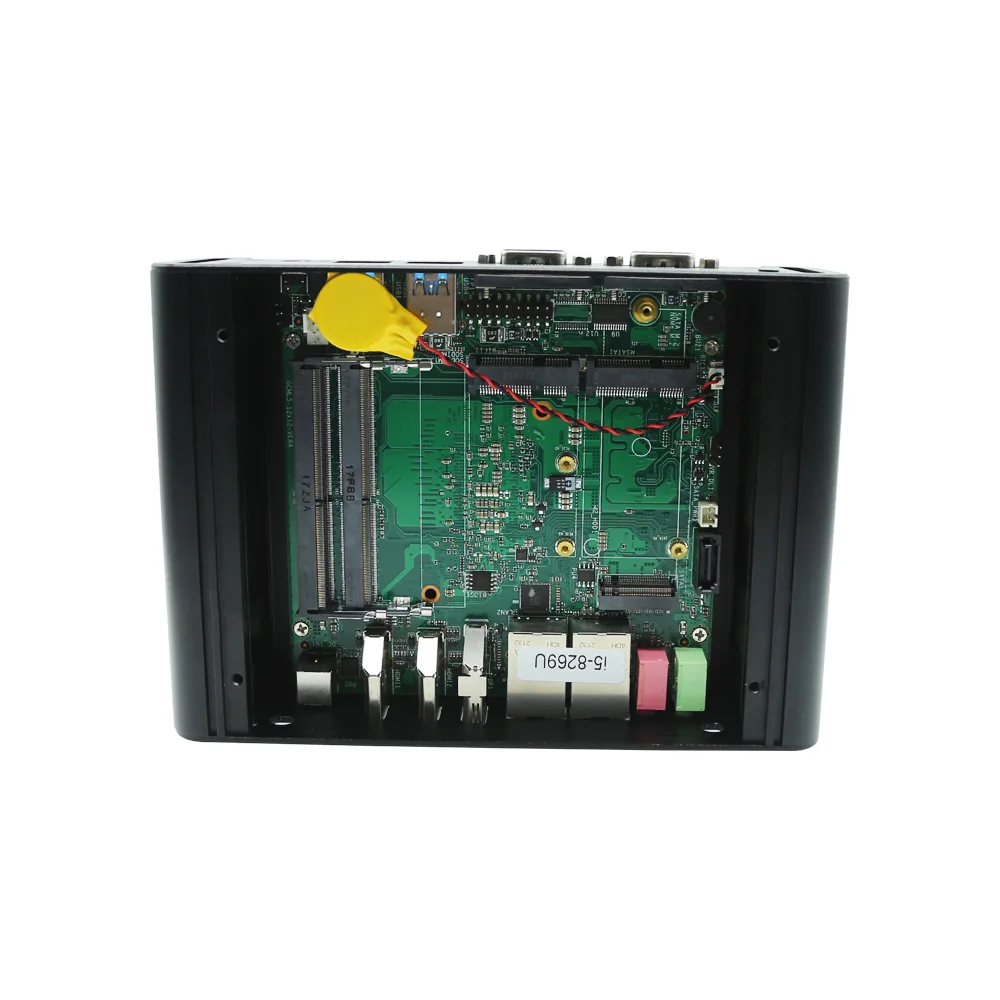

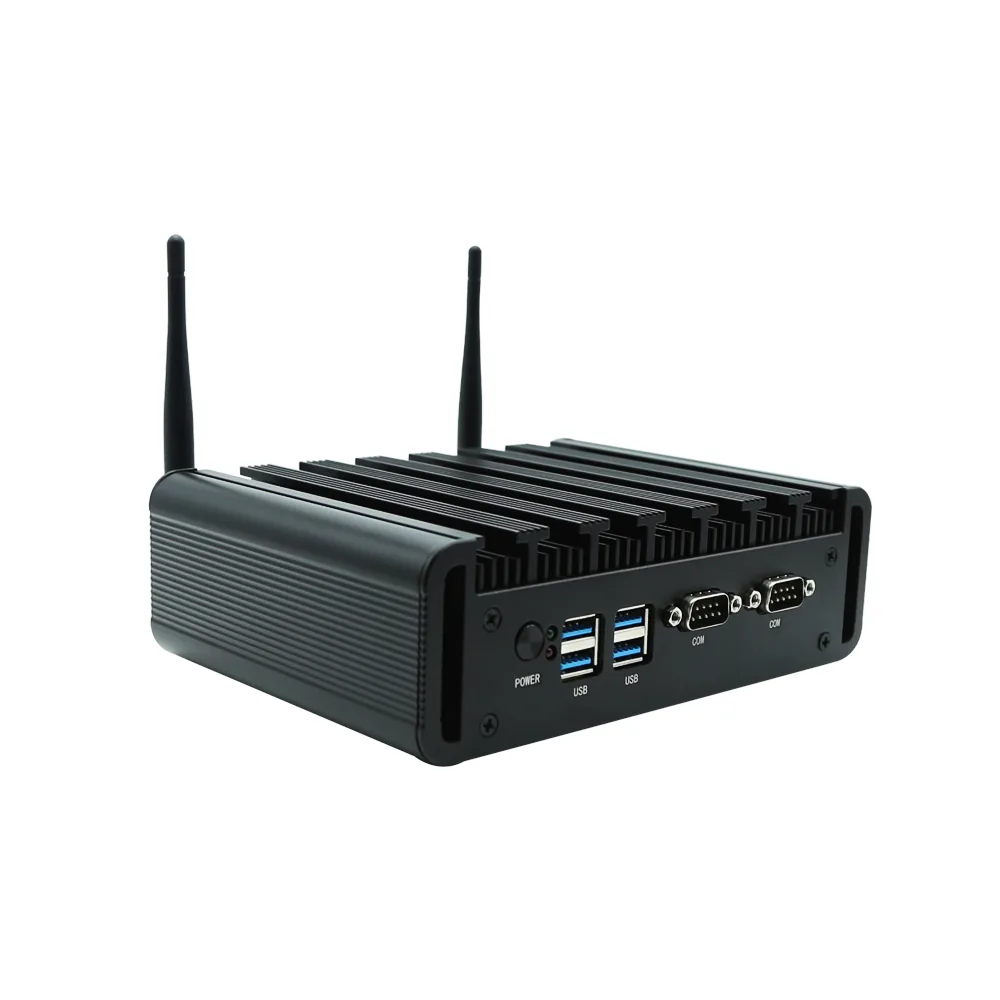

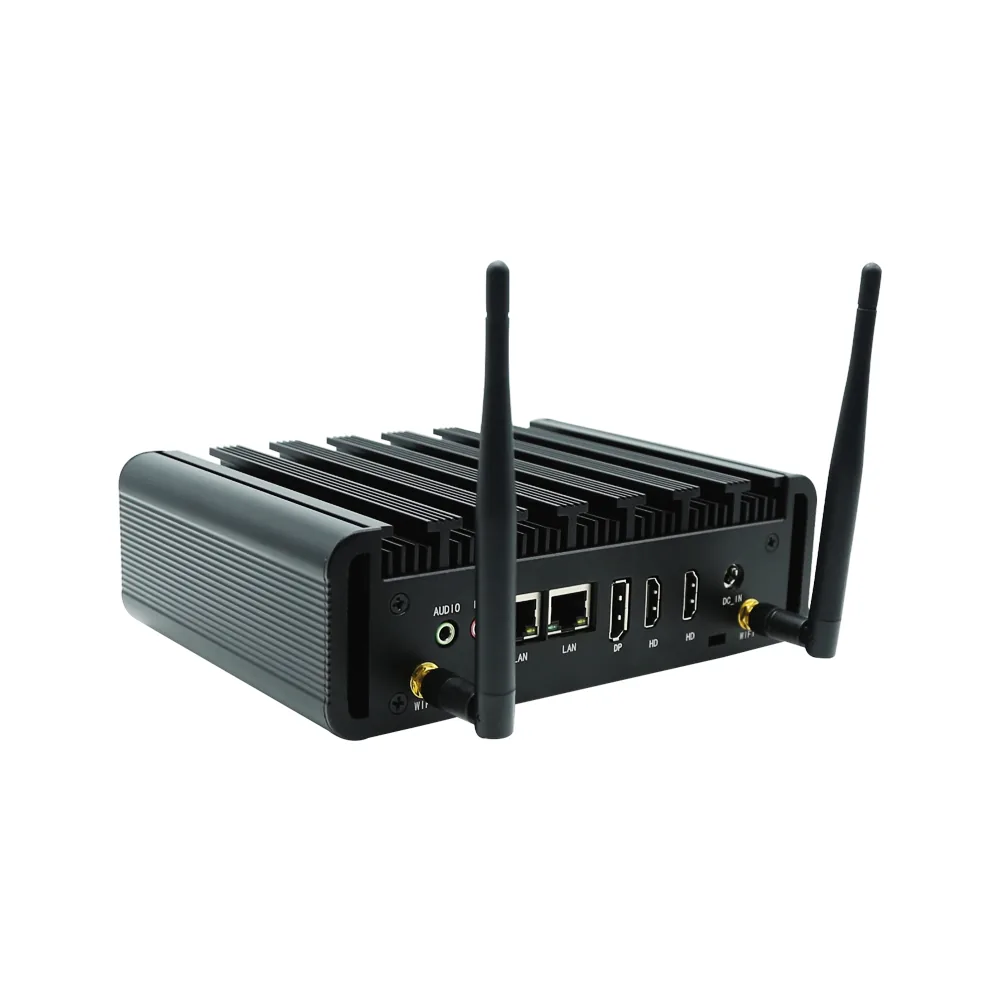

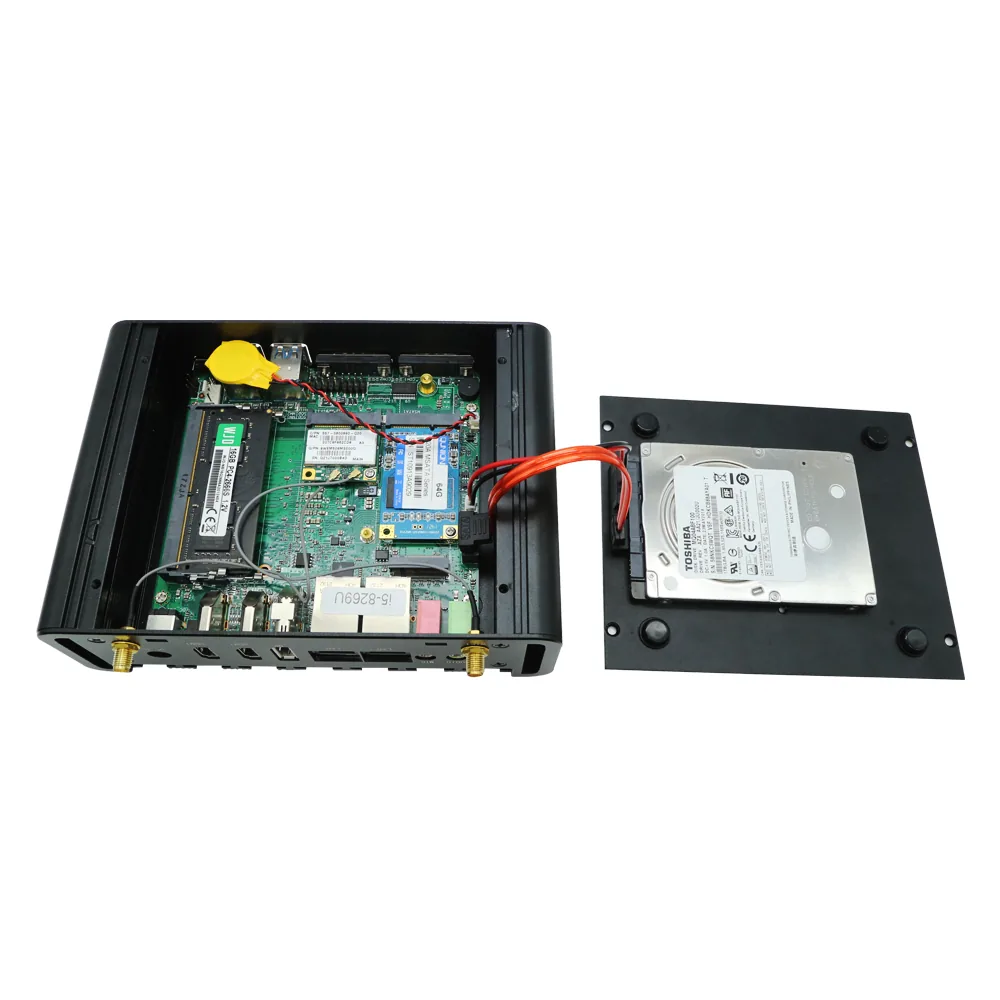

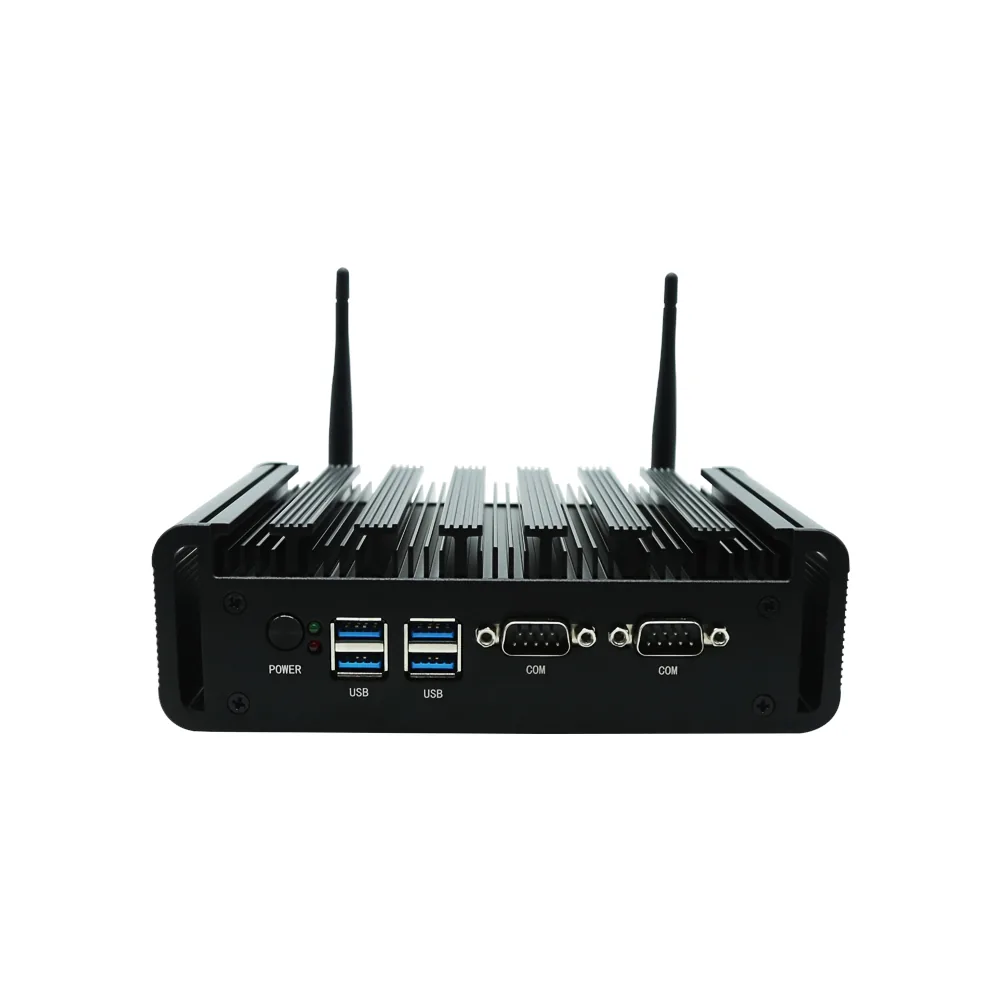

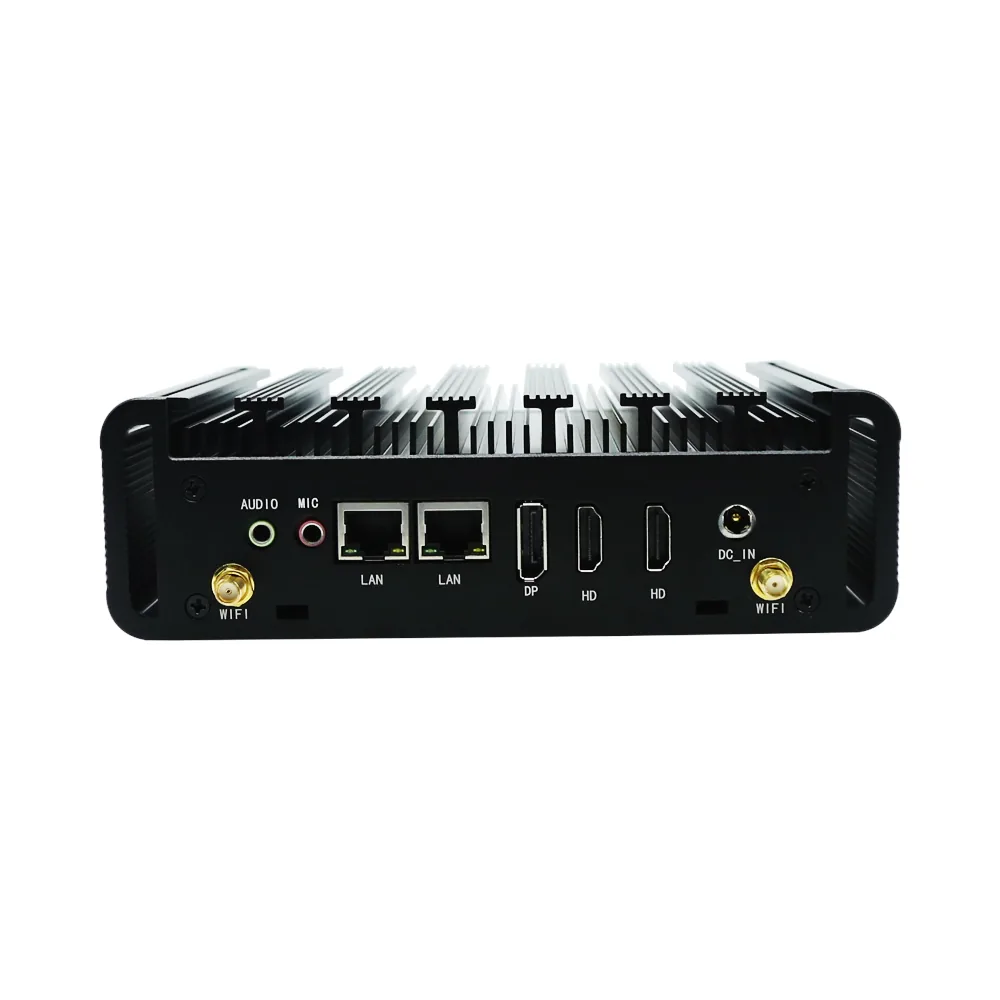

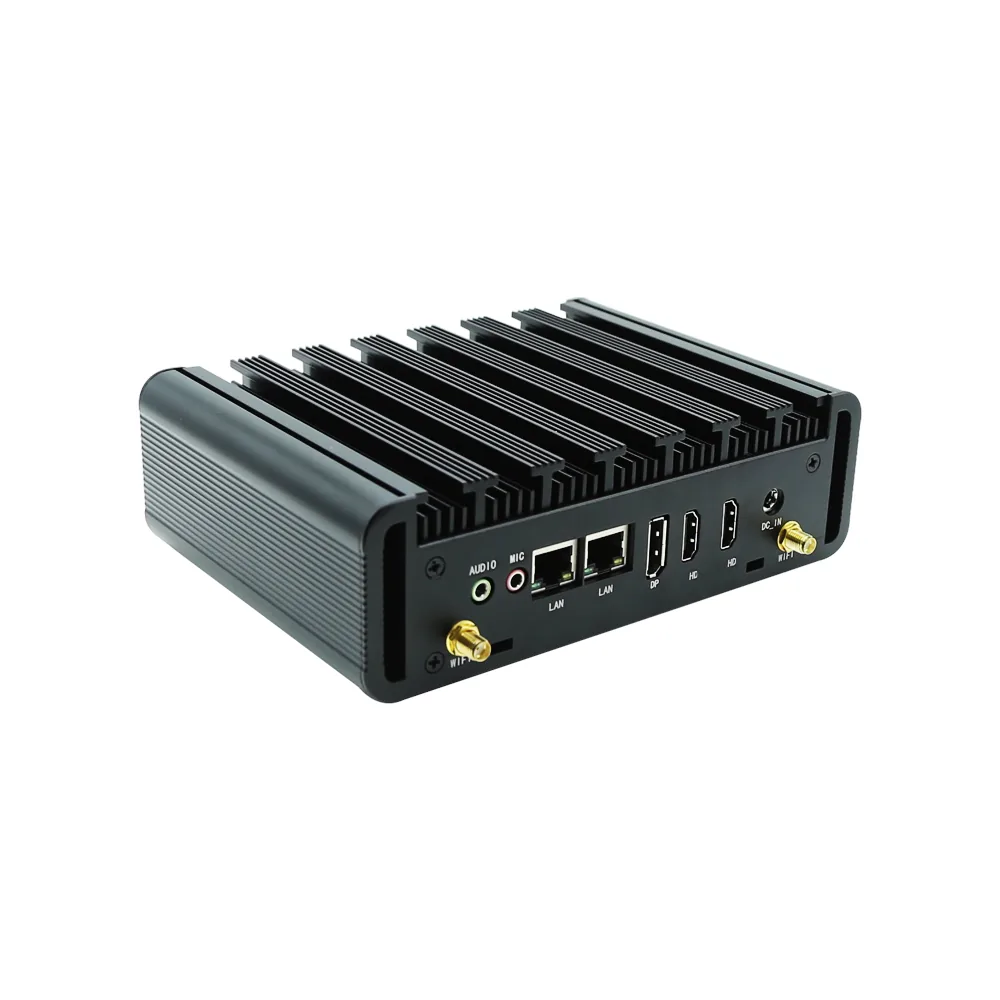

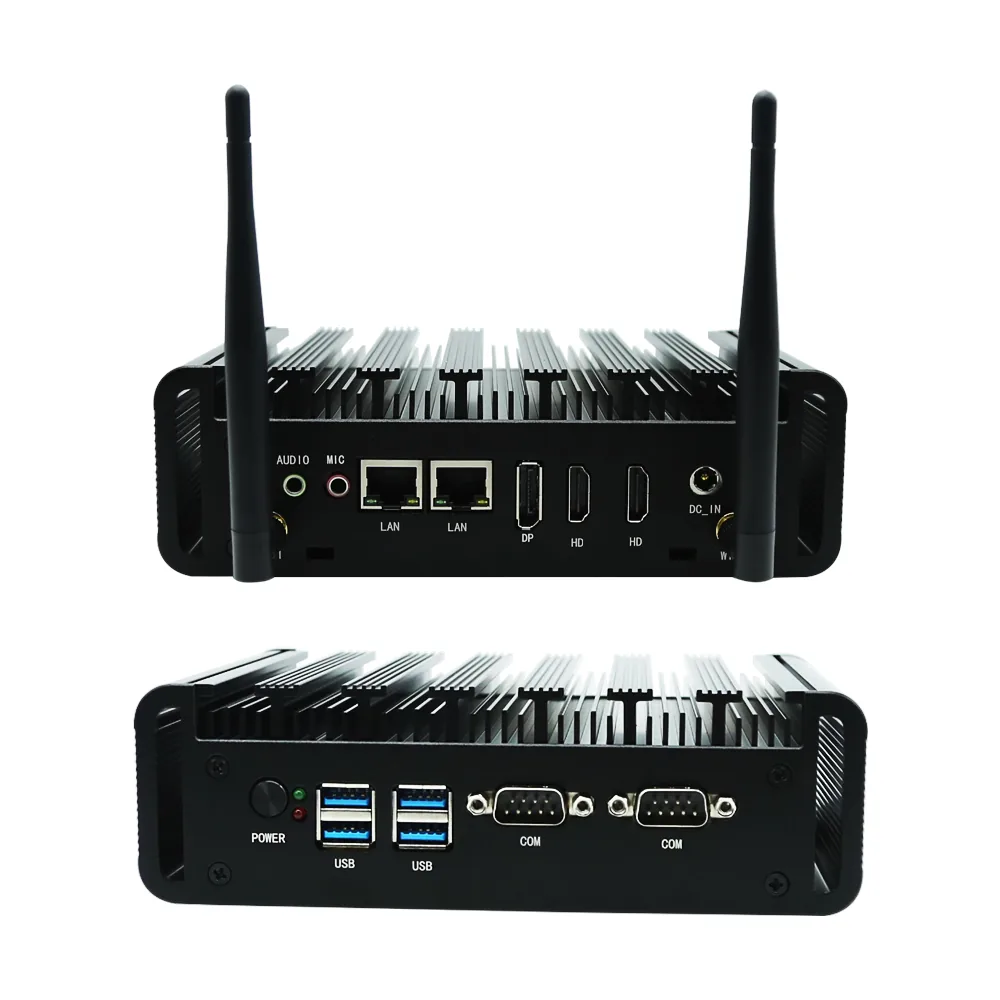

Product gallery
Product and interface views.

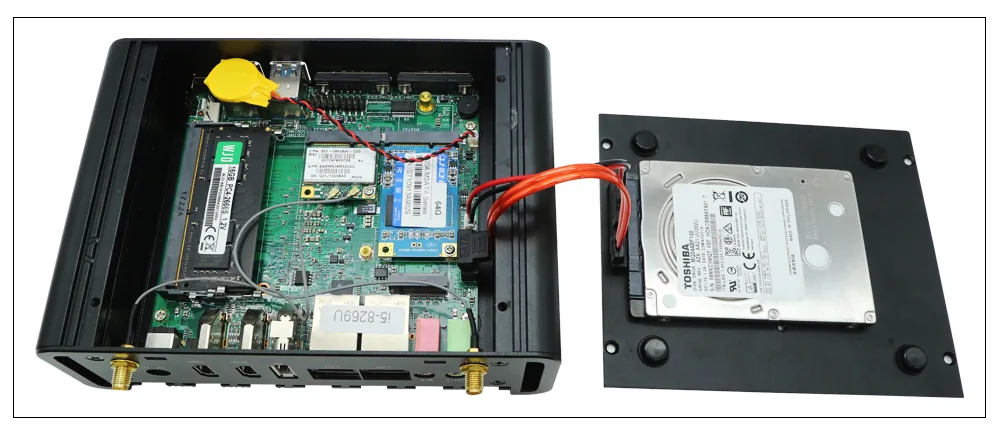

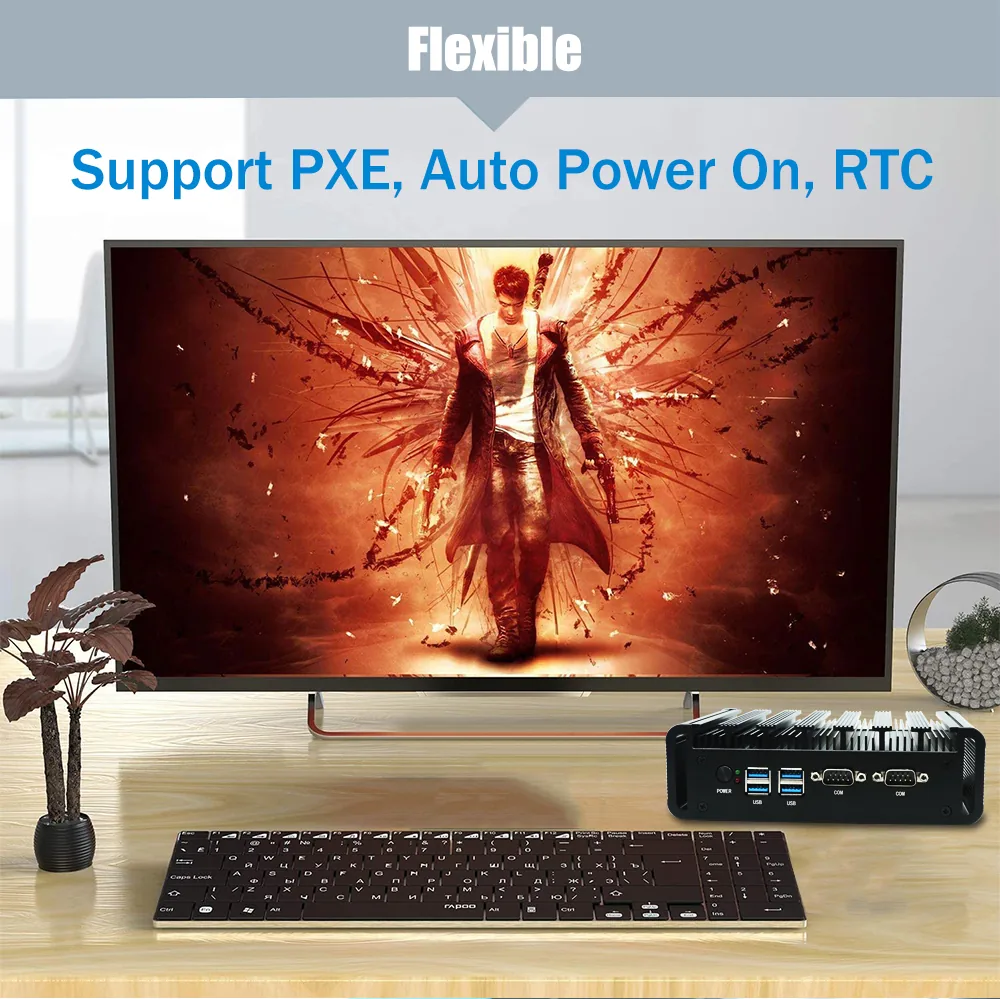

Detailed presentation
Product details and interface information.
Product video
M8A Fanless Industrial Mini PC overview
Applications
Typical deployment environments.
- Industrial automation
- Retail terminals
- Video surveillance
- Digital signage
Project inquiry
Discuss your hardware and deployment requirements.
Send the required CPU, memory, storage, network, serial-port, operating-system, and deployment quantity for a quotation.
Industrial Mini PC deployment planning
The M8A Mini PC is intended for commercial and industrial environments where reliability, connectivity and continuous operation matter. Before finalizing a configuration, confirm the operating temperature range, mounting method, power requirements, available network connections and any vibration or dust exposure in the installation area.
Interface planning is equally important. List the required serial ports, USB connections, display outputs, LAN speed, digital I/O and expansion needs up front so the system can be reviewed against the actual equipment it will control or communicate with.
For project quotations, include the operating system, processor class, memory, storage, quantity, target market and expected deployment date. Final compatibility, certification scope, lead time and warranty terms are confirmed in writing after the requirements review.
