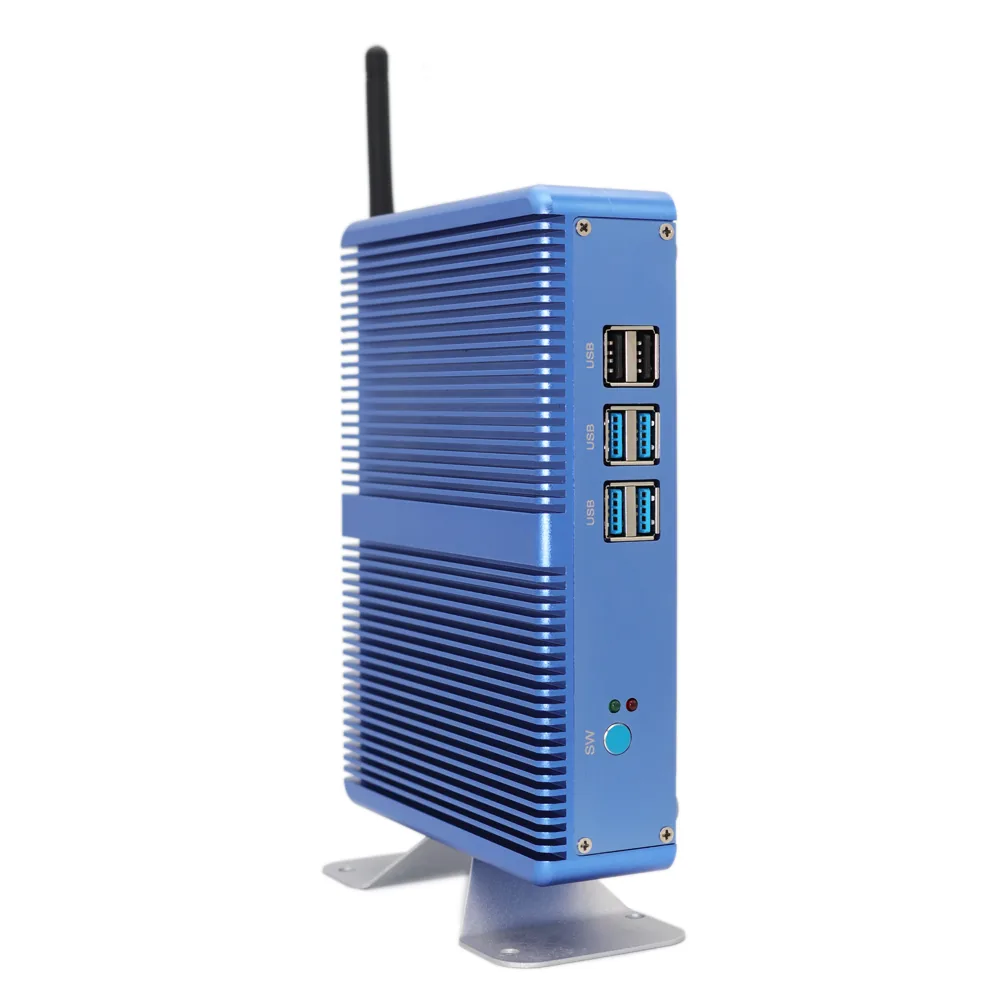

M3 Compact Commercial Mini PC
A fanless commercial mini PC with flexible Intel processor options, dual storage, VGA and HDMI output, and multiple color choices.
Product highlights
Built for reliable deployment.

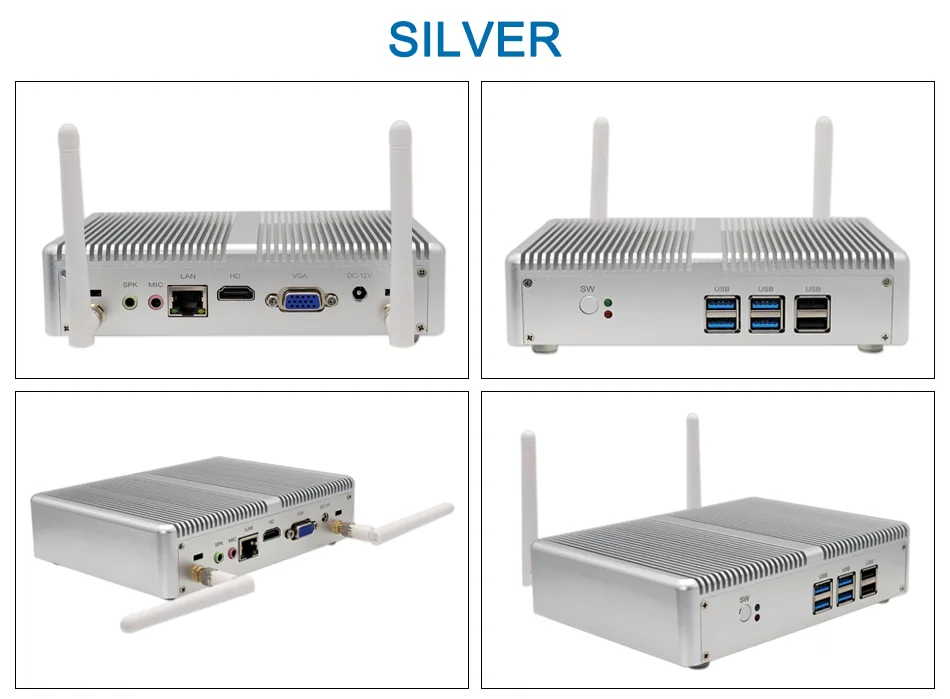

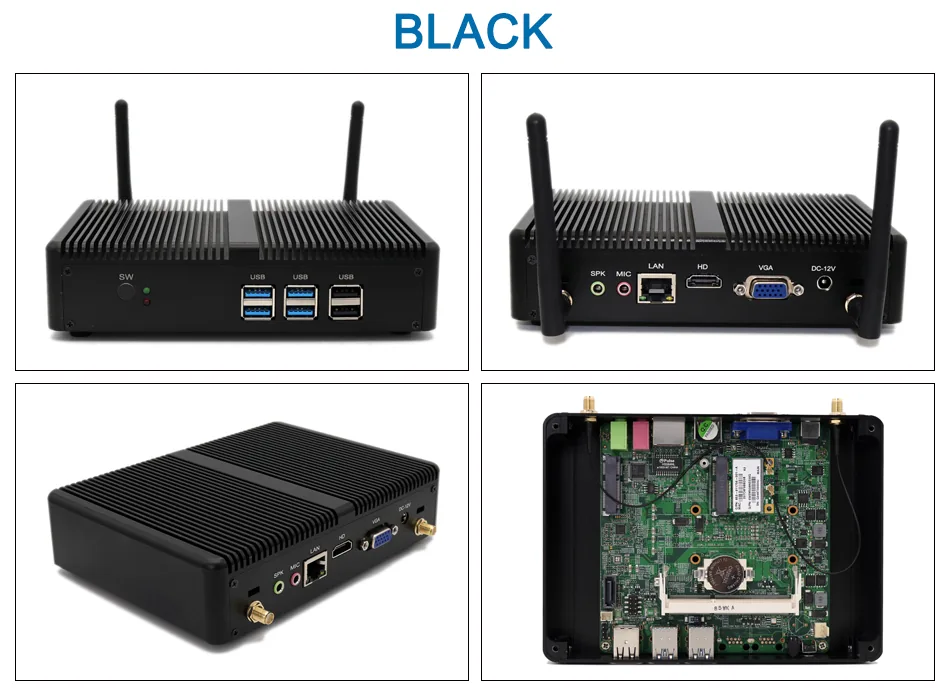

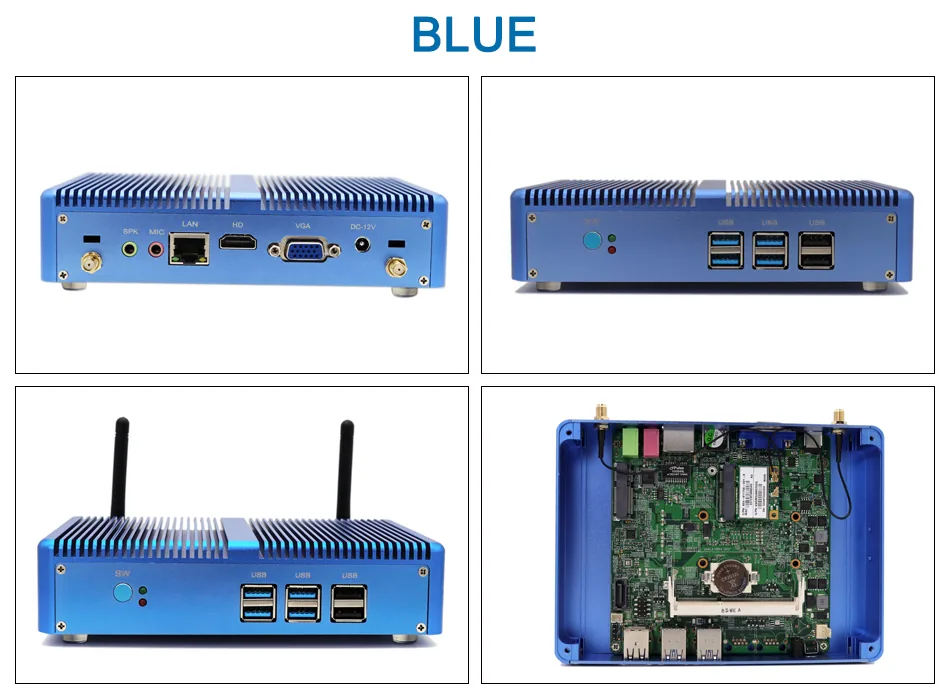

- Fanless aluminium chassis with multiple color options
- VGA and HDMI dual display

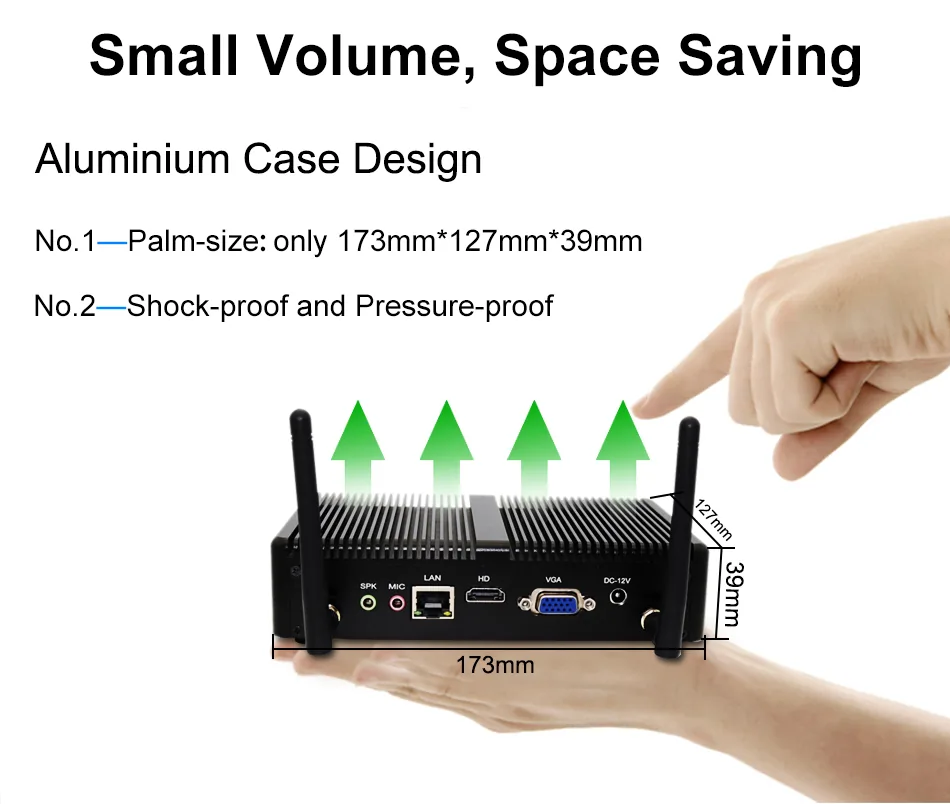

- Compact 173 x 127 mm footprint
- Optional M3-2COM and M3-4LAN variants are available for project requirements
Technical specifications
M3 specifications
| CPU | Intel 4th / 6th / 7th Gen Core i3 / i5 / i7 / Celeron |
|---|---|
| Memory | 1 x DDR3 or 1 x DDR4 SO-DIMM depending on CPU |

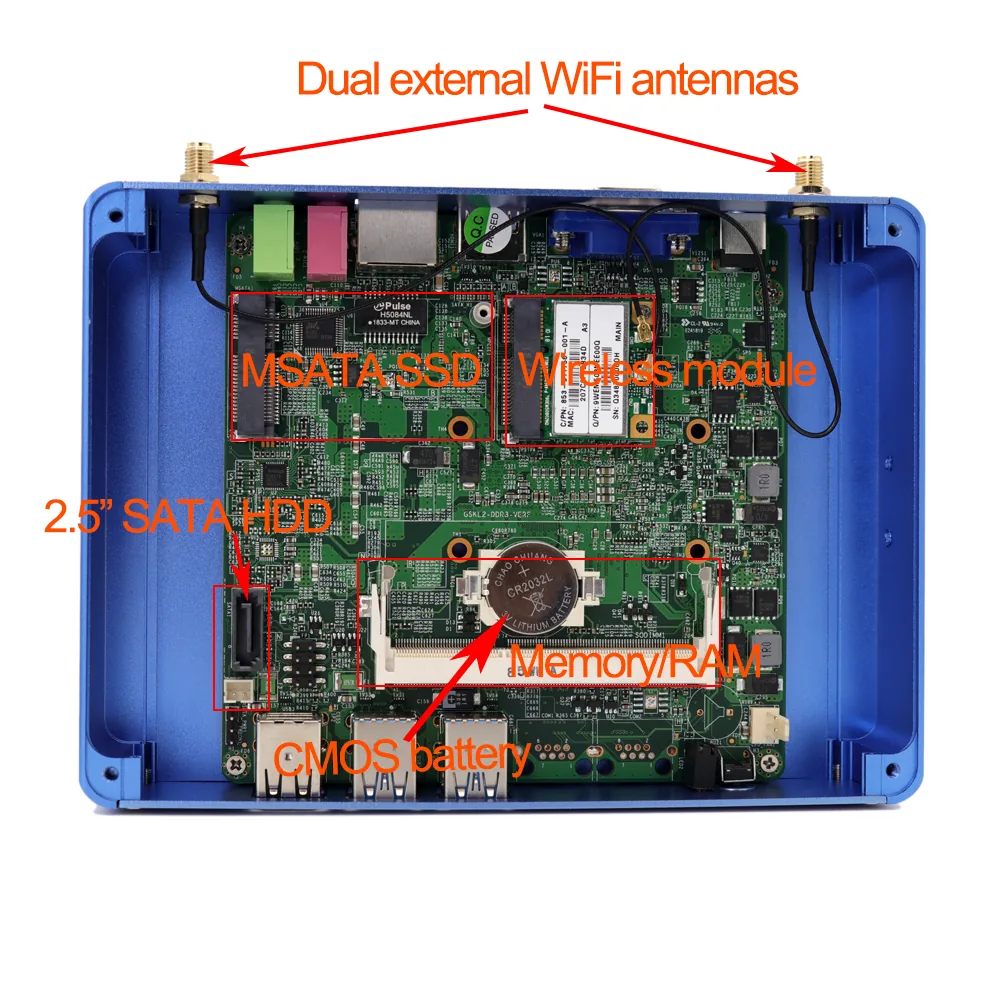

| Storage | 1 x mSATA 3.0 SSD; 1 x SATA 3.0 HDD or SSD |
| OS | Windows 7 / Windows 10 / Linux |
| Network | 1 x Realtek RTL8168/8111/8112 Gigabit LAN |
| Wi-Fi | 1 x Mini PCIe half-size slot |
| Cooling | Fanless |
| Dimensions | 173 x 127 x 39 mm |

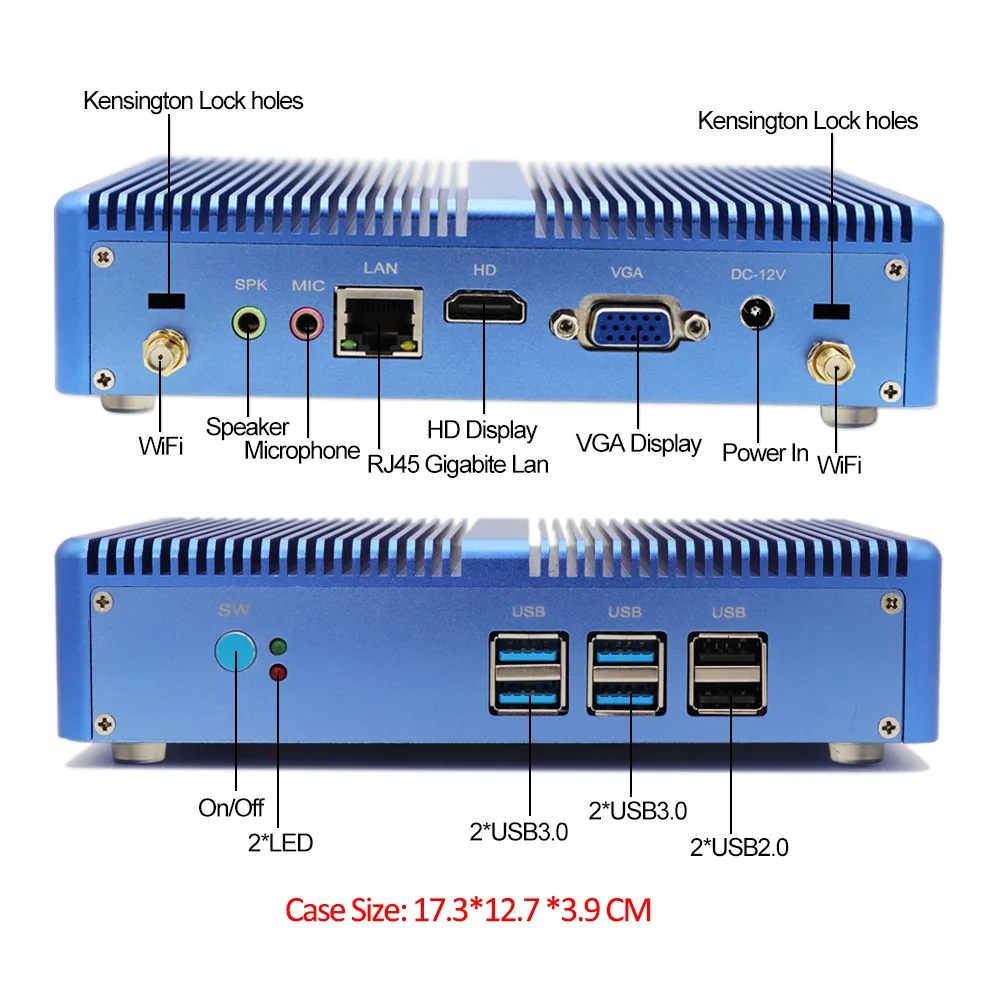

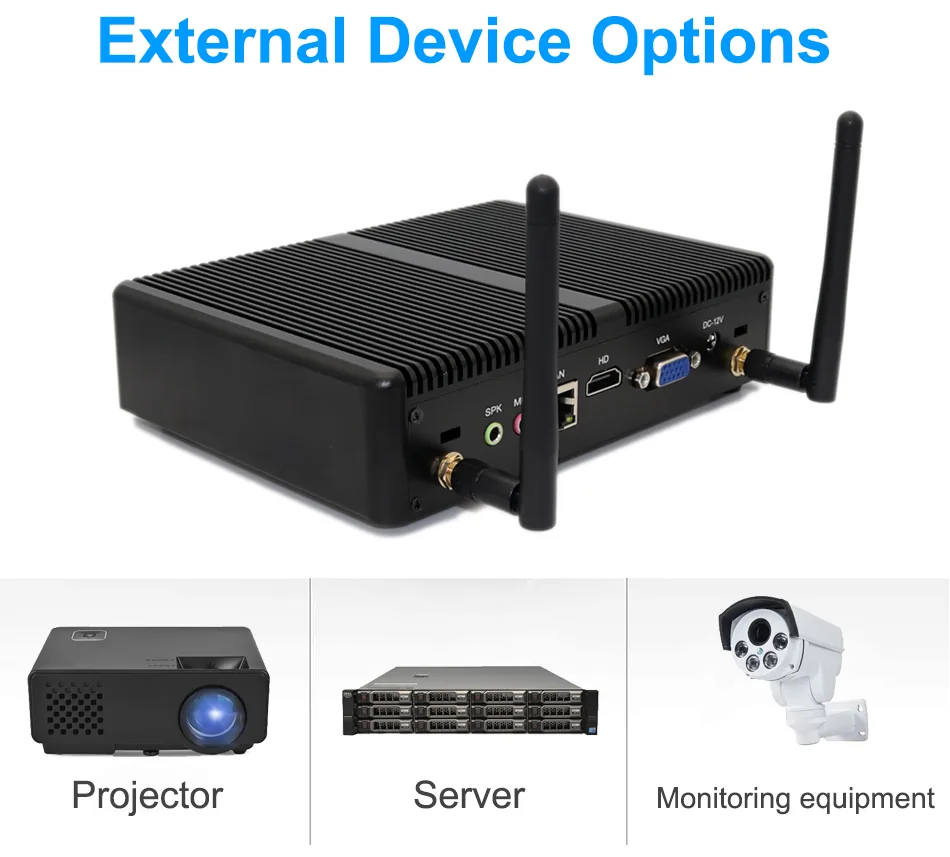

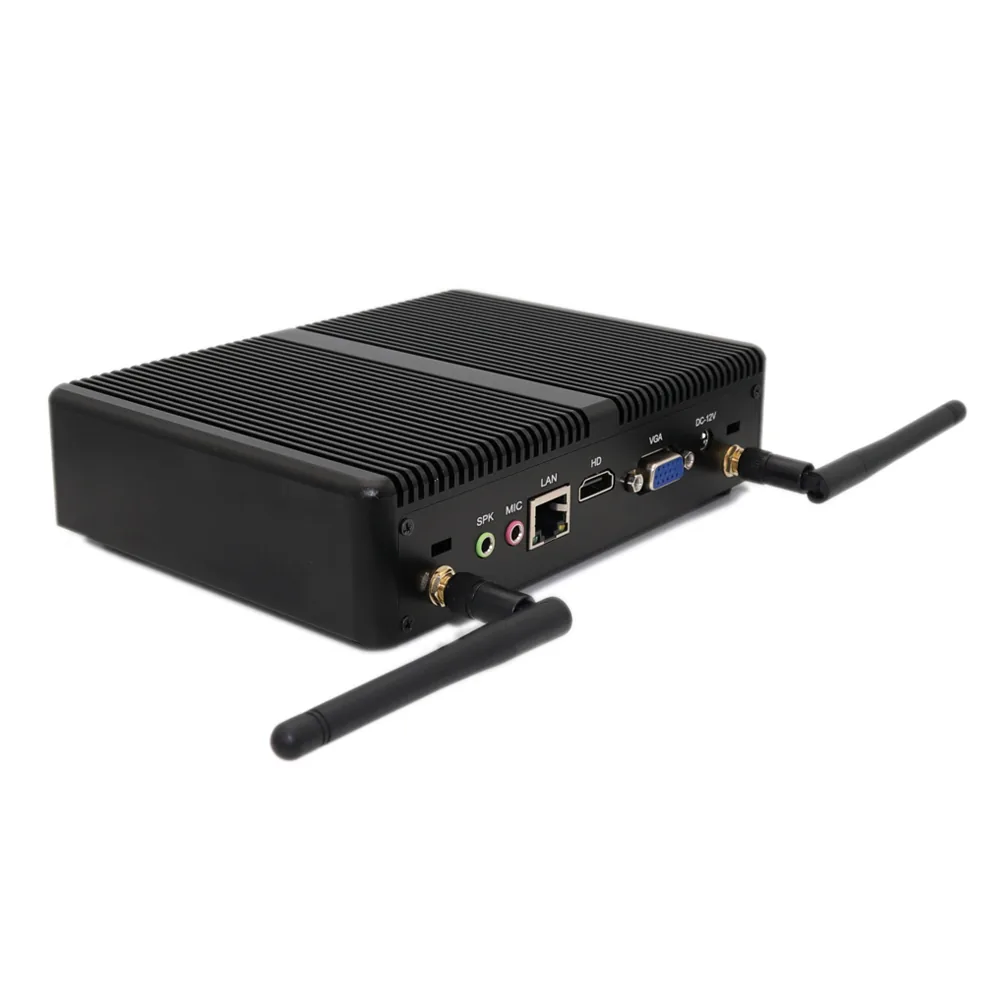

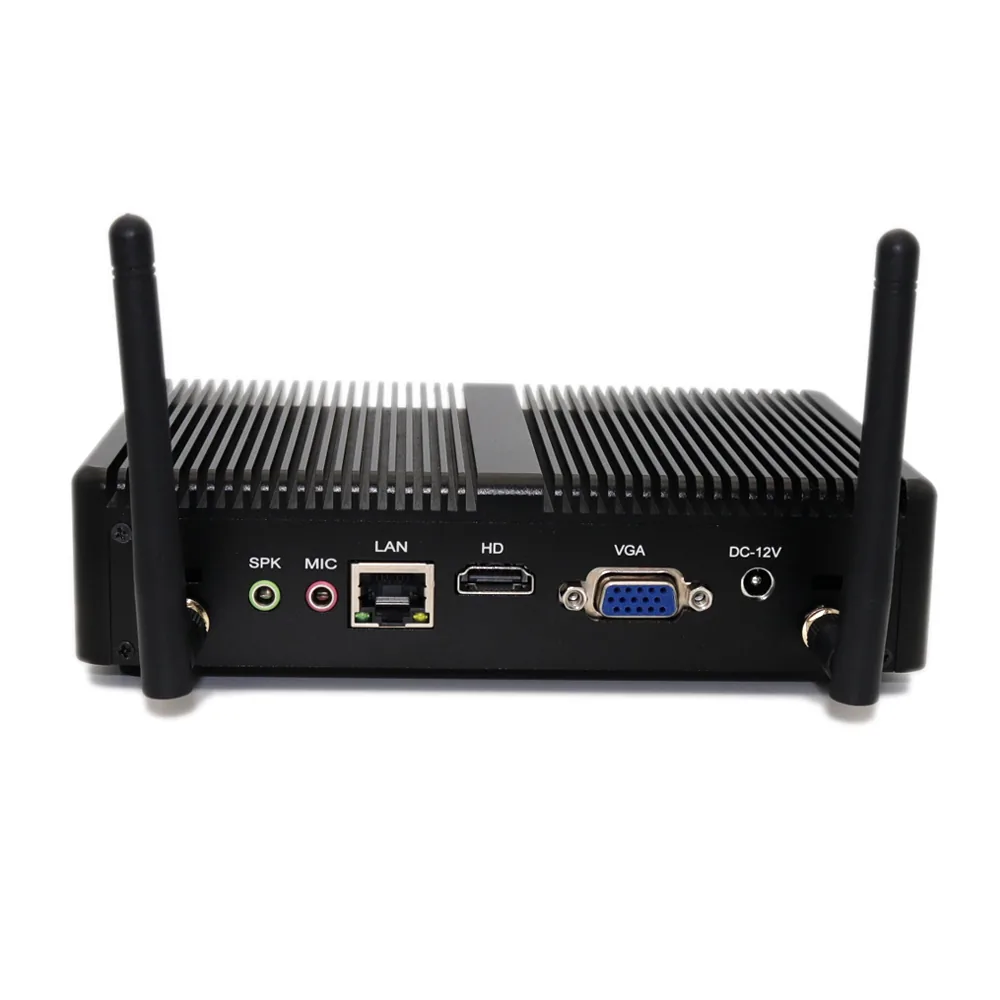

| I/O | 12V DC; 2 x USB 2.0; 4 x USB 3.0; VGA; HDMI 1.4; RJ45; MIC; SPK |

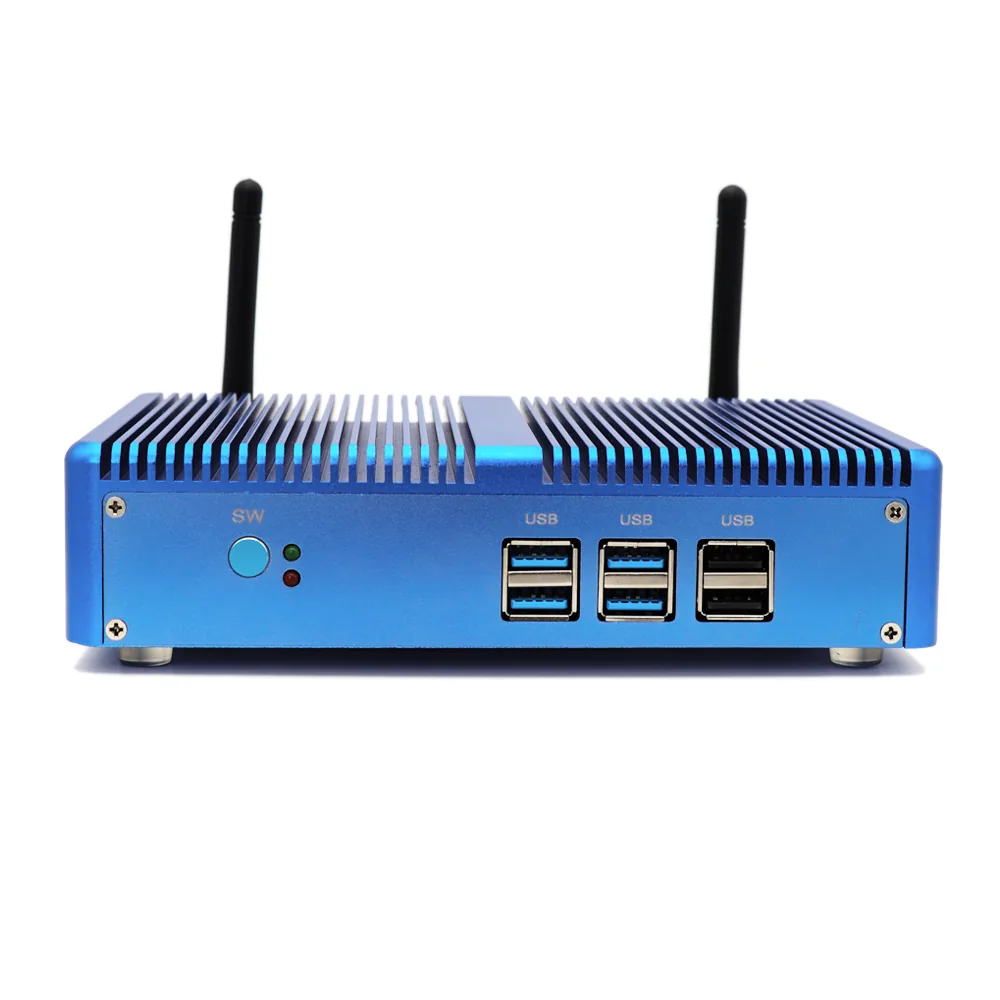

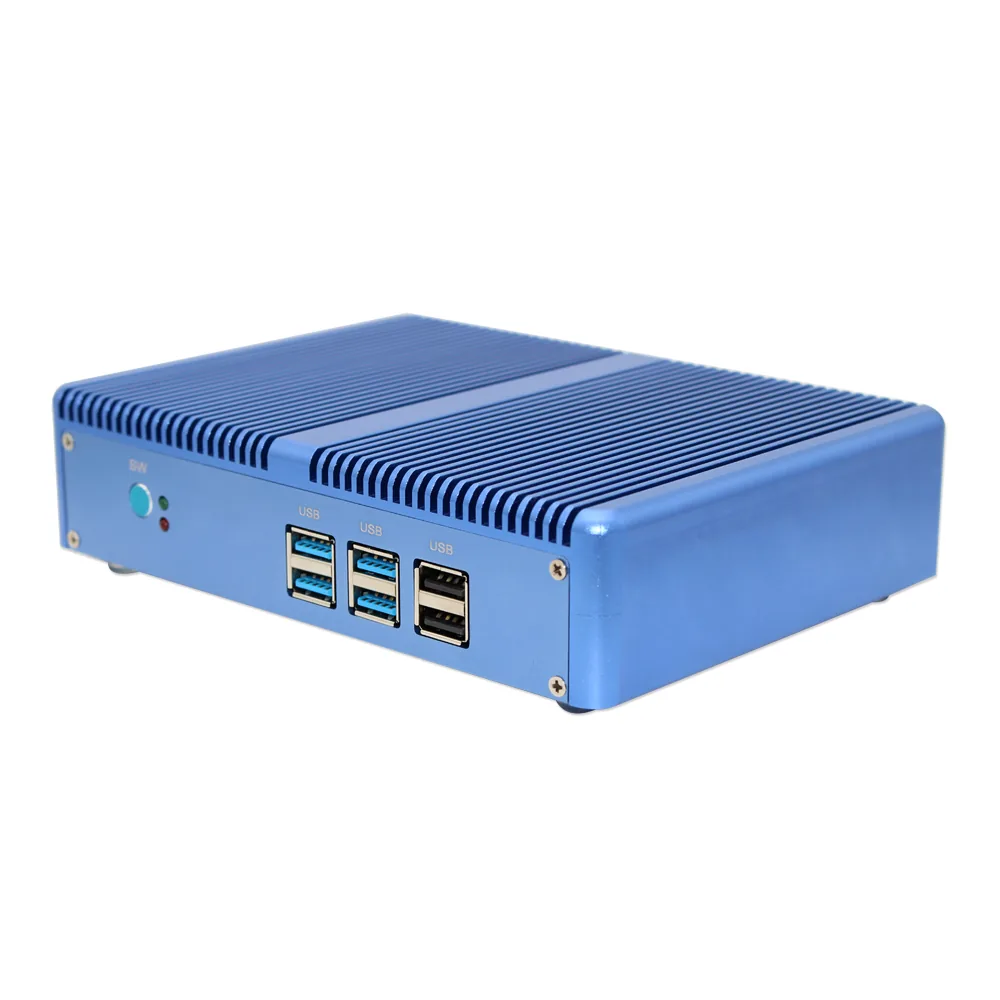

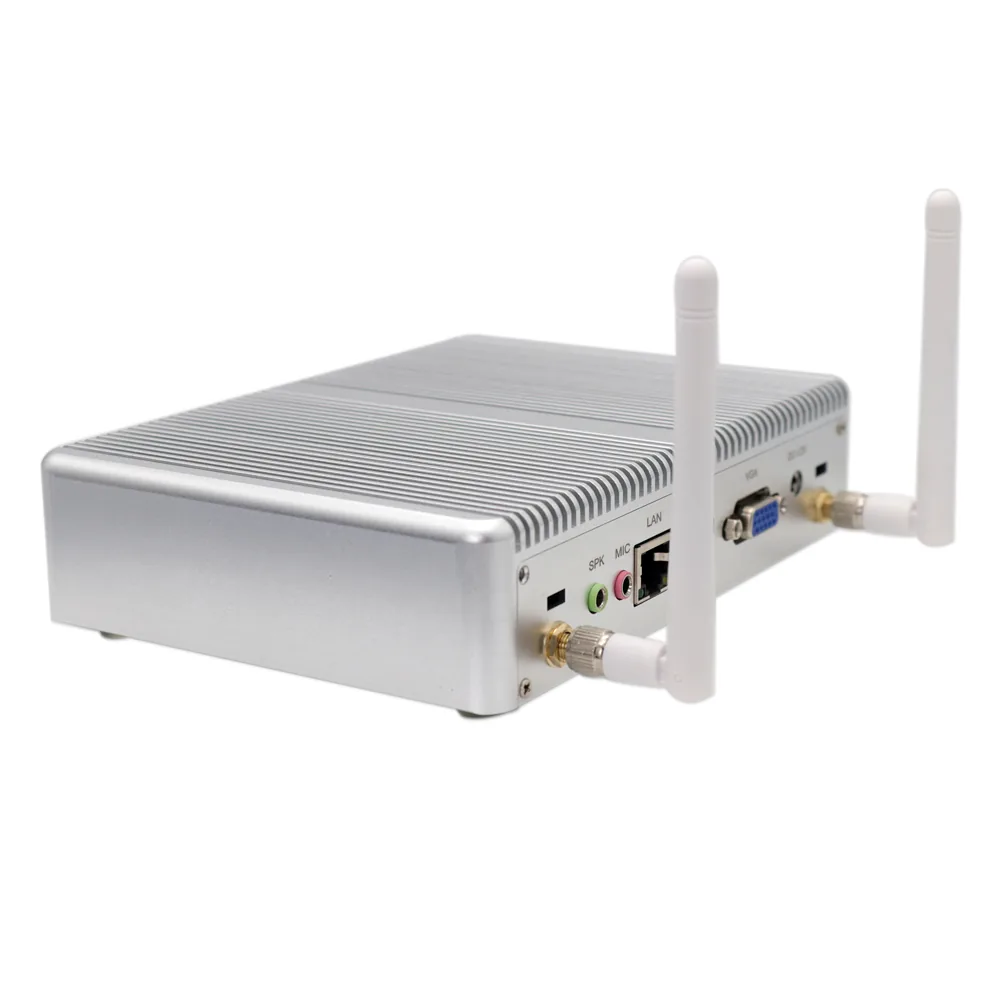

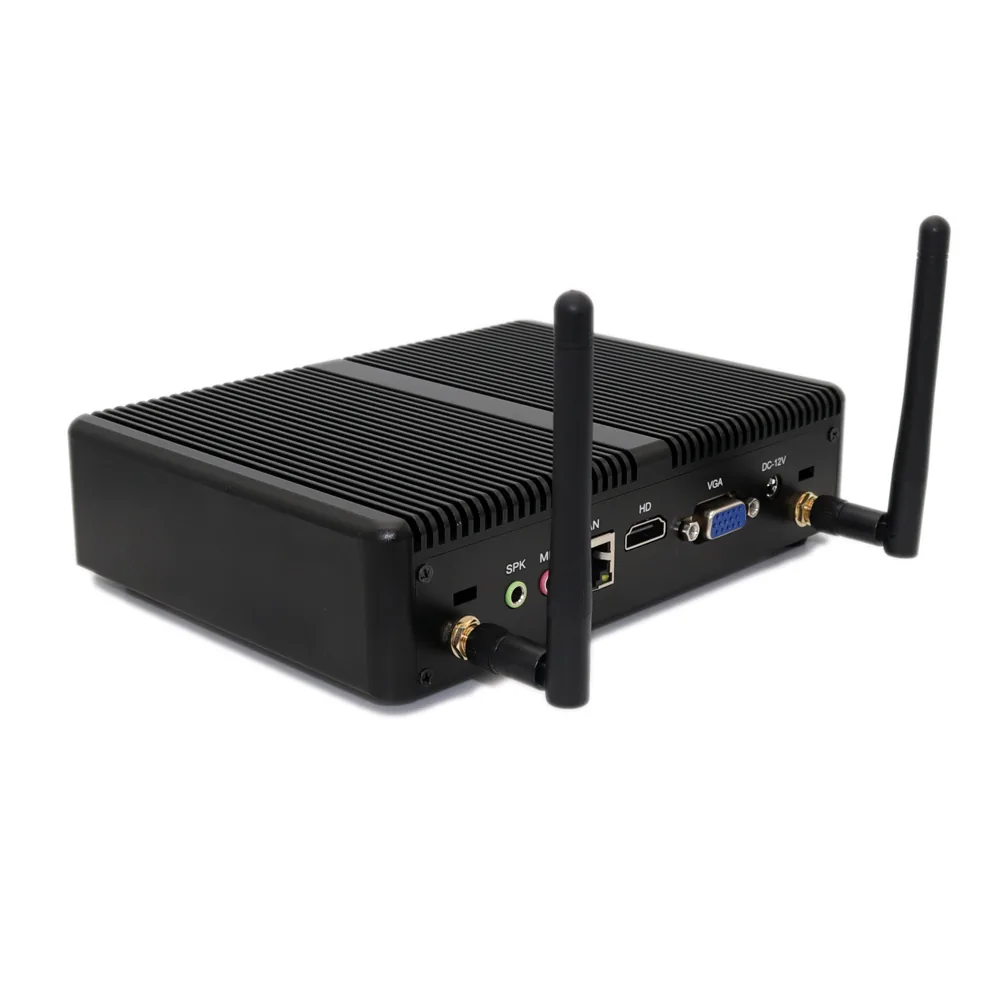

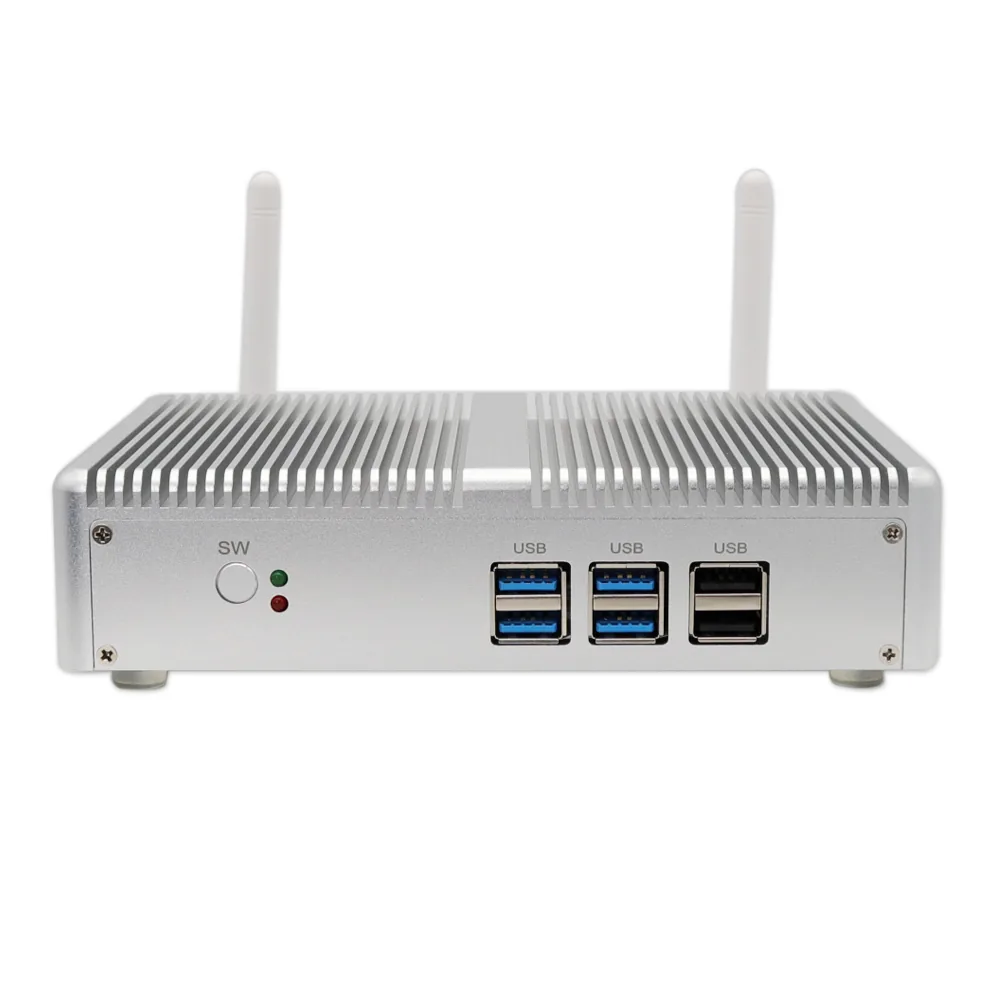

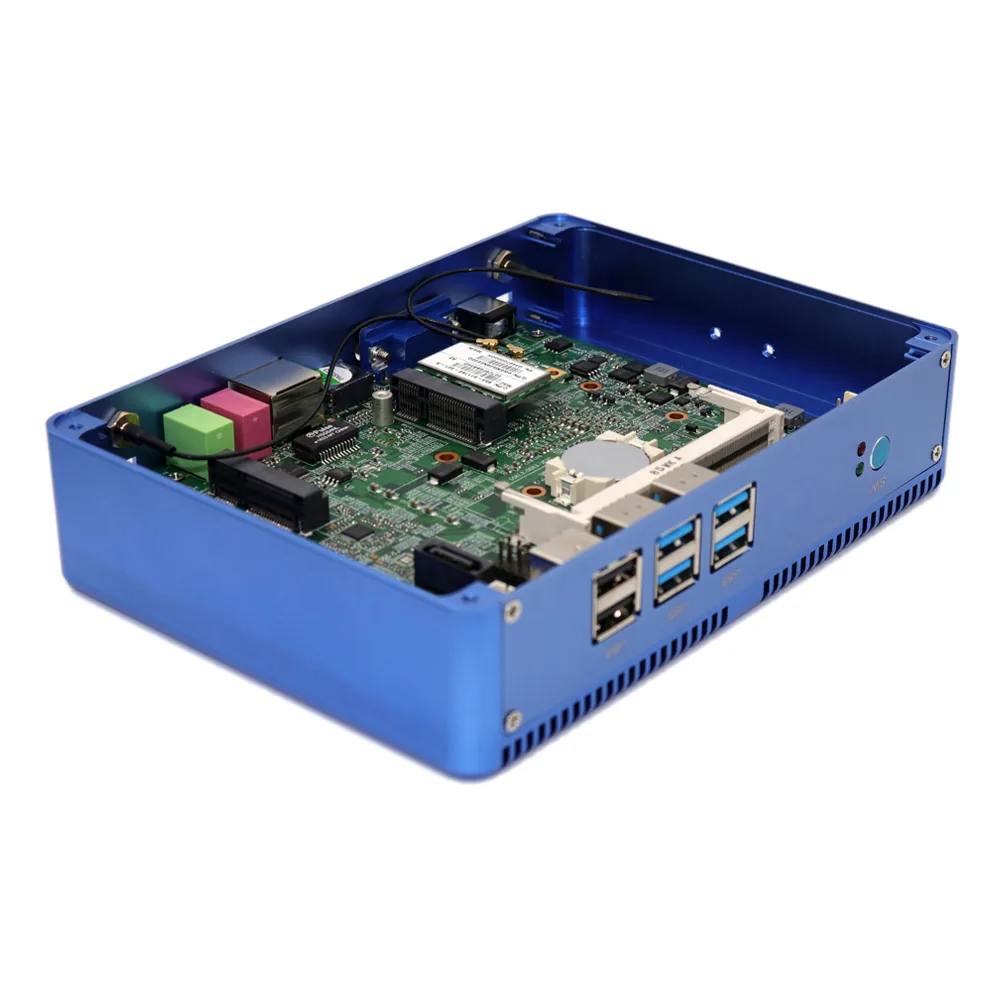

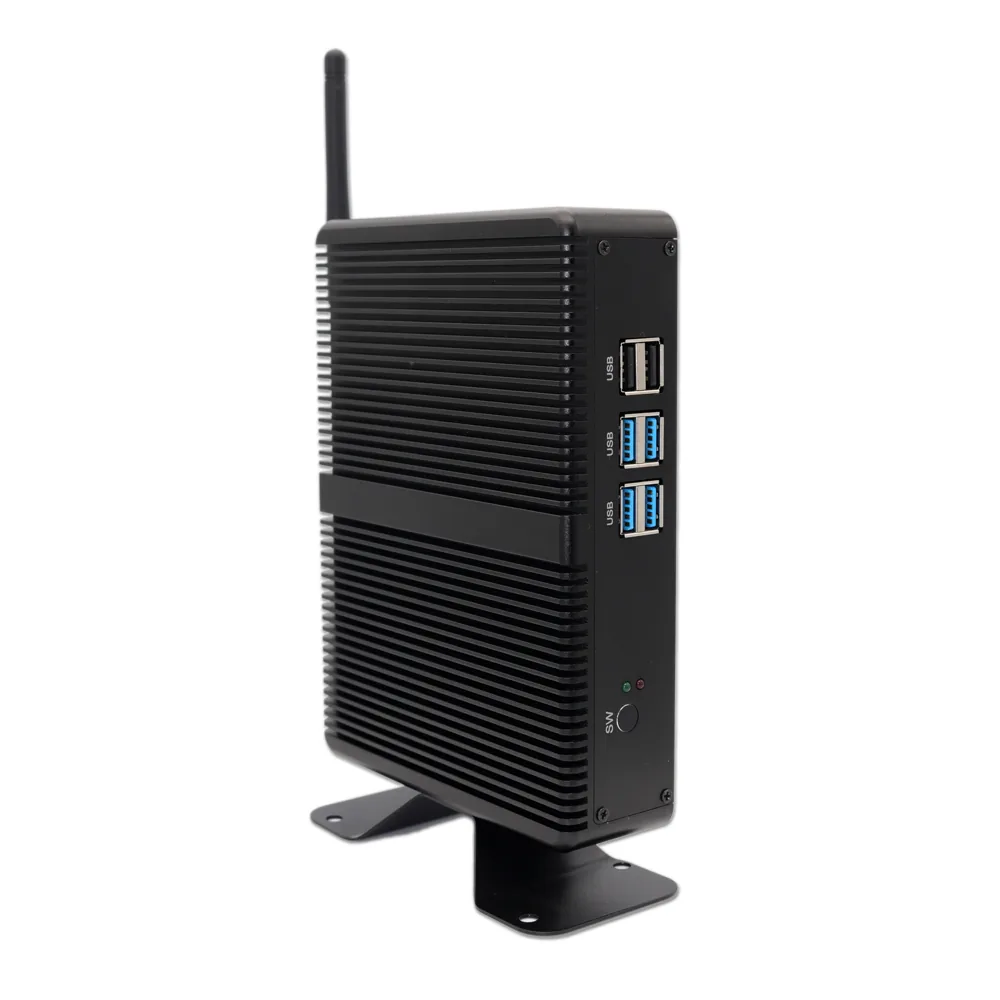

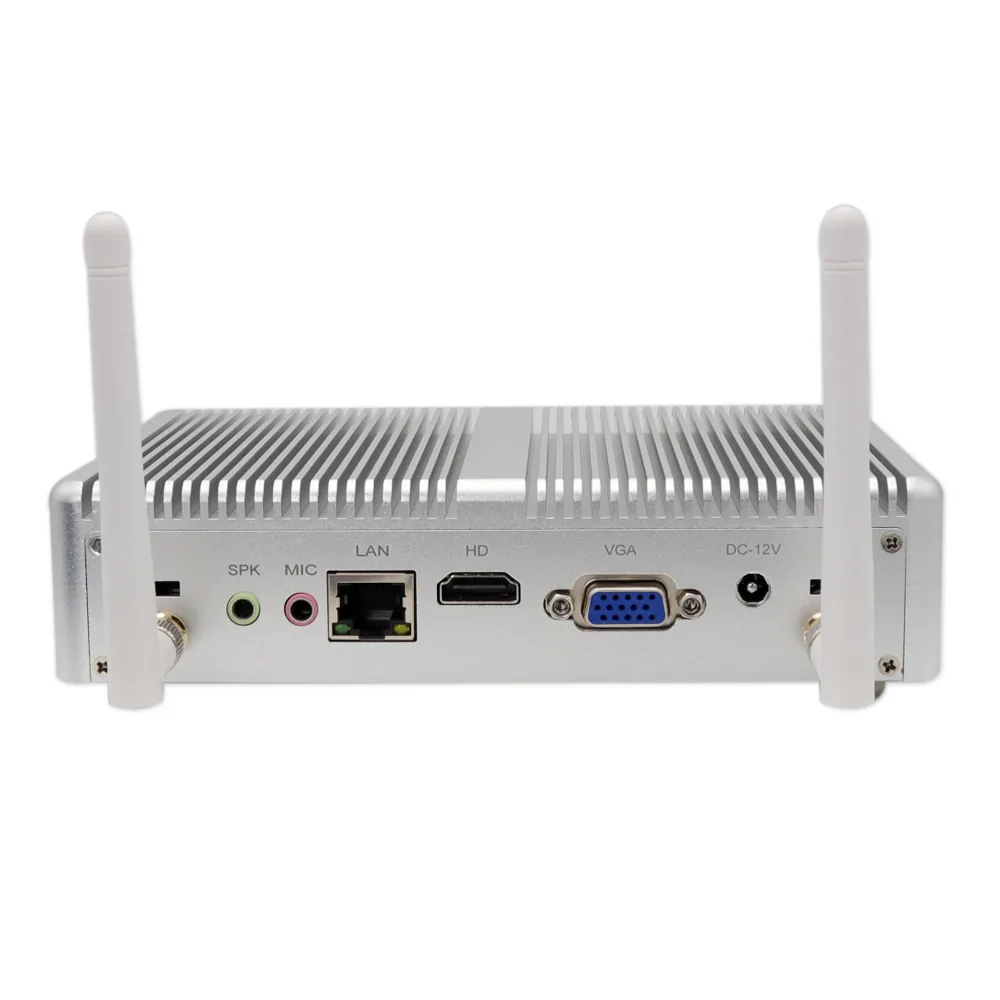

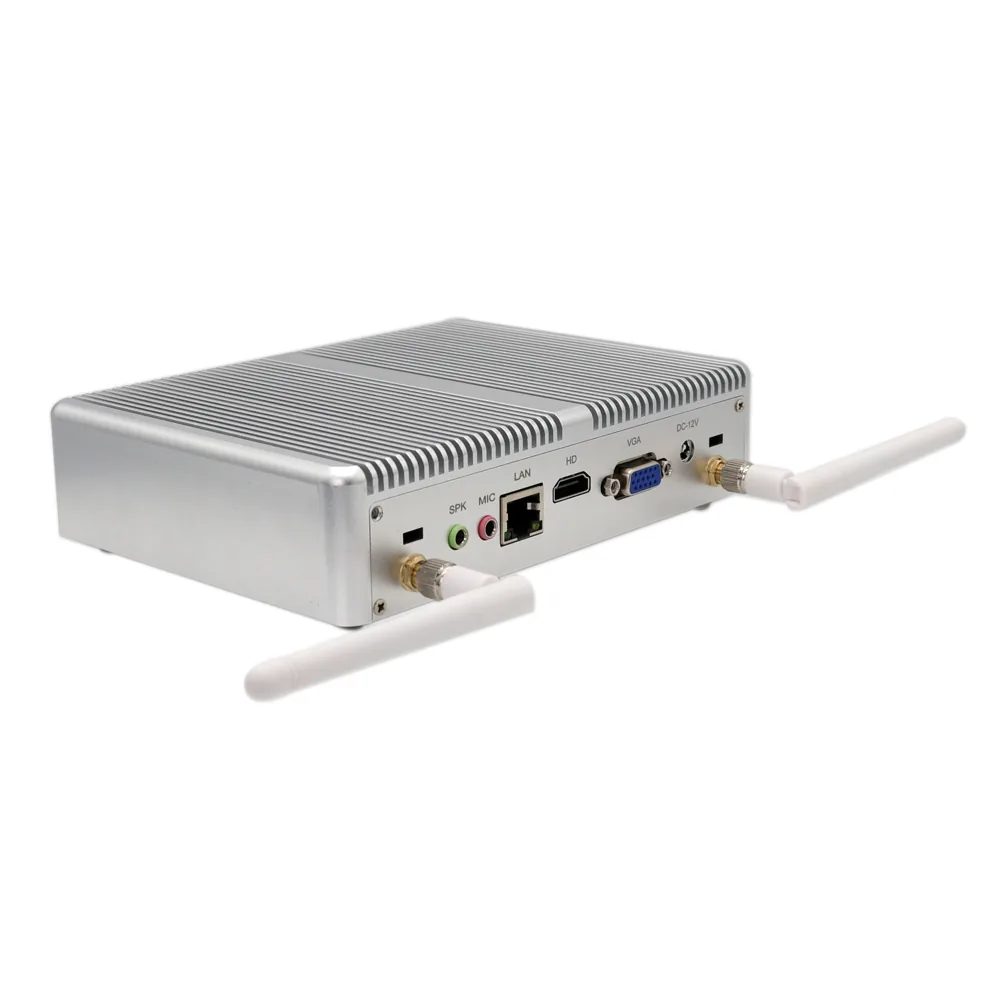

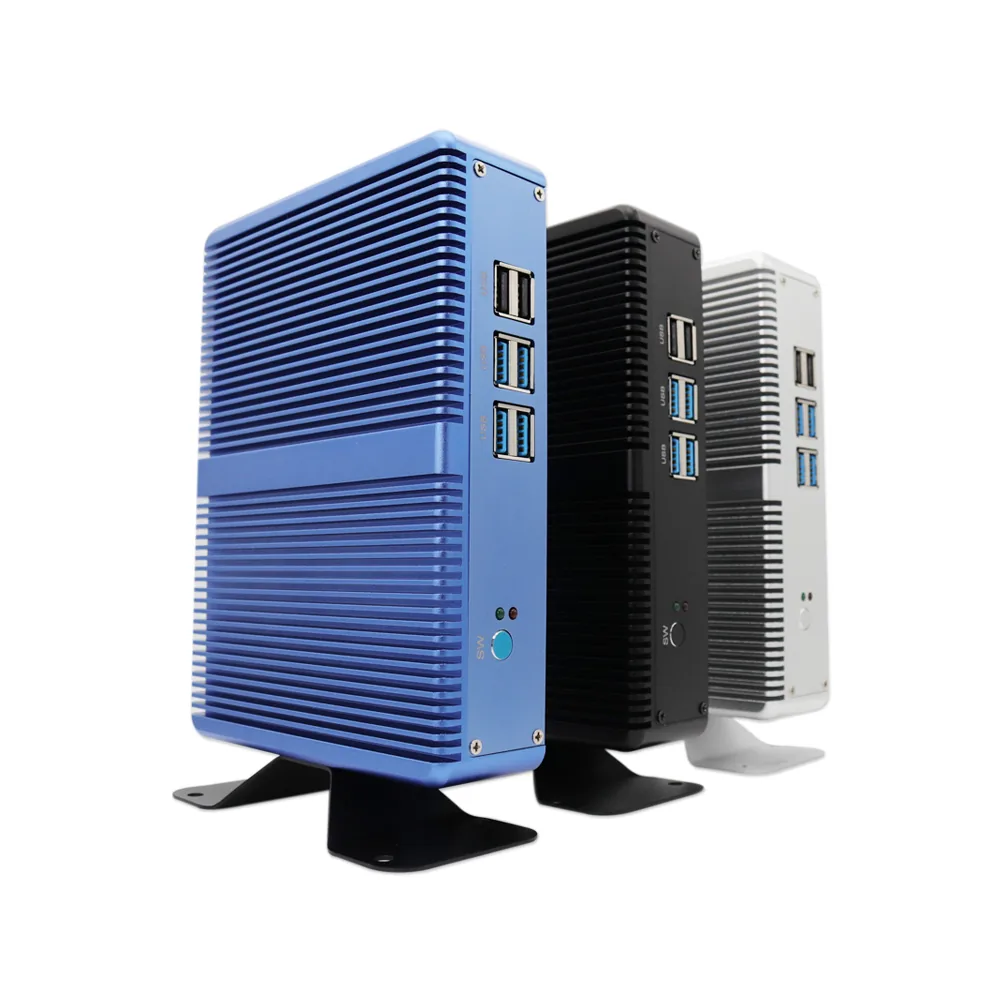

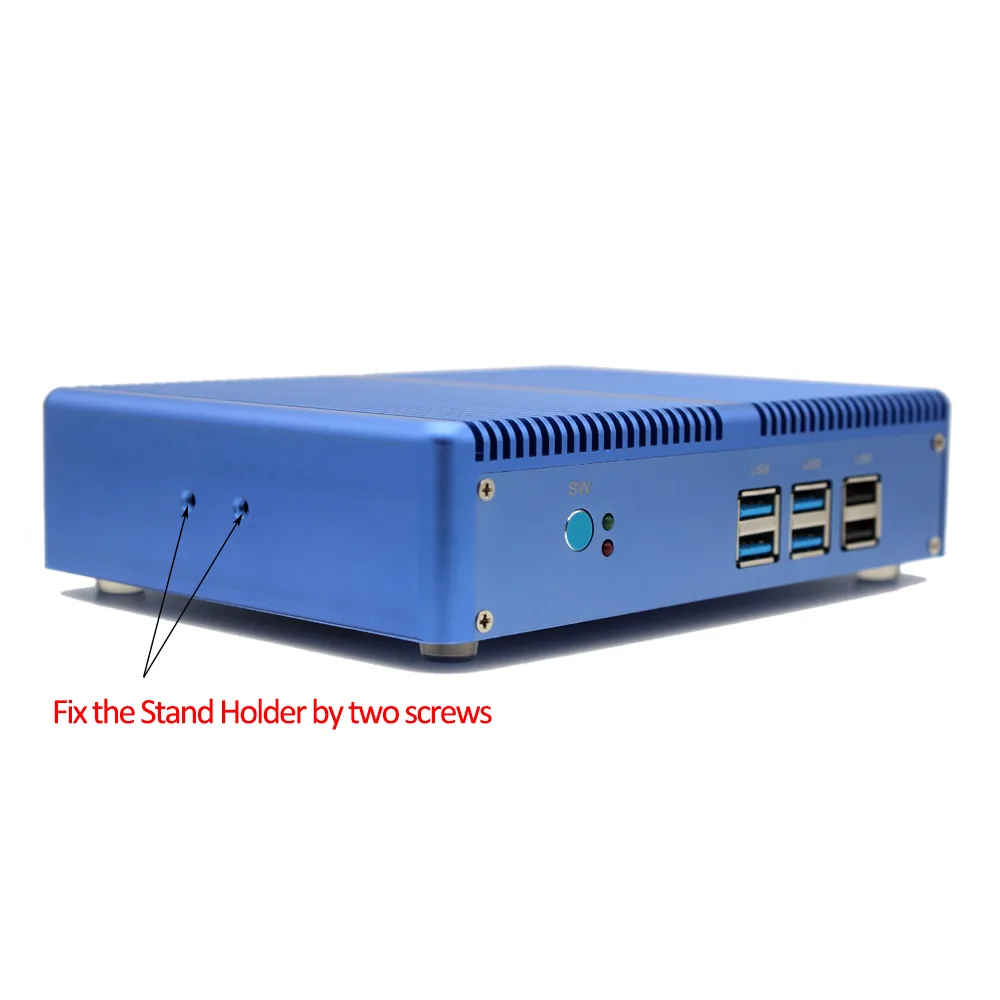

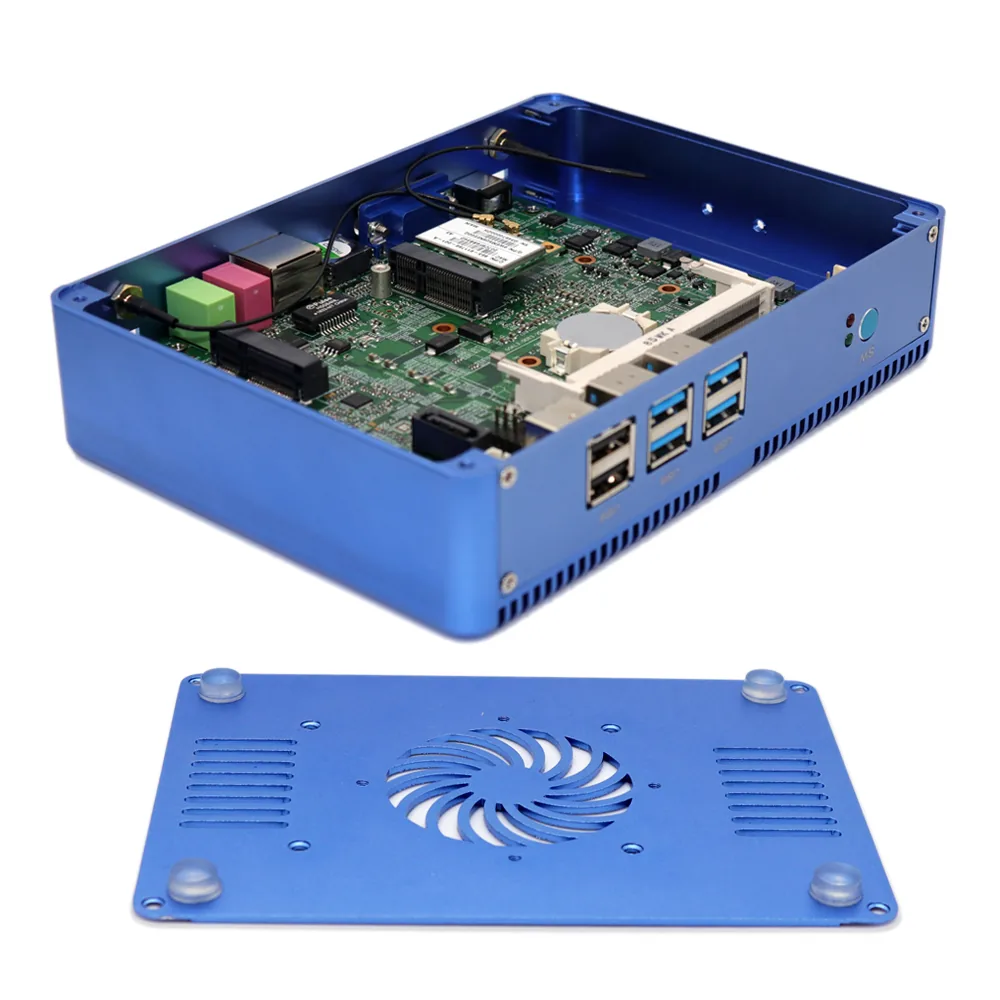

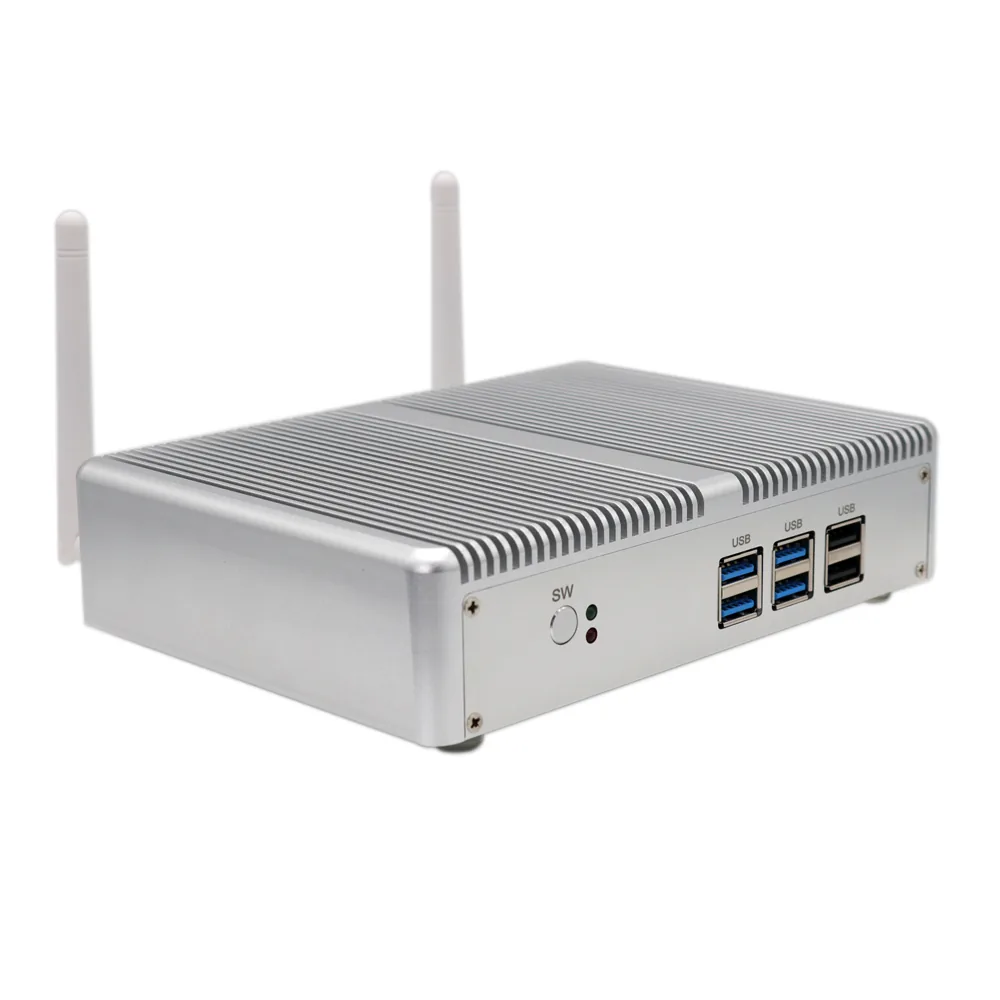

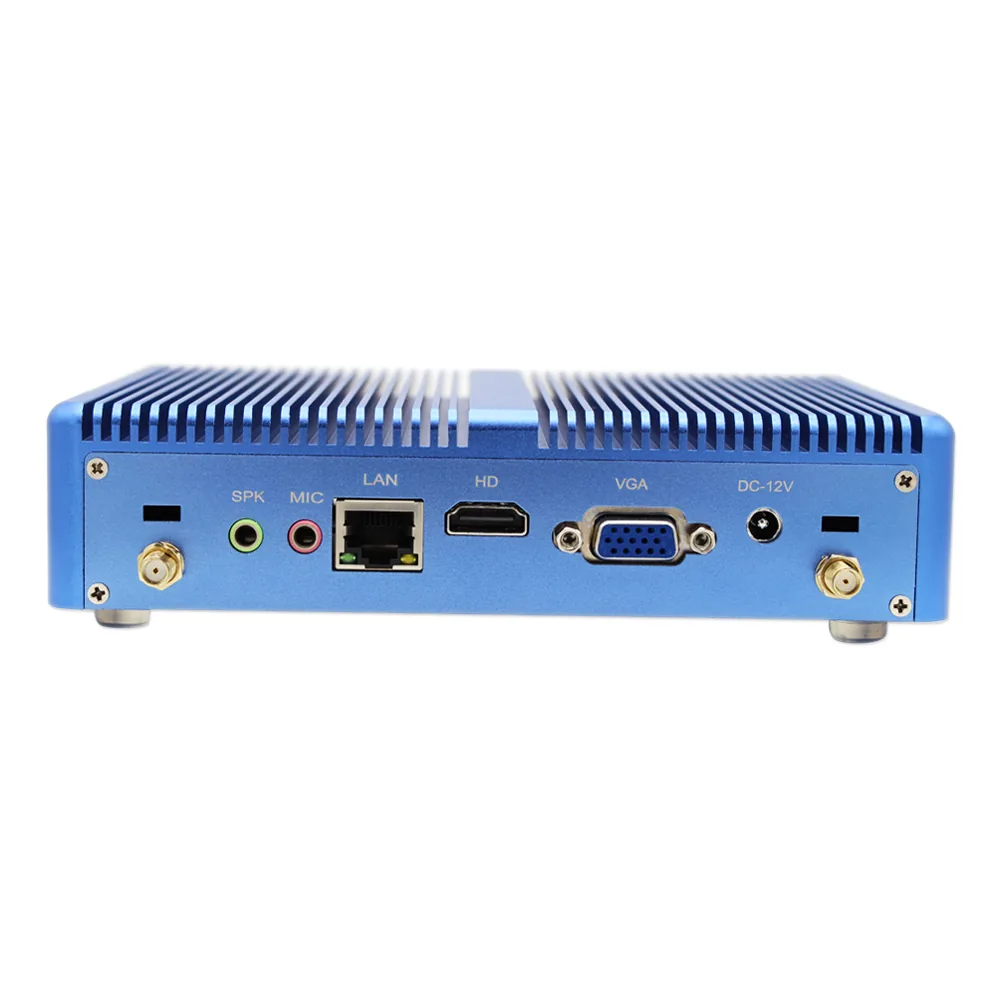

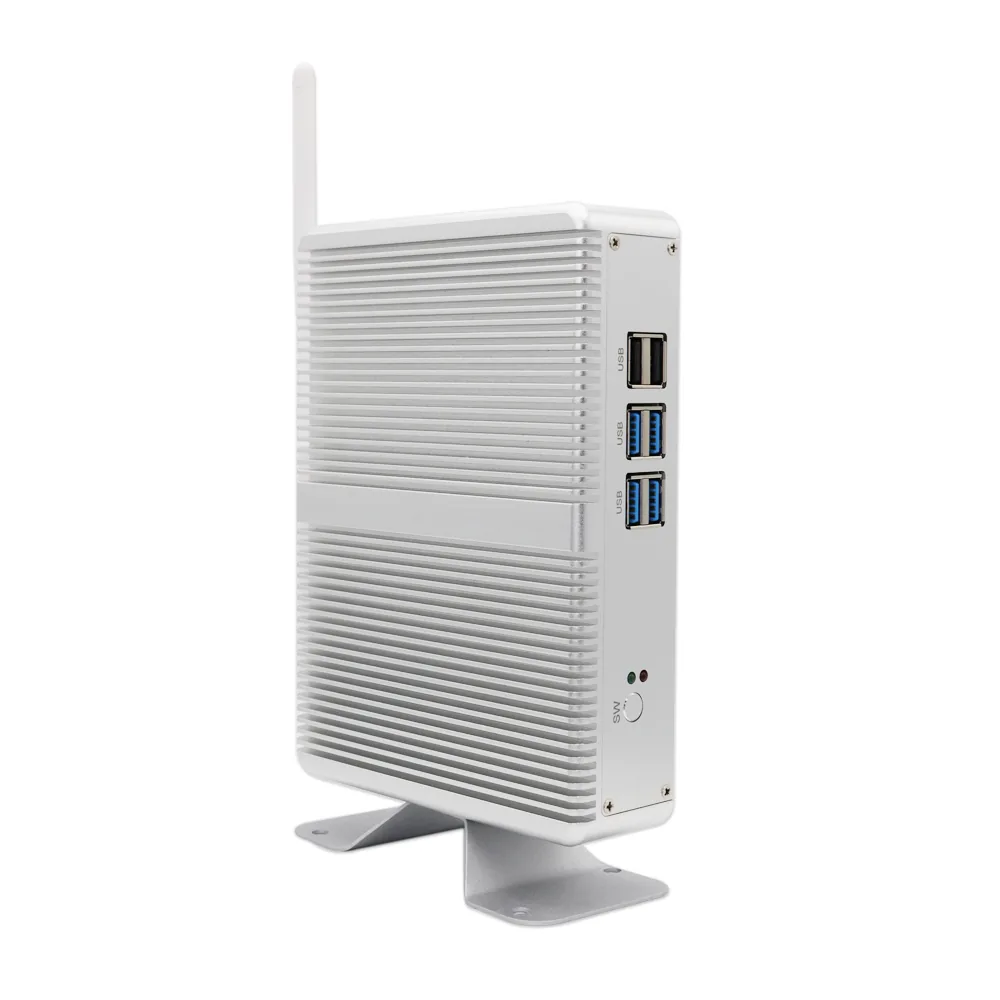

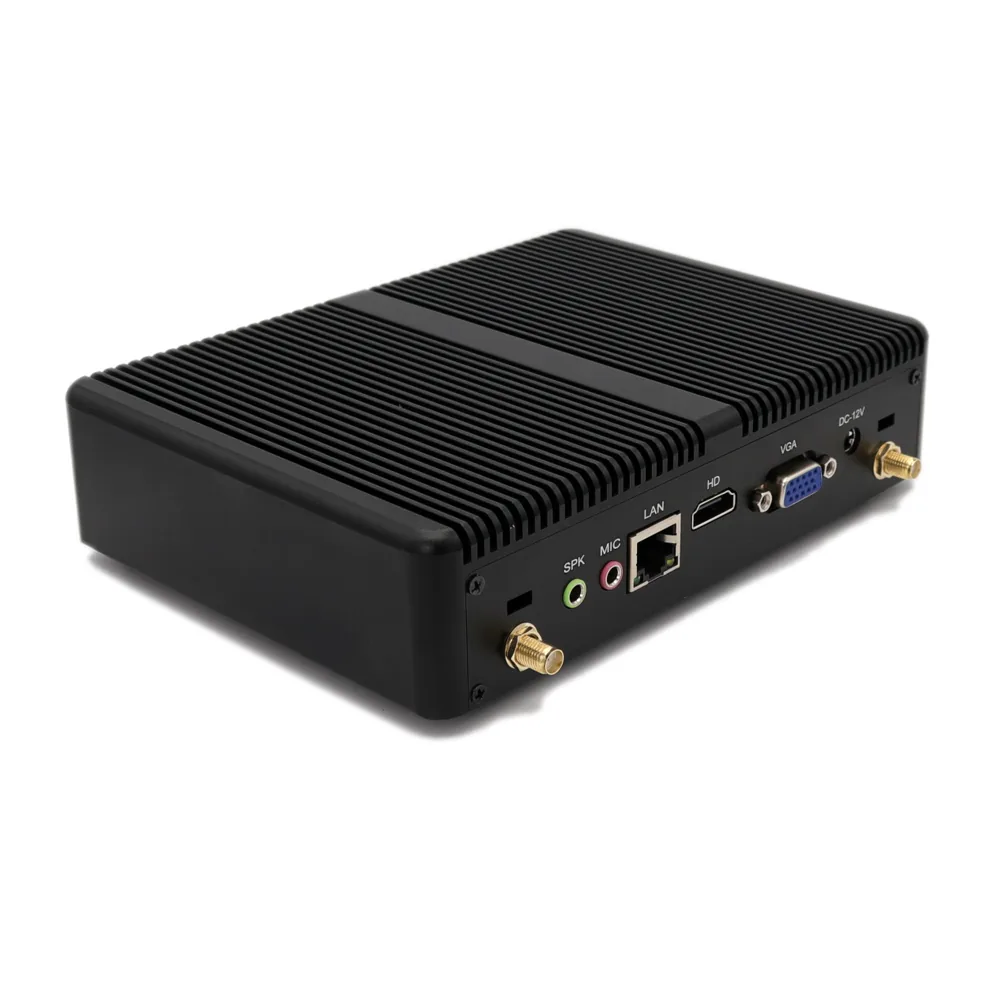

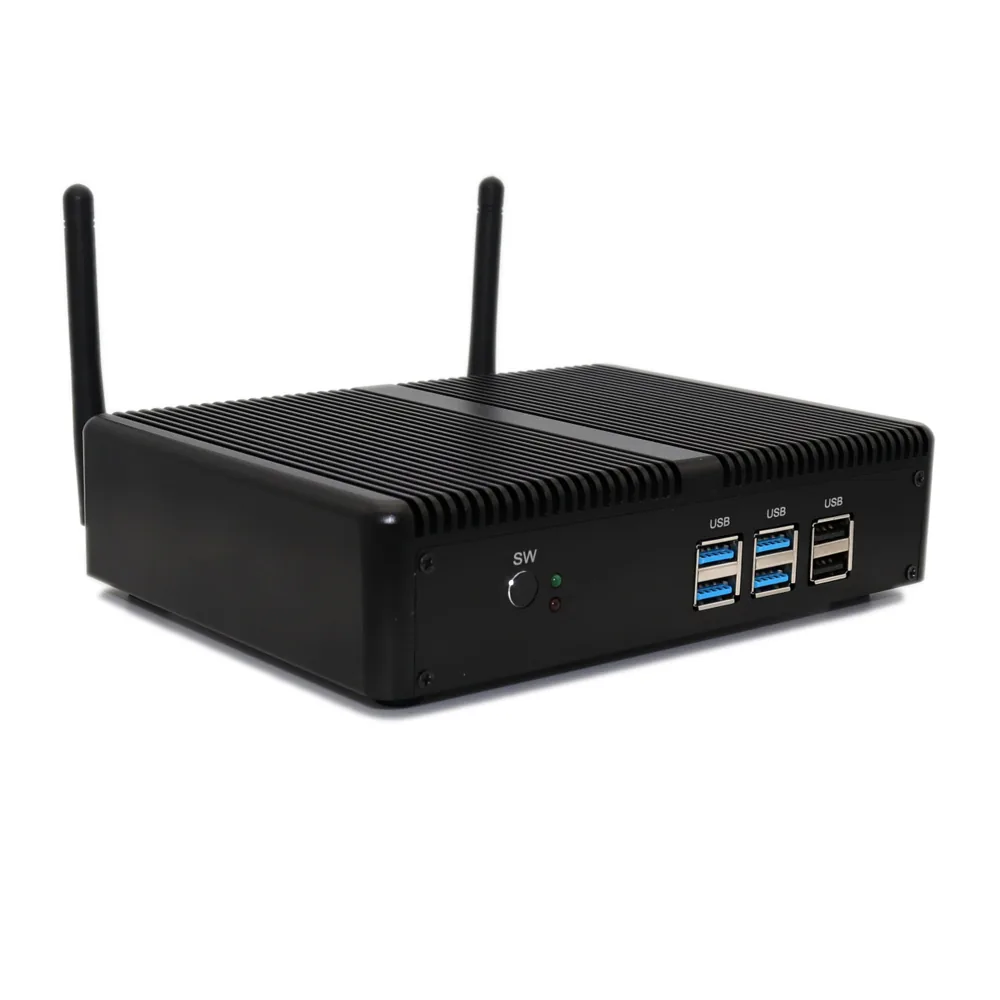

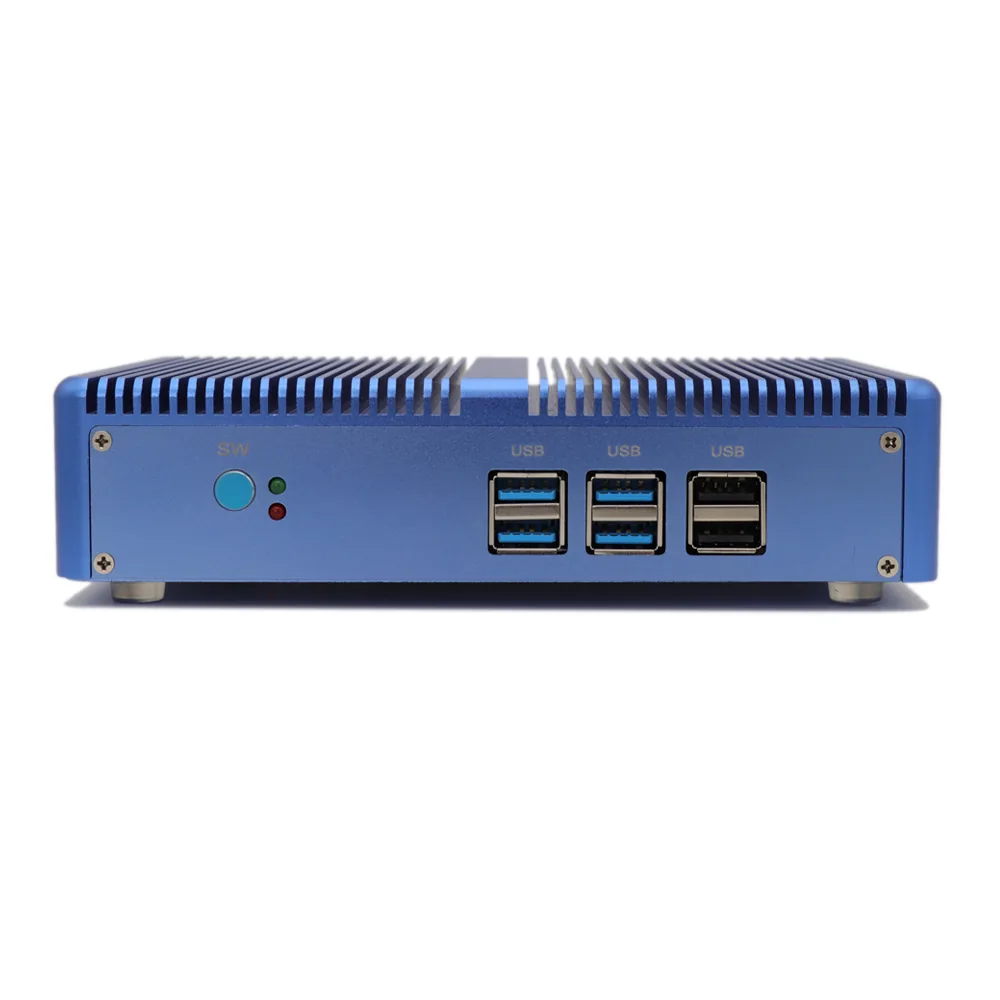

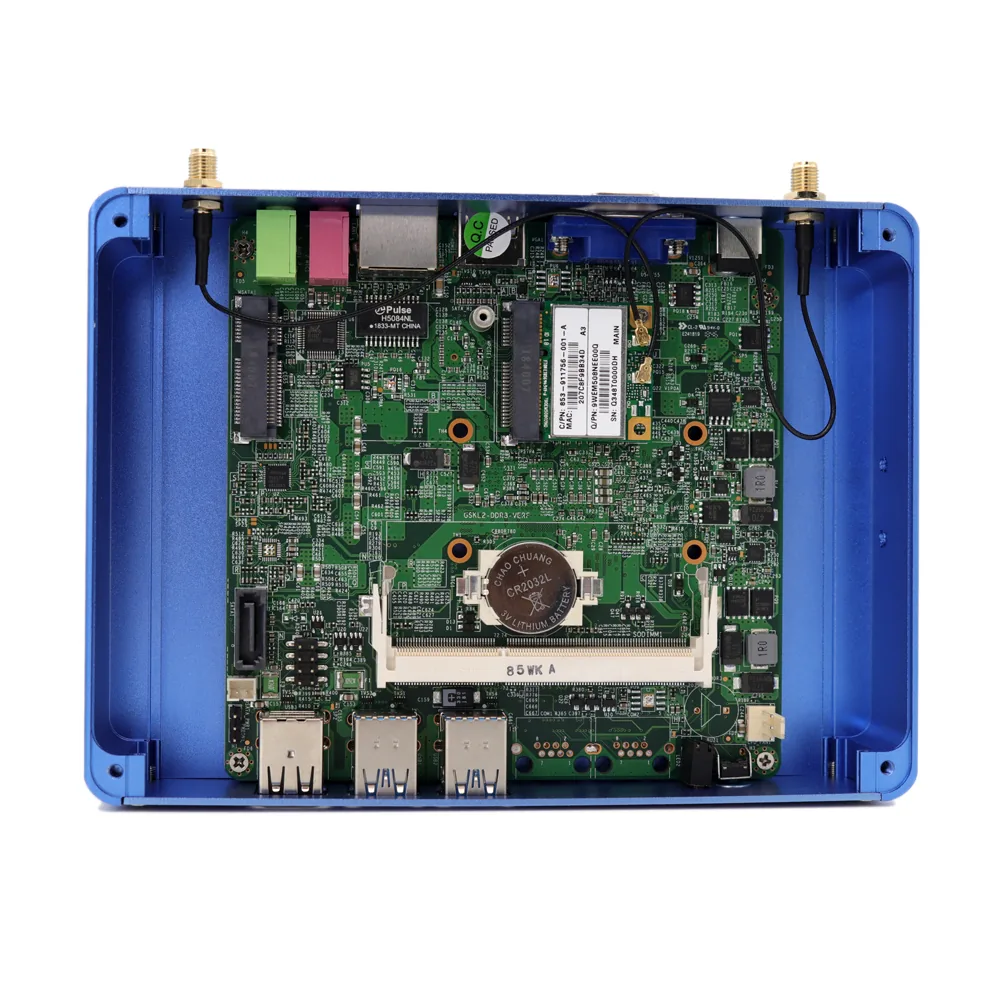

Product gallery
Product and interface views.

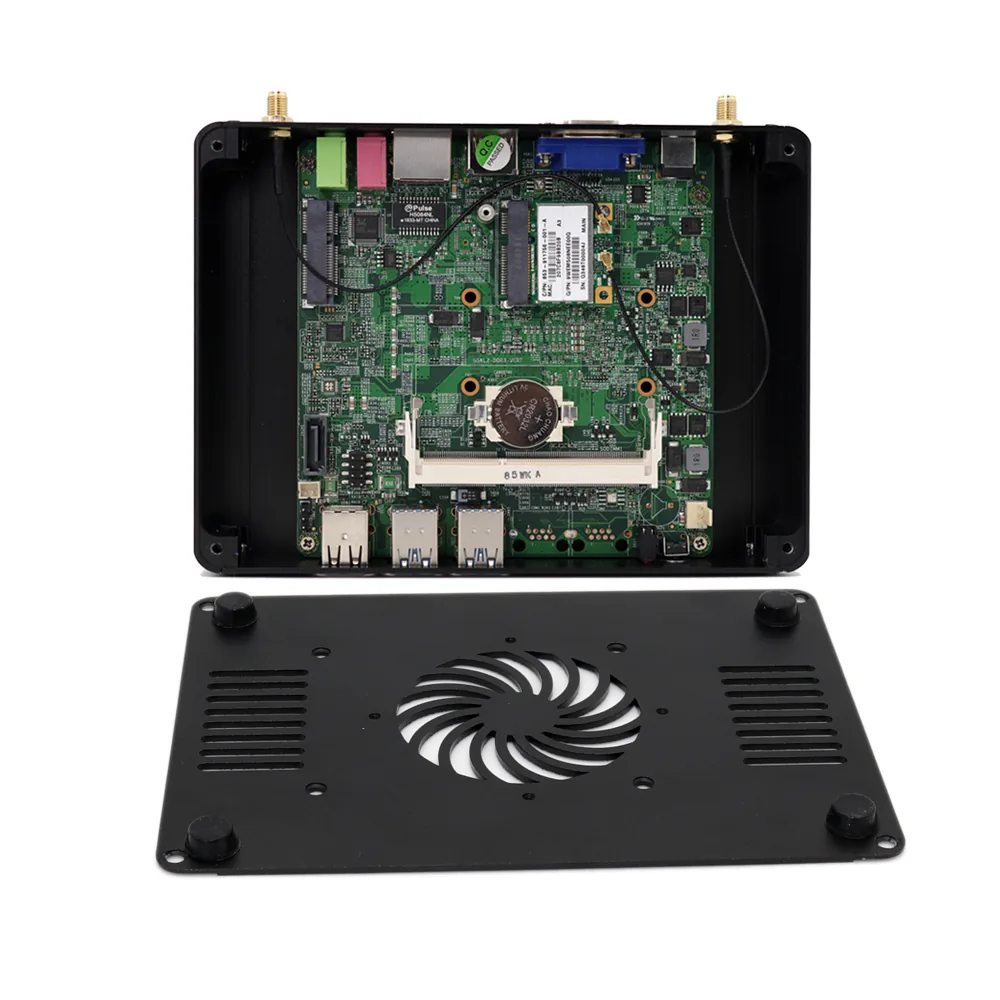

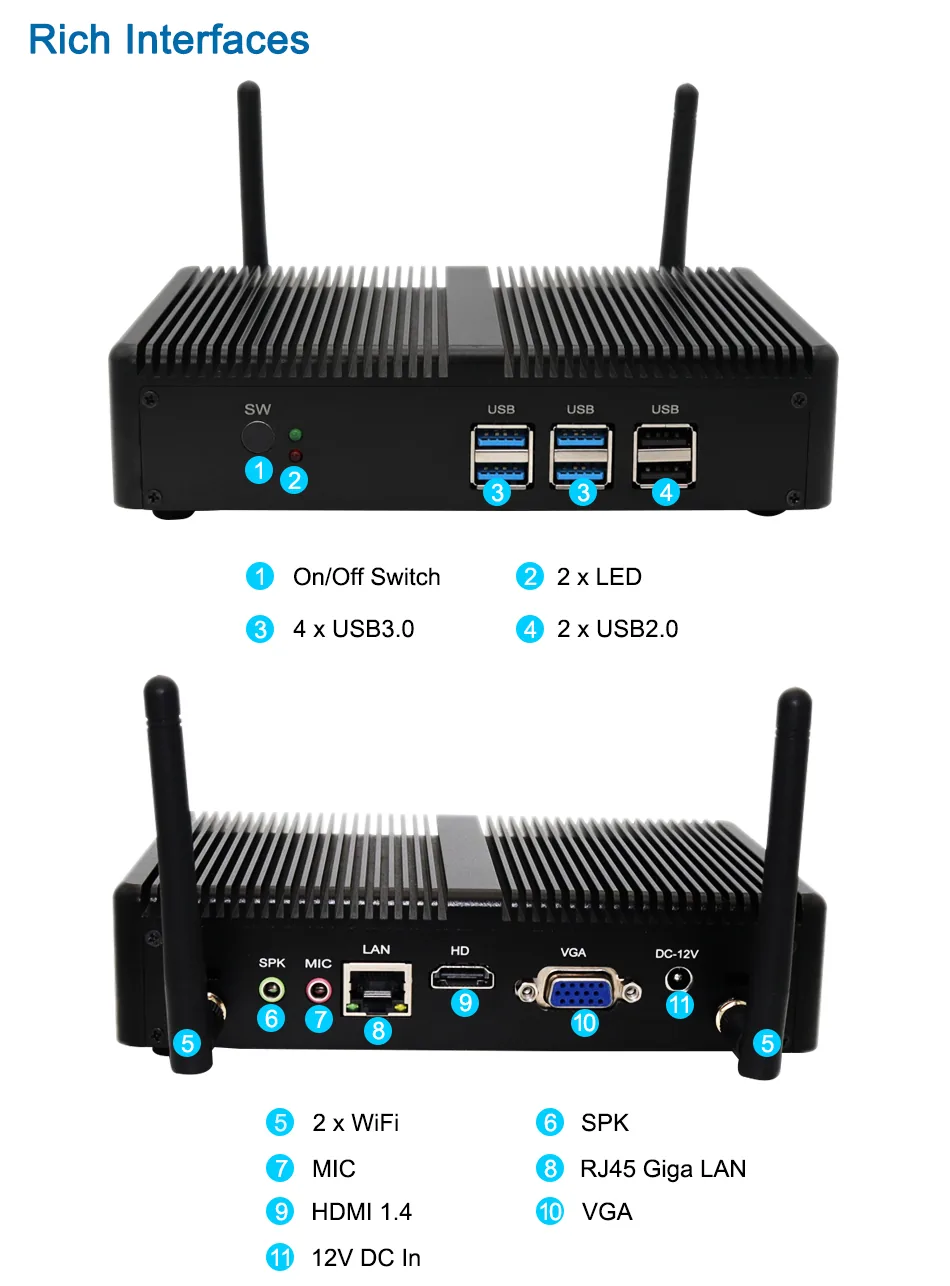

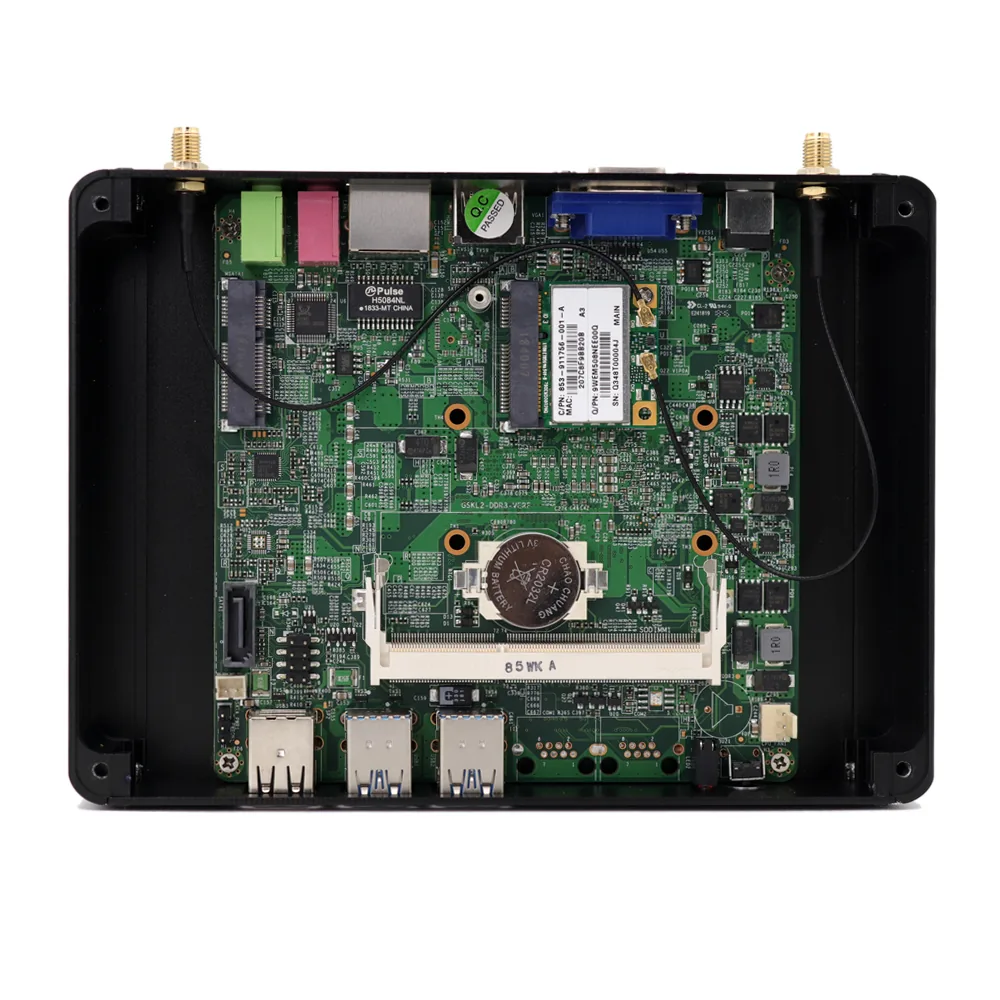

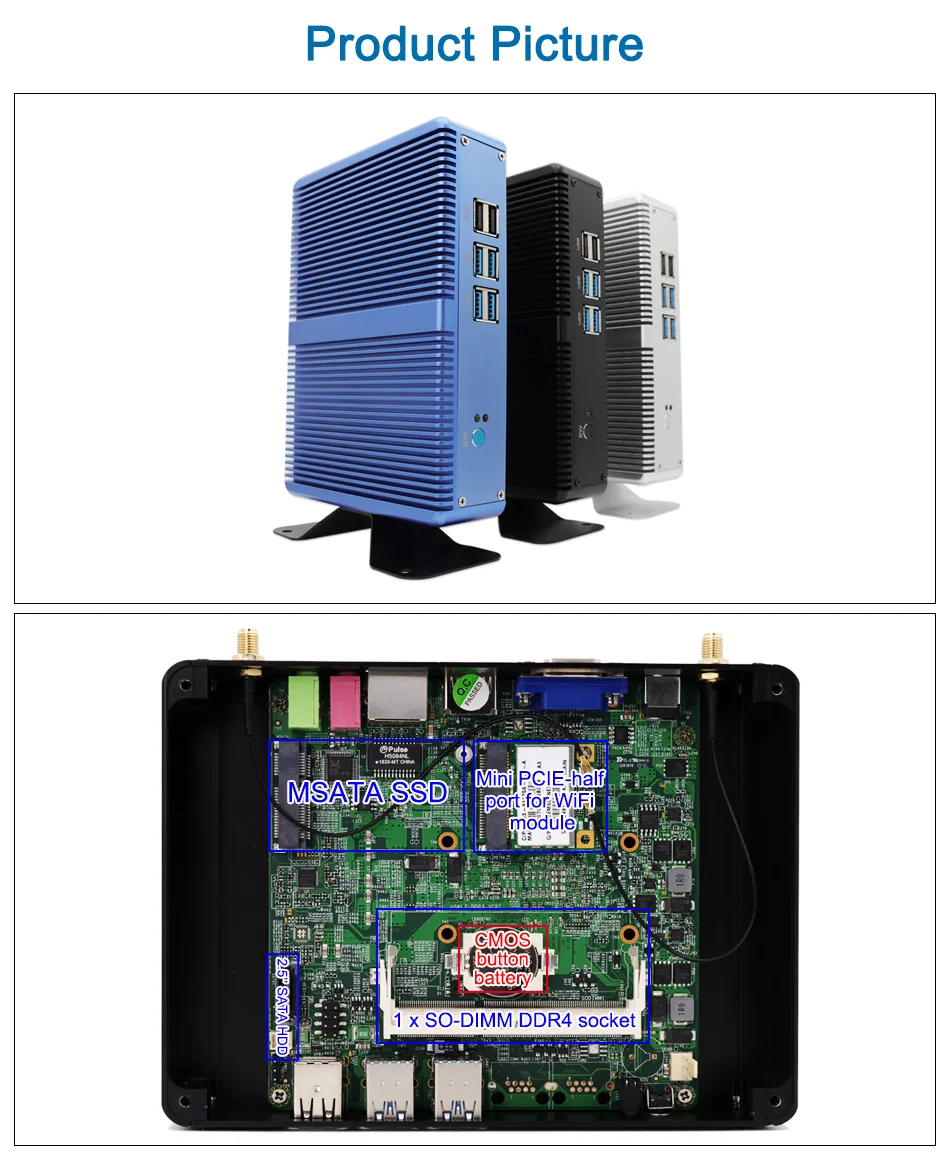

Detailed presentation
Product details and interface information.
Applications
Typical deployment environments.
- Enterprise office
- Soft routing
- Hotel and restaurant
- School multimedia
Project inquiry
Discuss your hardware and deployment requirements.
Send the required CPU, memory, storage, network, serial-port, operating-system, and deployment quantity for a quotation.
Mini PC configuration and deployment
Configure the M3 Mini PC around the workload rather than a single model number. Consider processor performance, graphics requirements, memory capacity, storage layout, operating system, display outputs and network connectivity for the intended office, signage, monitoring or creative application.

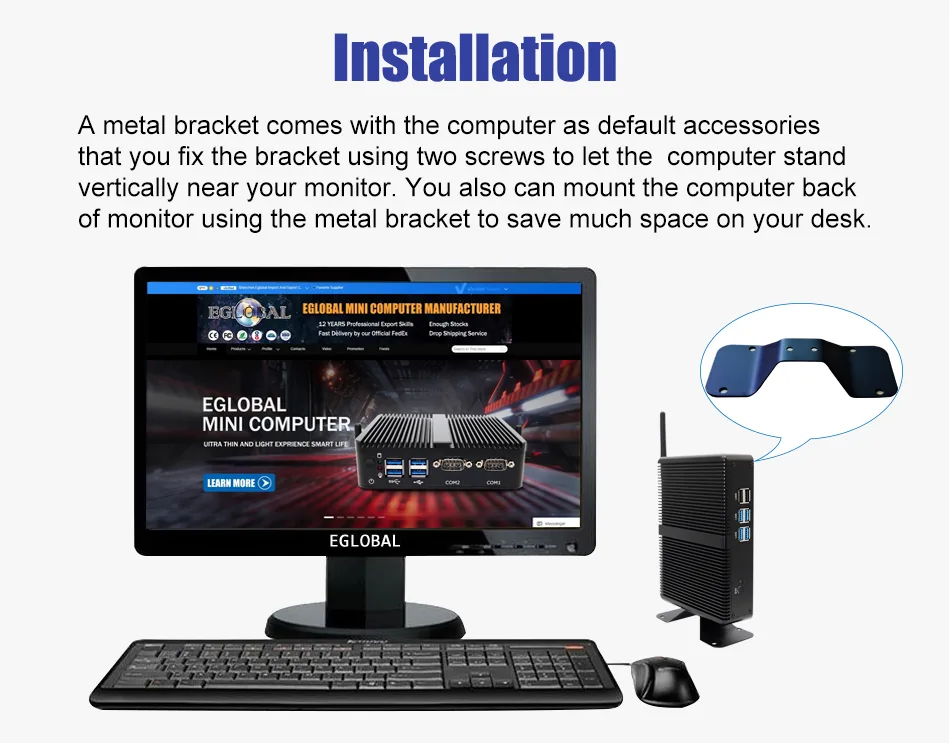

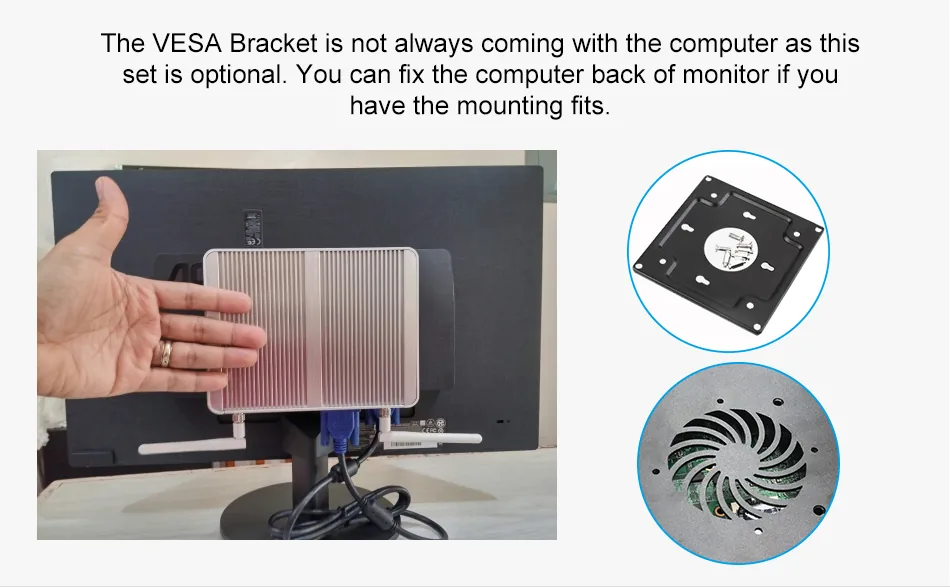

Deployment planning should also cover mounting, power, cable routing, remote management and operating conditions. If the system will run multiple displays or specialized software, confirm the supported resolution, refresh rate, interface standard and recommended memory or storage level.
For quotation, provide the application, quantity, target market, required ports, operating system and delivery schedule. Yorvix can then confirm the practical configuration, documentation and production lead time for the project.
