A compact fanless industrial computer with dual LAN, two RS232 ports, dual display output, and wide DC input support.
Industrial
G12 Fanless Industrial Mini PC
A compact fanless industrial computer with dual LAN, two RS232 ports, dual display output, and wide DC input support.
Product highlights
Built for reliable deployment.

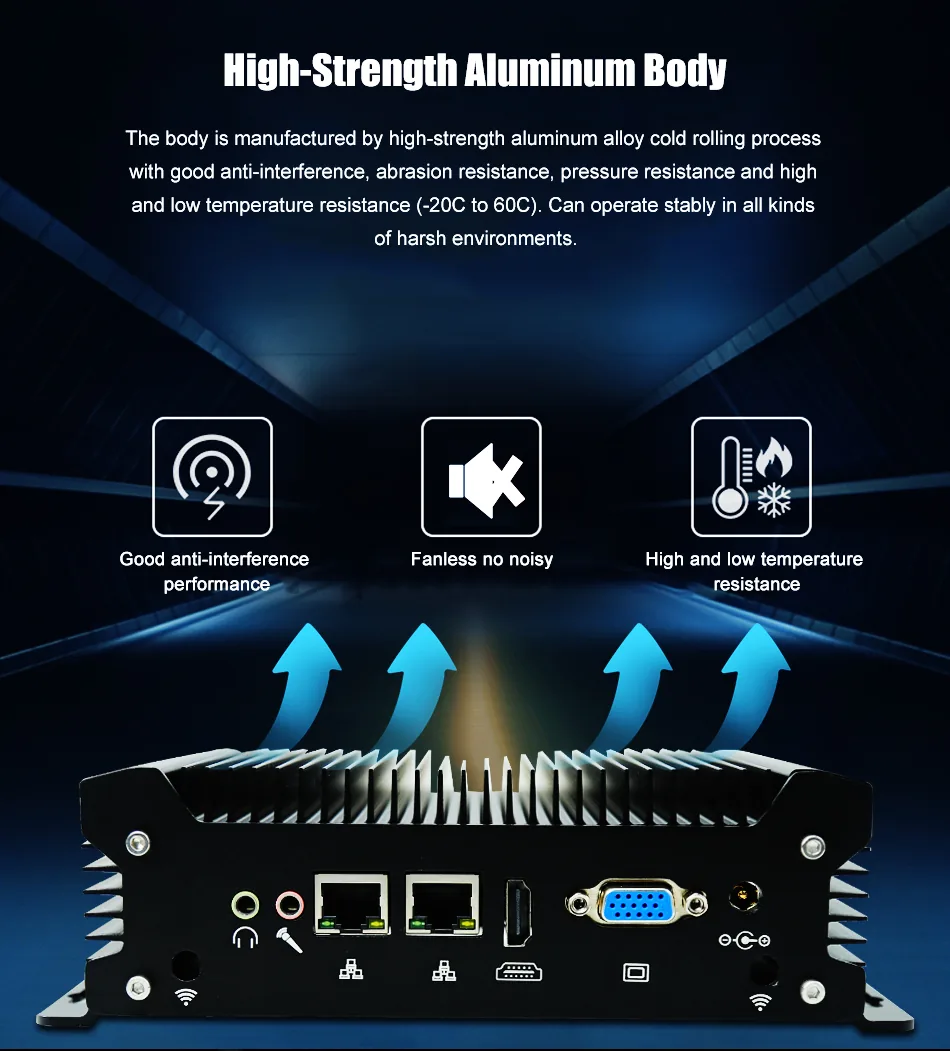

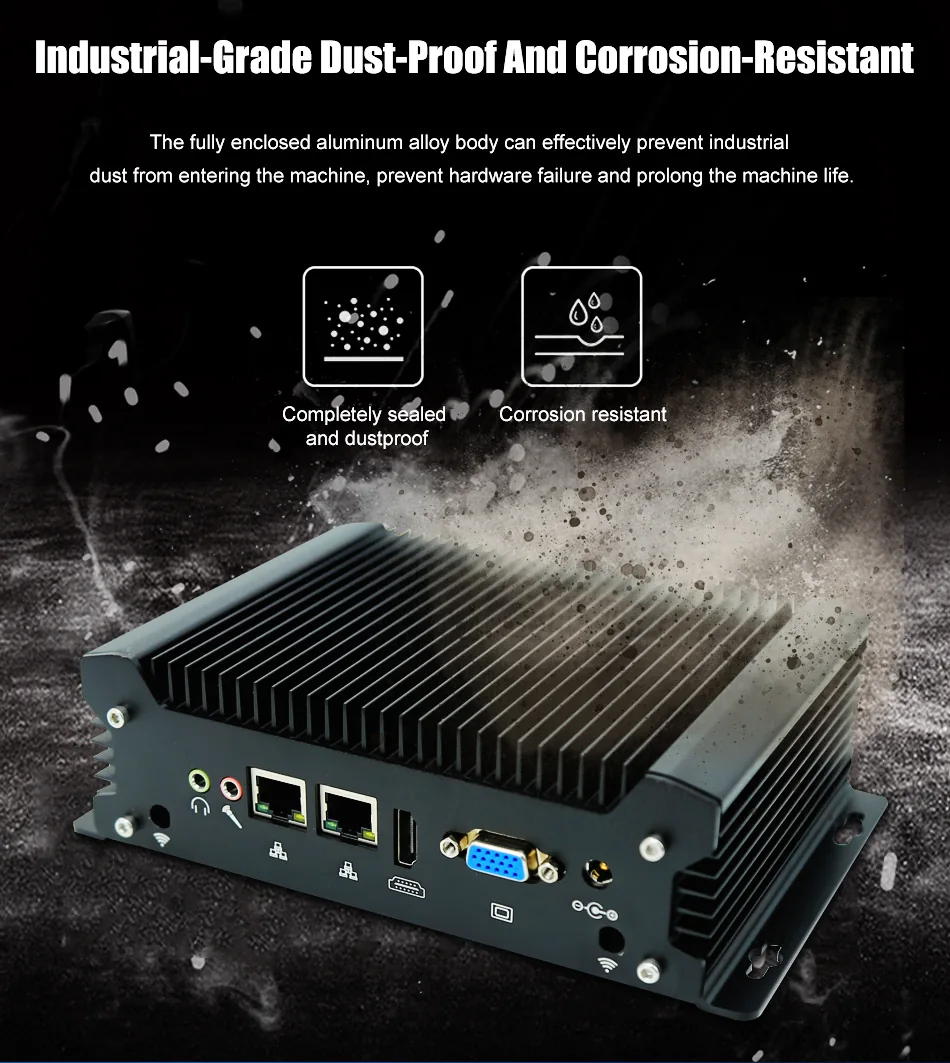

- Aluminium fanless enclosure with dust and corrosion resistance

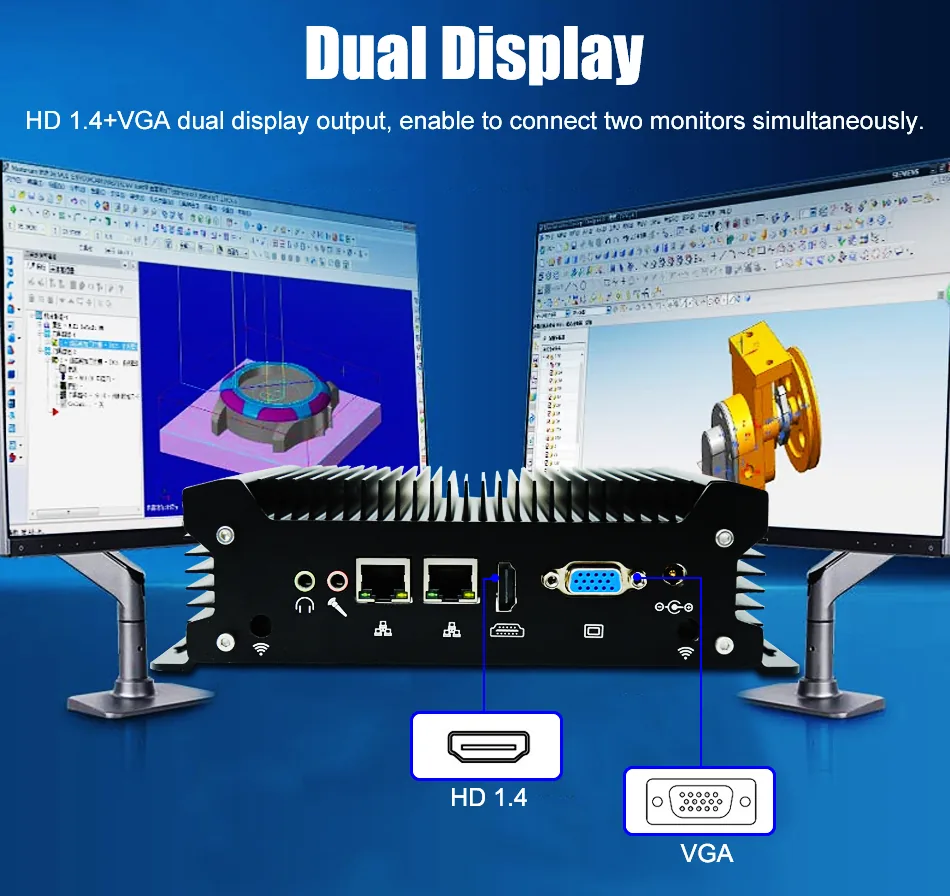

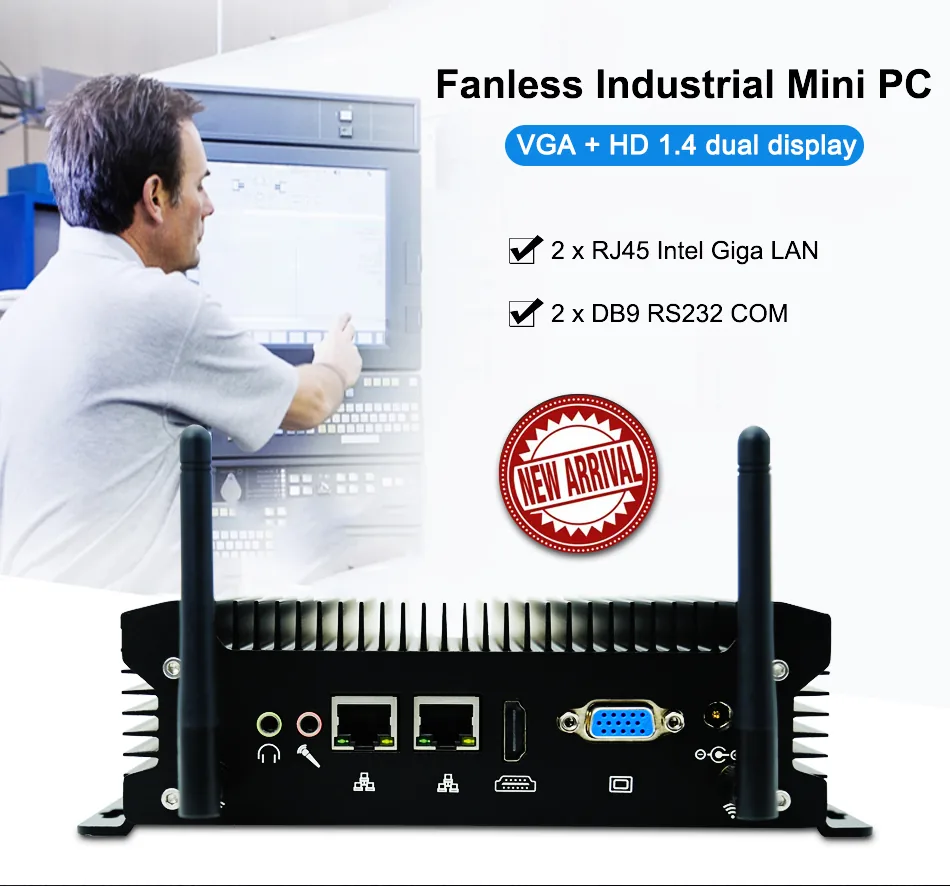

- Dual display through VGA and HDMI 1.4

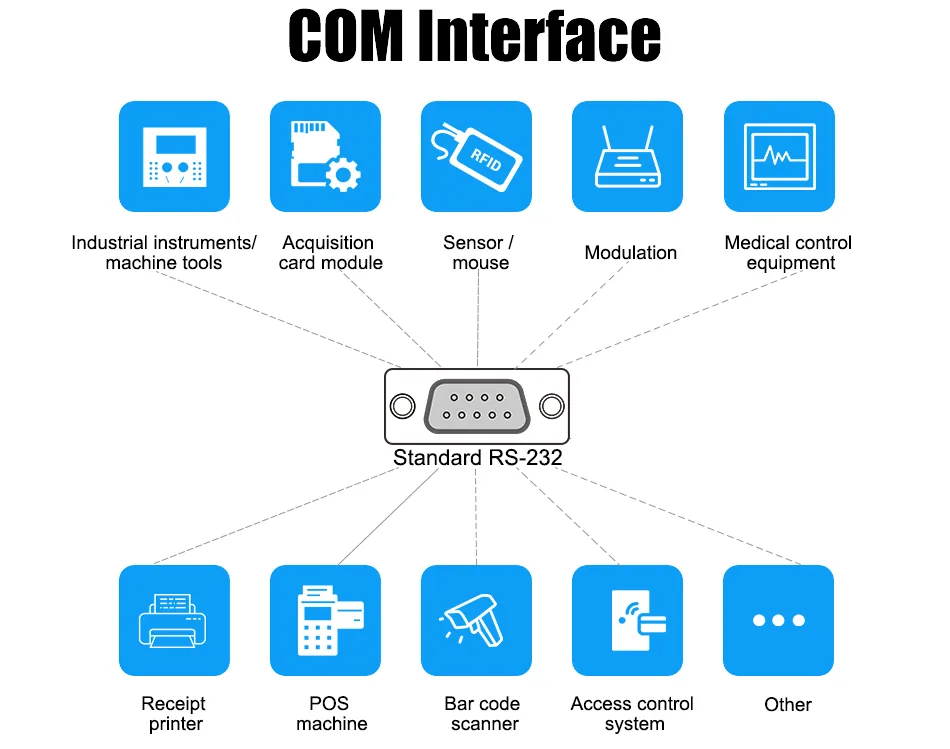

- Two DB9 RS232 ports for industrial peripherals

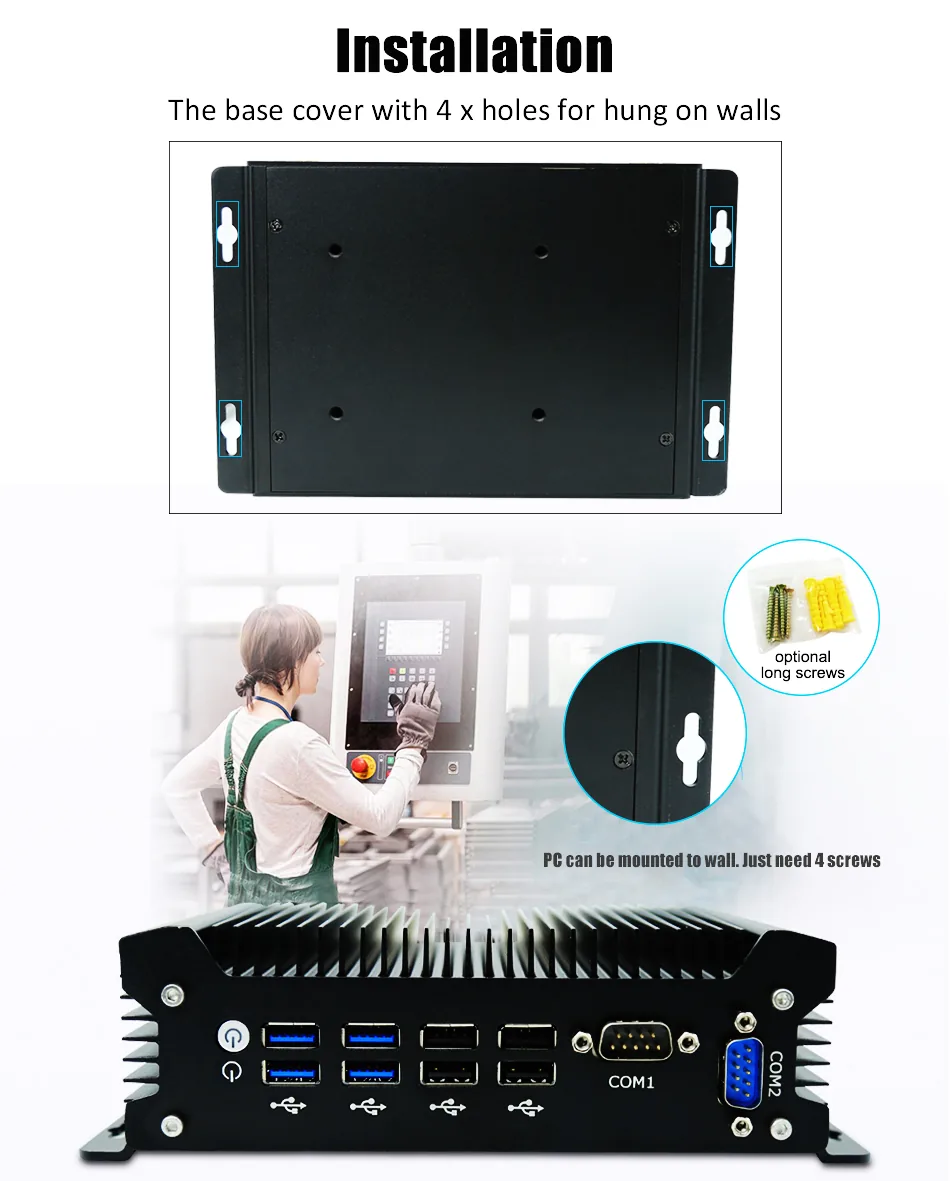

- Wide 12-19V DC input and wall-mount support

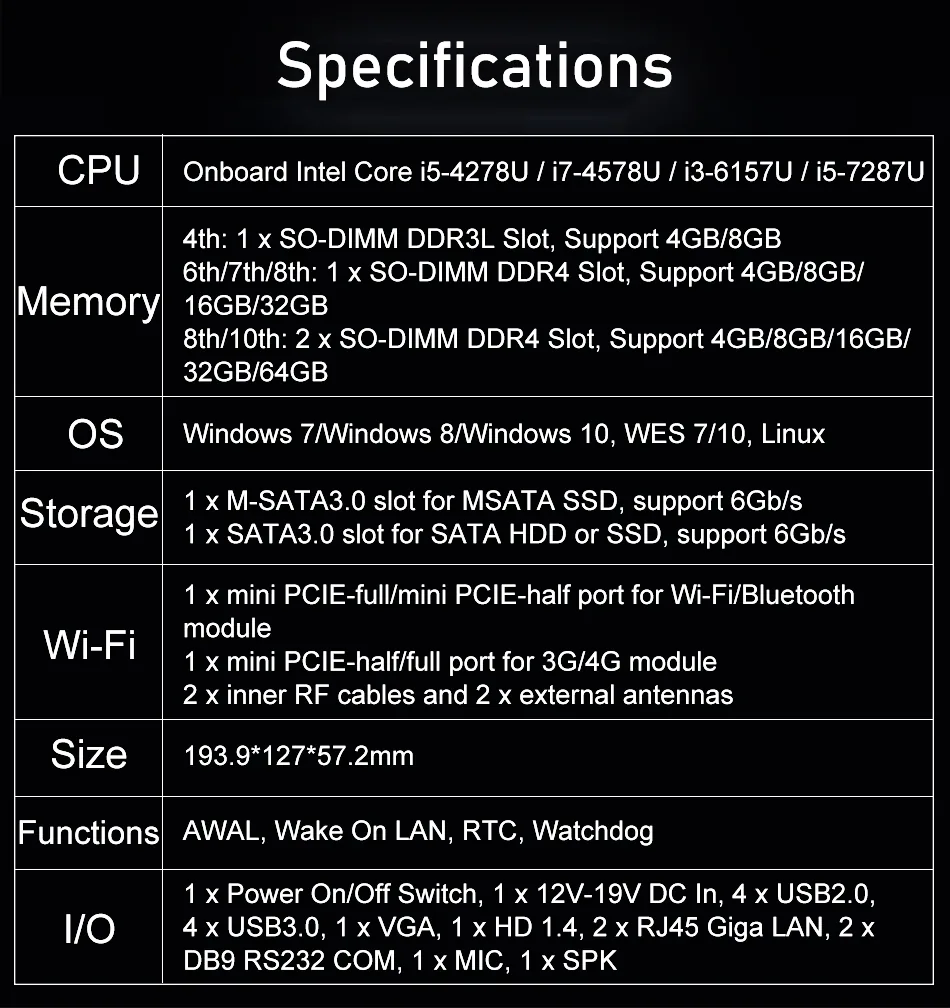

Technical specifications
G12 specifications
| CPU | Intel 4th / 6th / 7th / 8th / 10th Gen Core i3 / i5 / i7 / Pentium |
|---|---|

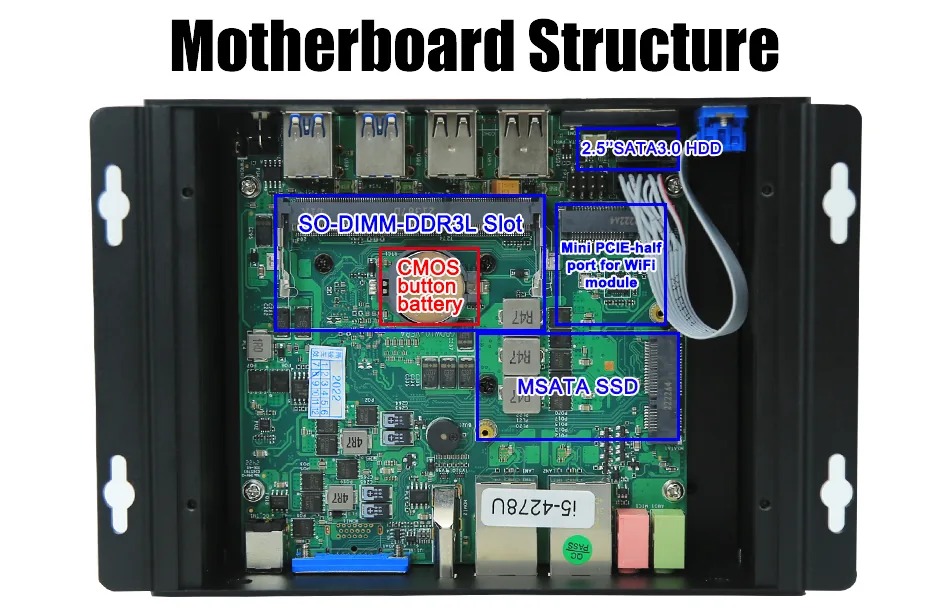

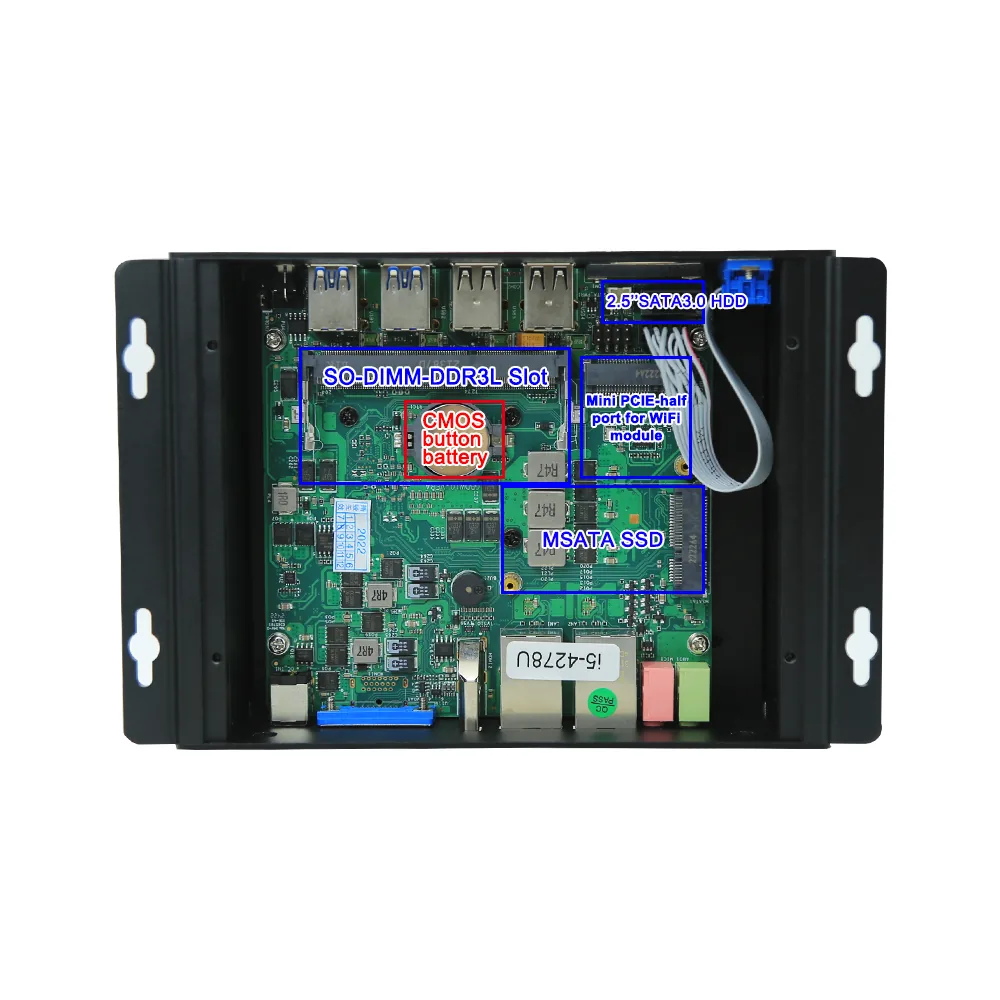

| Memory | 1 x DDR3 or DDR4 SO-DIMM depending on CPU; 8th / 10th Gen supports 2 x DDR4 |
| Storage | 1 x mSATA 3.0 SSD slot; 1 x SATA 3.0 HDD or SSD slot |
| OS | Windows 7 / Windows 10 / Linux / WES 7 / WES 10 |
| Network | 2 x Realtek RTL8111 Gigabit LAN |

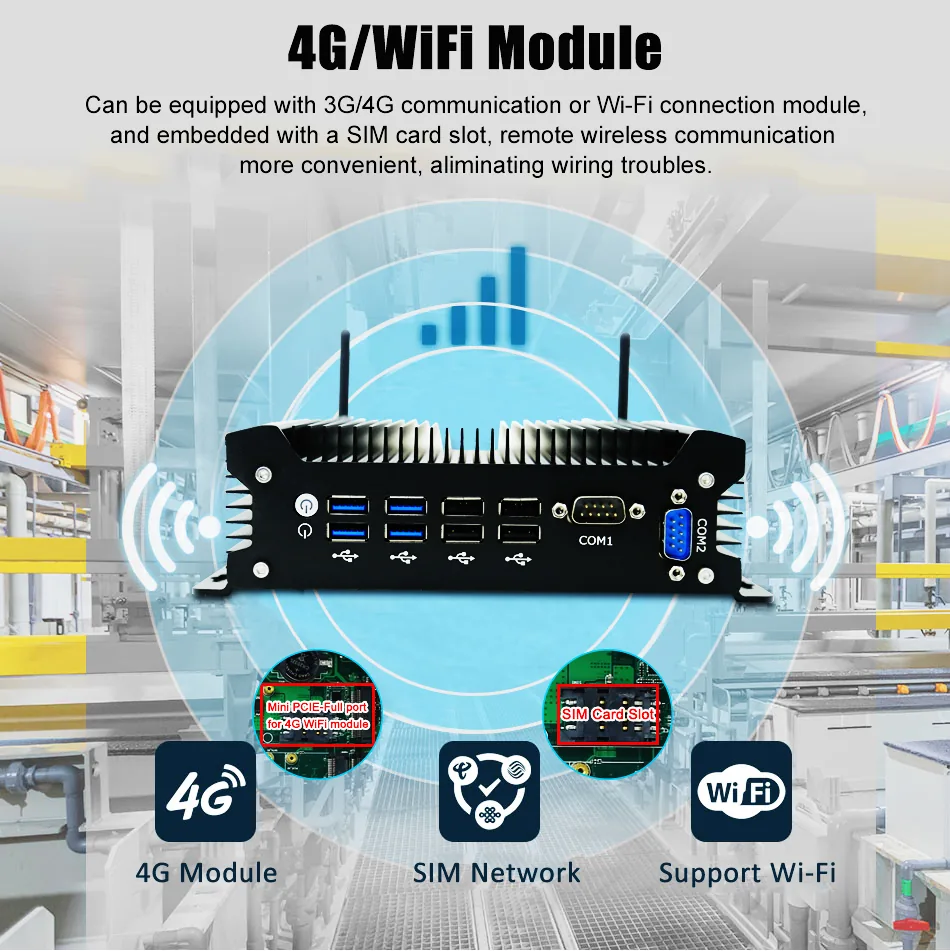

| Wi-Fi | 1 x Mini PCIe half-size slot |
| Cooling | Fanless |

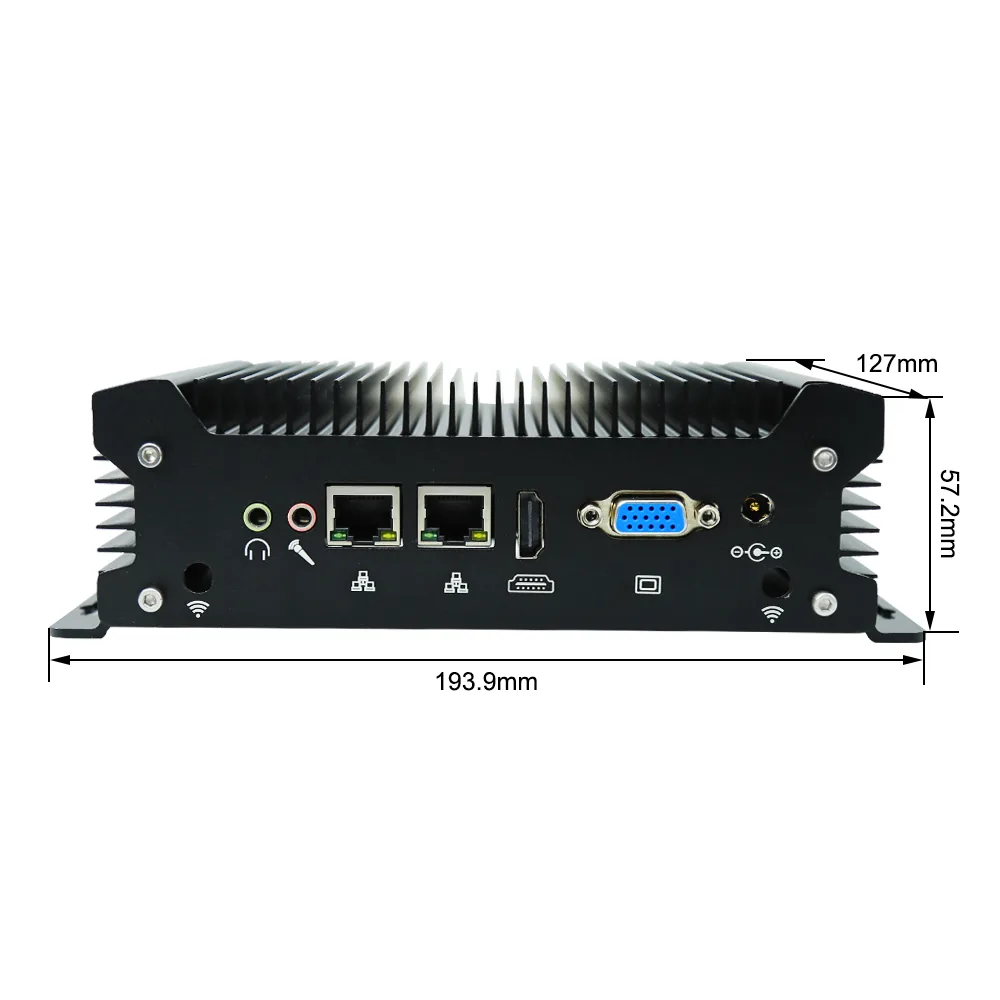

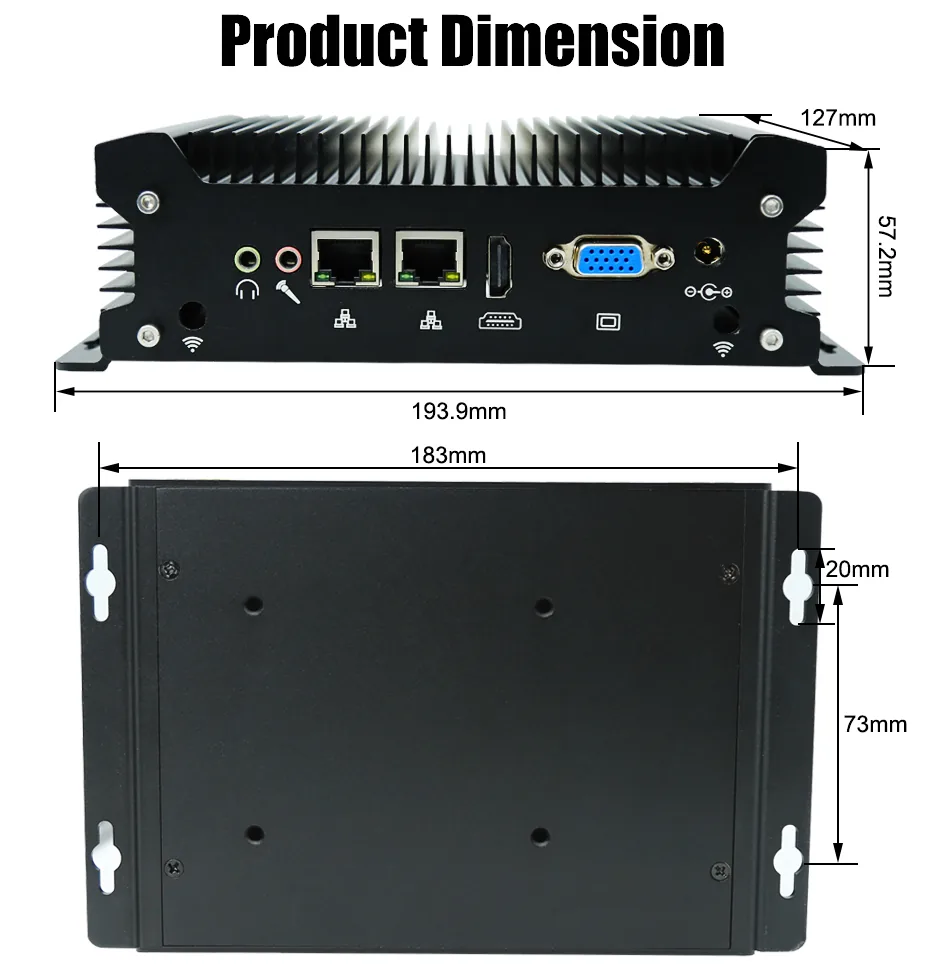

| Dimensions | 193.9 x 127 x 57.2 mm |

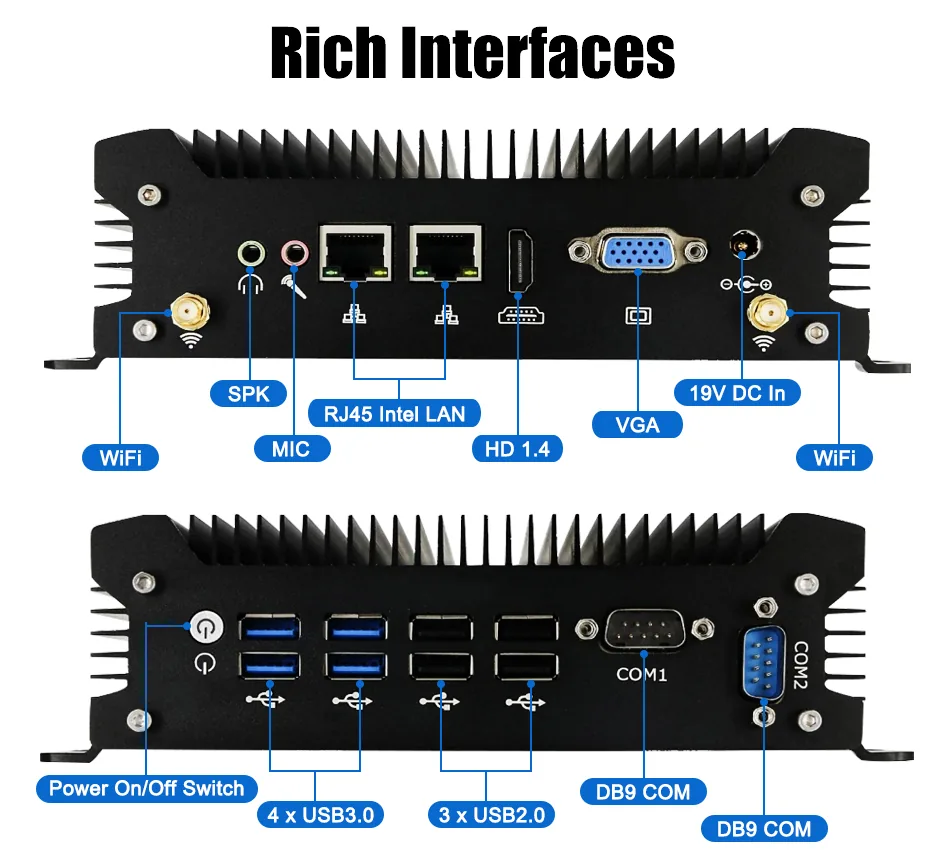

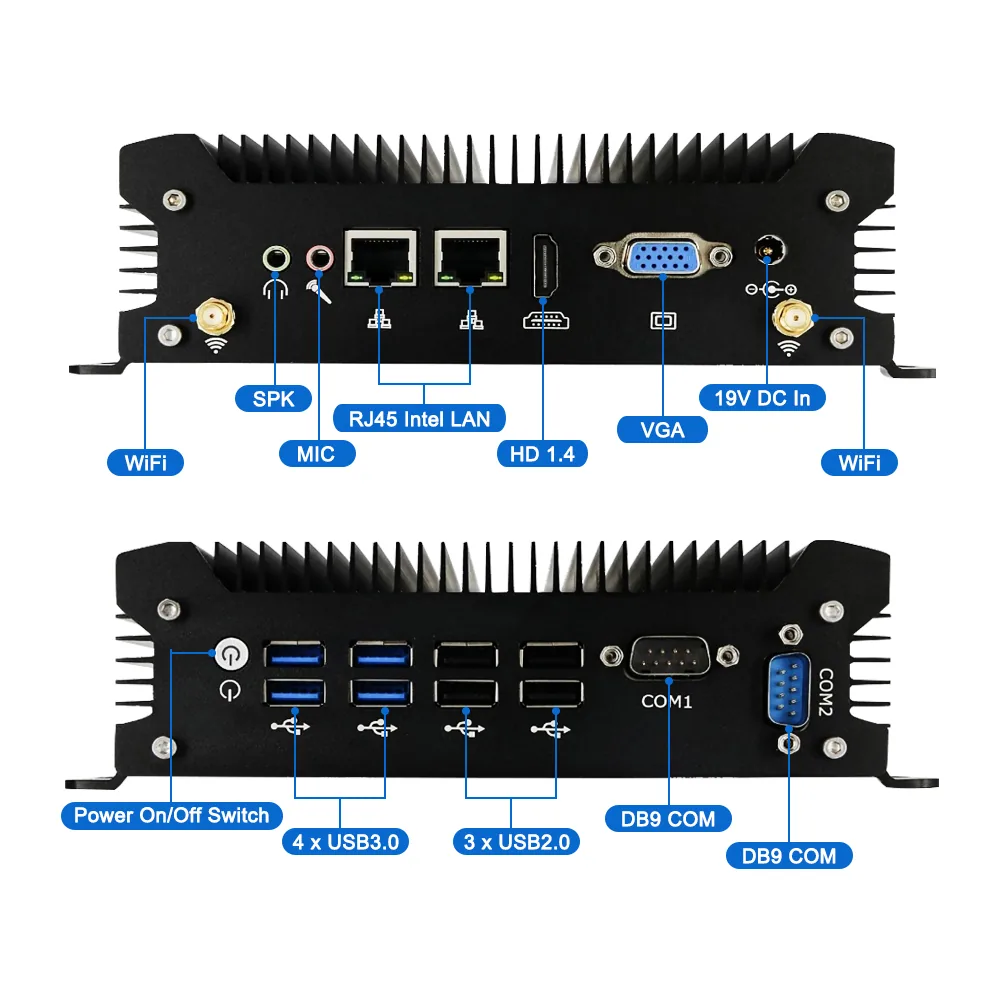

| I/O | 12-19V DC; 4 x USB 2.0; 4 x USB 3.0; VGA; HDMI 1.4; 2 x RS232 COM; 2 x RJ45; MIC; SPK |

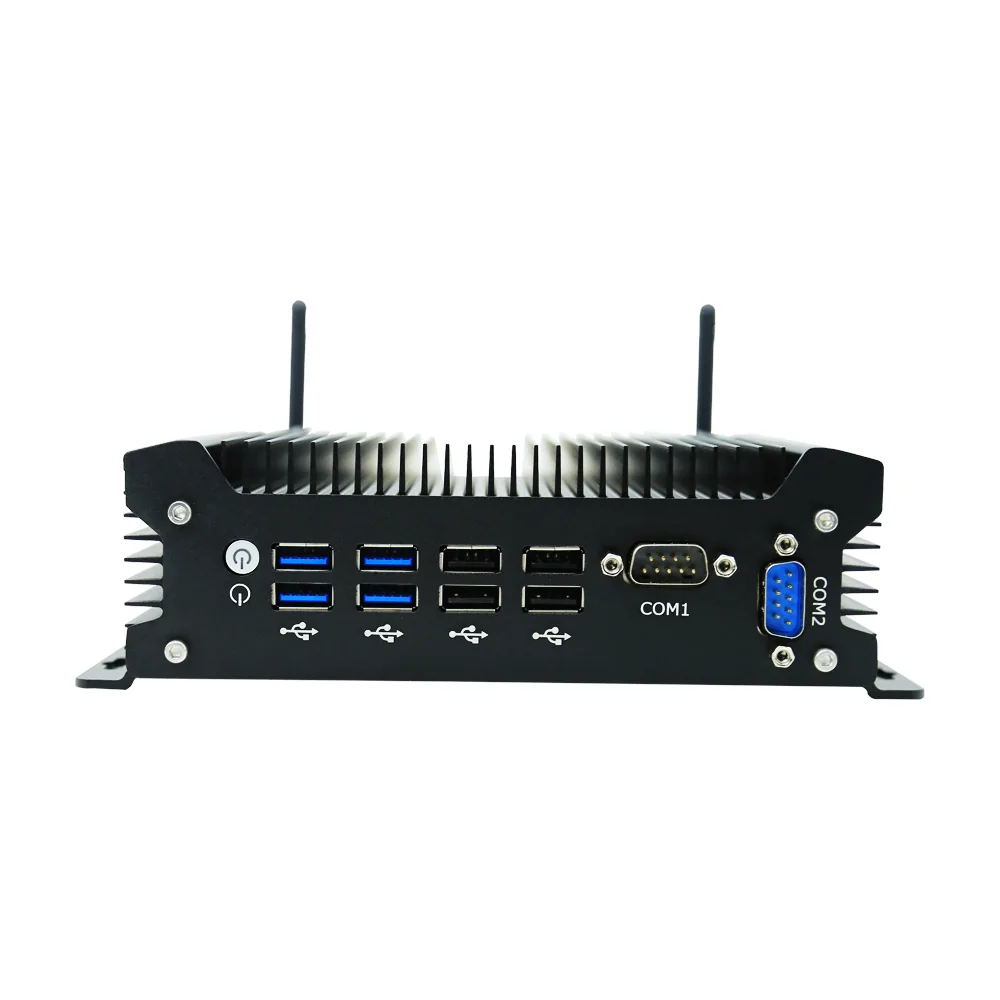

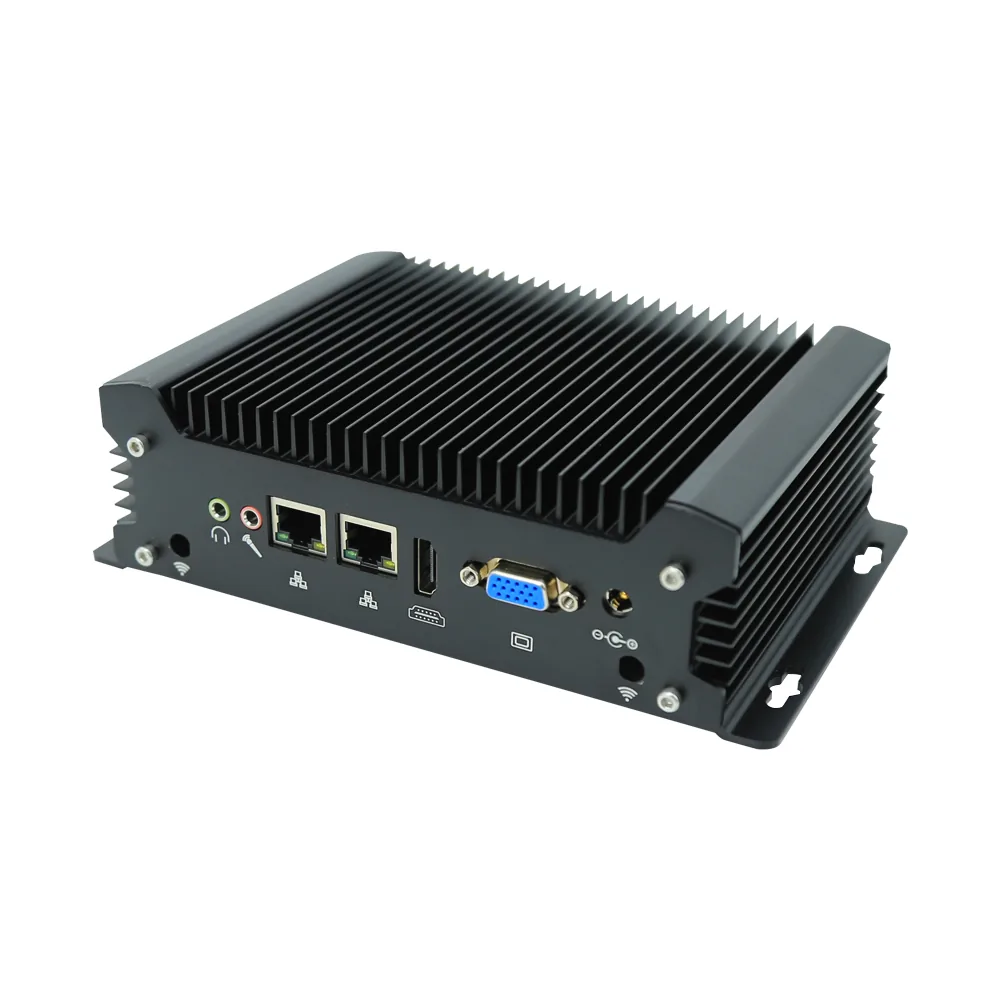

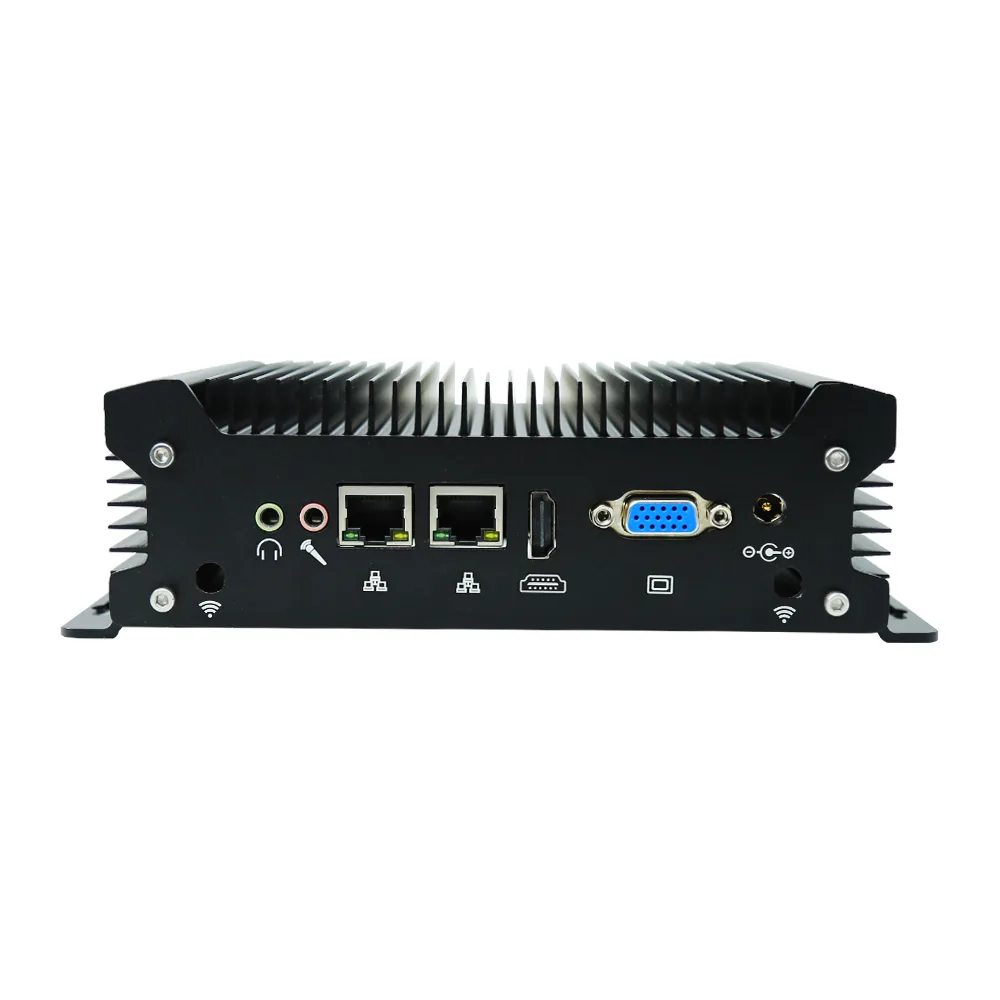

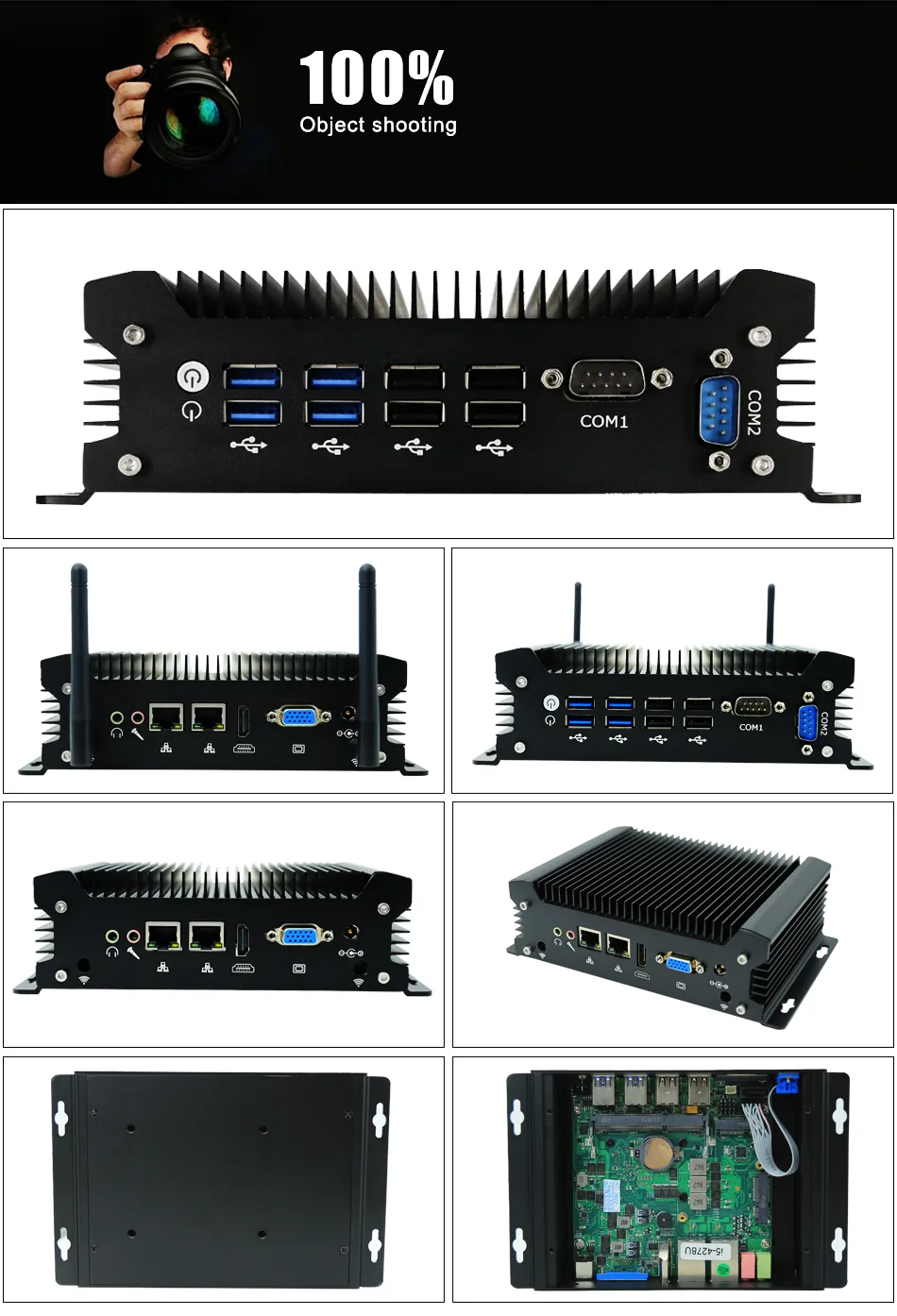

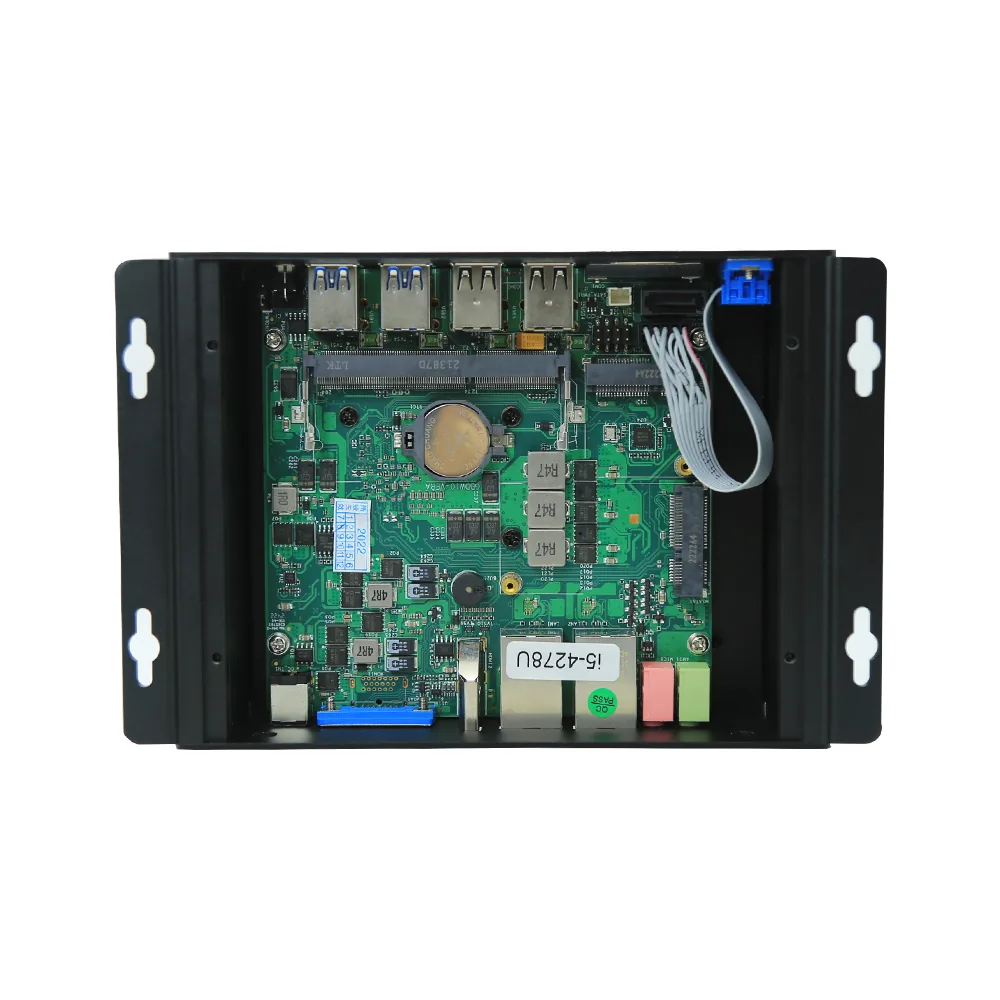

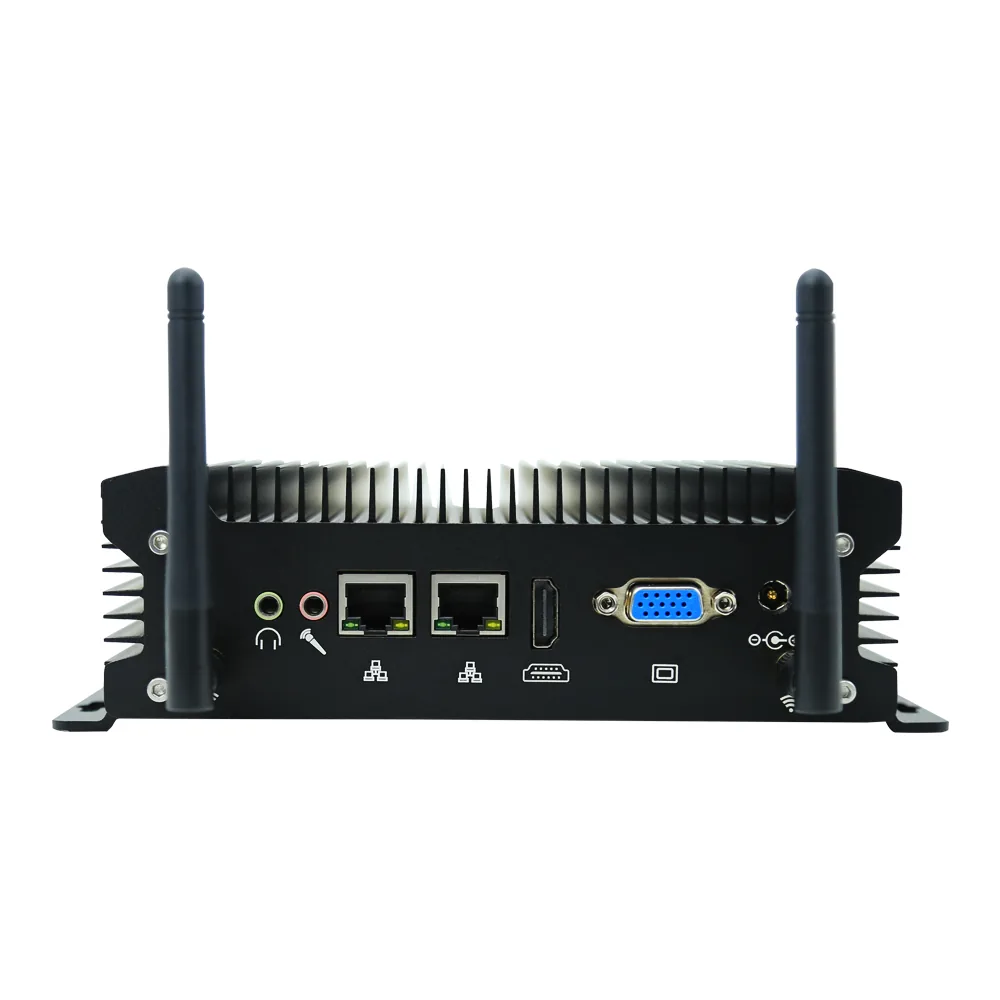

Product gallery

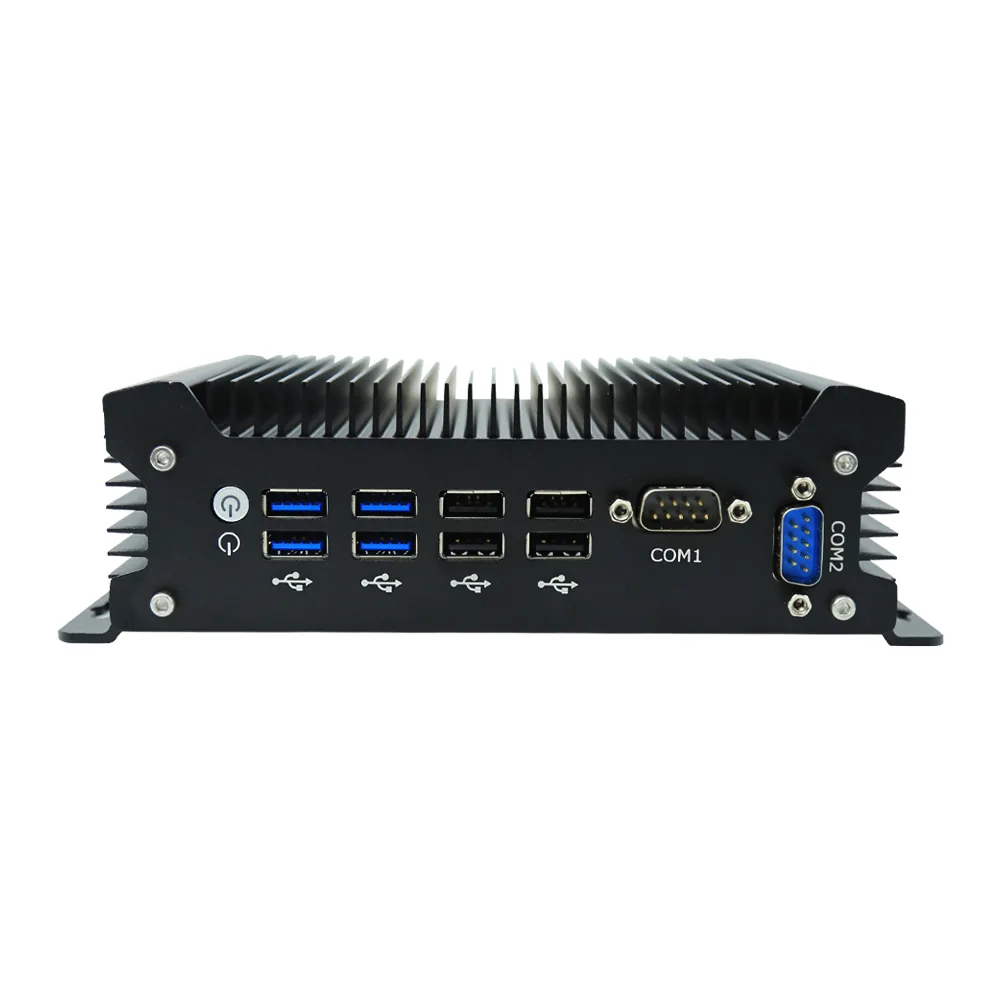

Product and interface views.
Detailed presentation
Product details and interface information.
Product video
G12 Fanless Industrial Mini PC overview
Applications
Typical deployment environments.
- Industrial control
- Multimedia terminals
- Retail systems
- Digital signage
Product documentation
Download product brochures.
Review detailed model options, interfaces, operating conditions, and packaging information.
Project inquiry
Discuss your hardware and deployment requirements.
Send the required CPU, memory, storage, network, serial-port, operating-system, and deployment quantity for a quotation.
Industrial Mini PC deployment planning
The G12 Mini PC is intended for commercial and industrial environments where reliability, connectivity and continuous operation matter. Before finalizing a configuration, confirm the operating temperature range, mounting method, power requirements, available network connections and any vibration or dust exposure in the installation area.
Interface planning is equally important. List the required serial ports, USB connections, display outputs, LAN speed, digital I/O and expansion needs up front so the system can be reviewed against the actual equipment it will control or communicate with.
For project quotations, include the operating system, processor class, memory, storage, quantity, target market and expected deployment date. Final compatibility, certification scope, lead time and warranty terms are confirmed in writing after the requirements review.
