G10 Fanless Industrial Mini PC
A sealed fanless industrial computer with six COM ports, dual Intel LAN, and optional 3G/4G connectivity.
Product highlights
Built for reliable deployment.

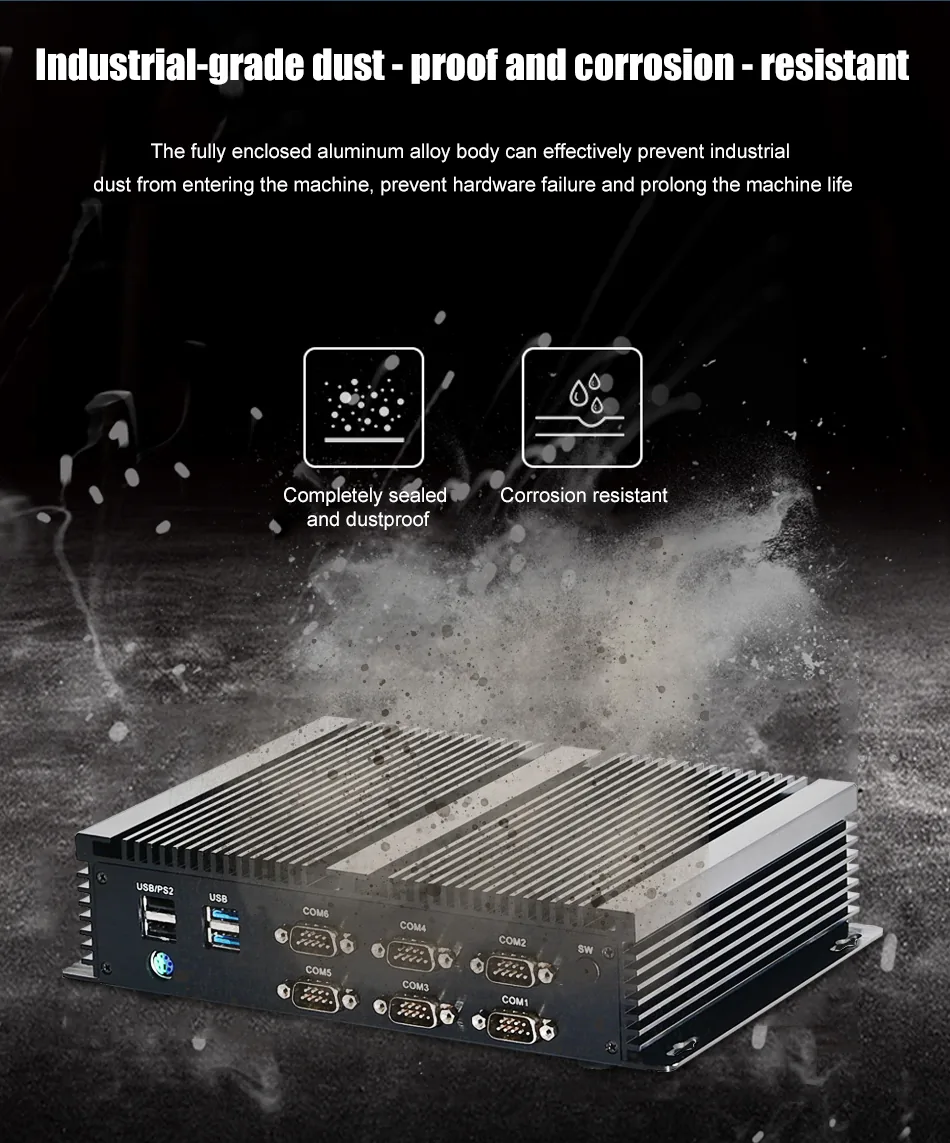

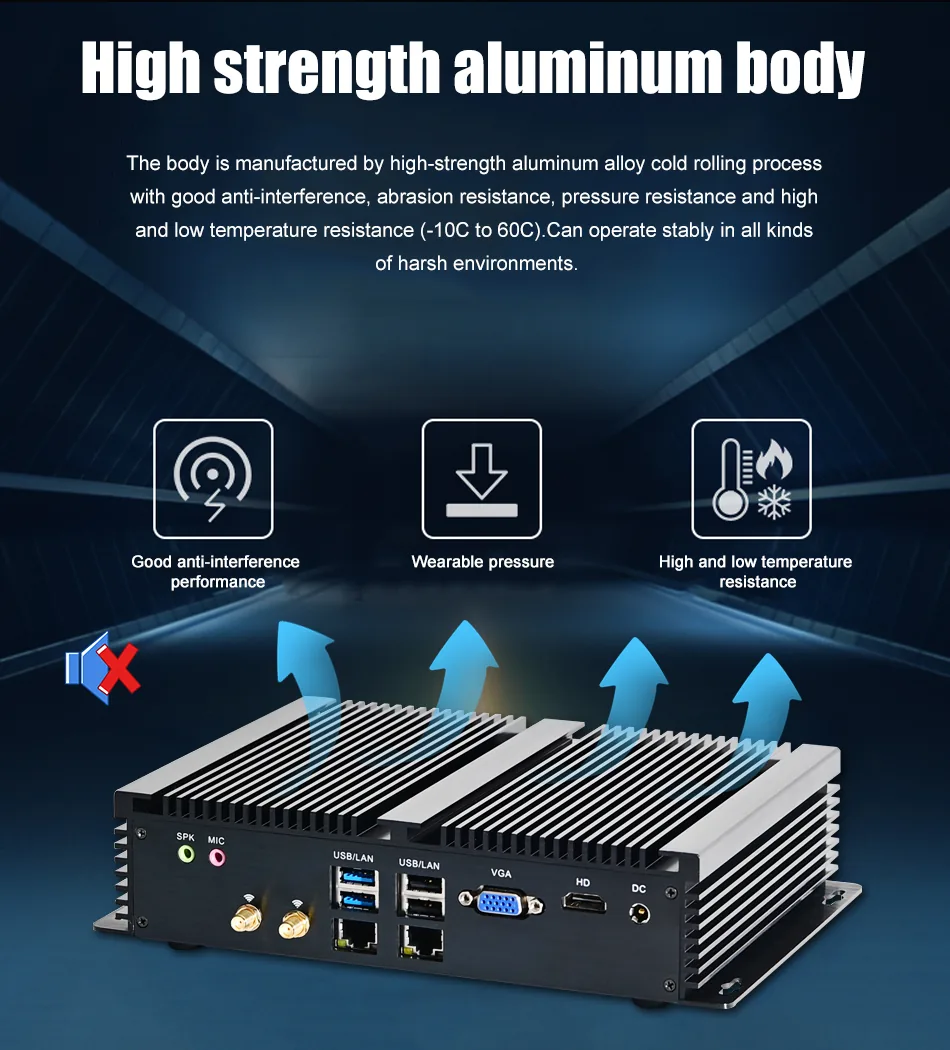

- Fully sealed aluminium enclosure for dust and corrosion resistance

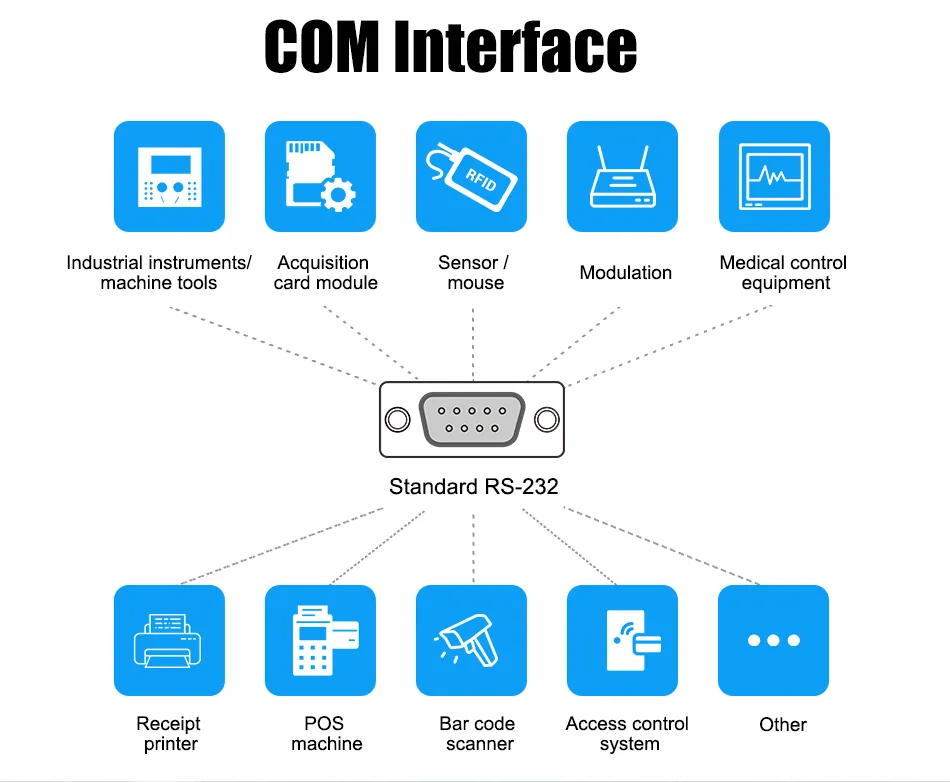

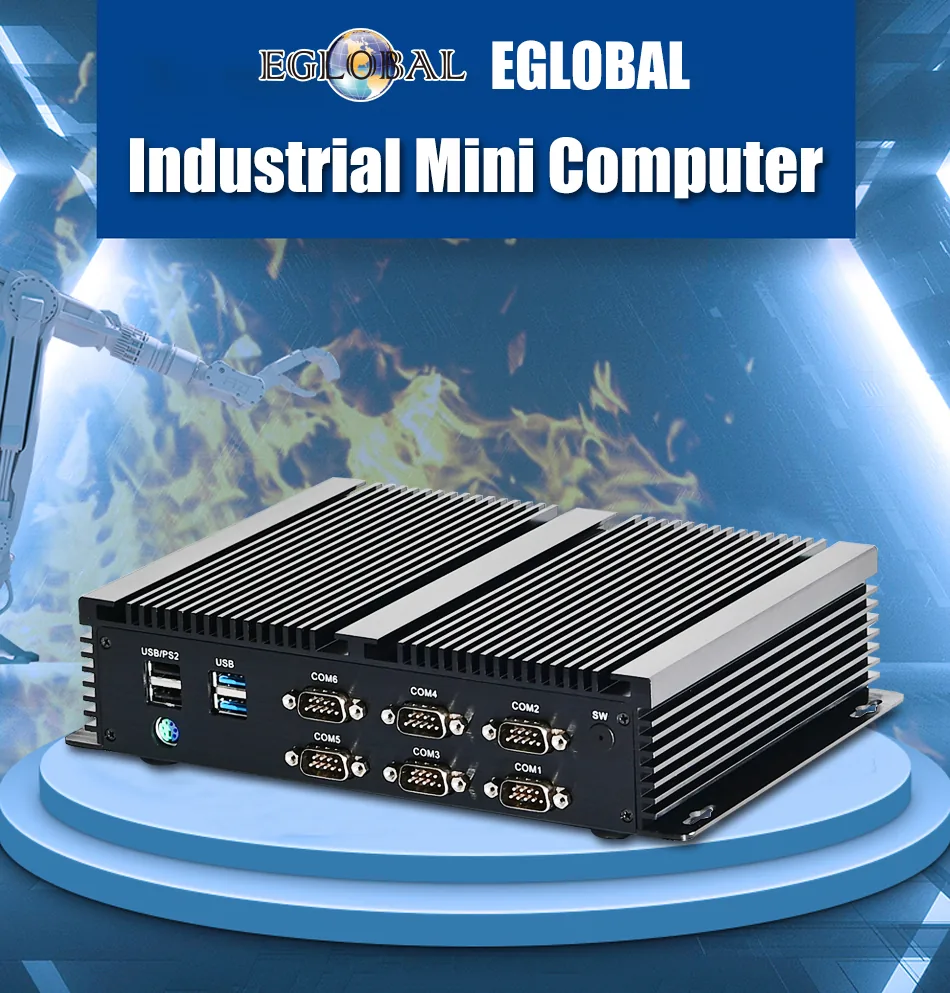

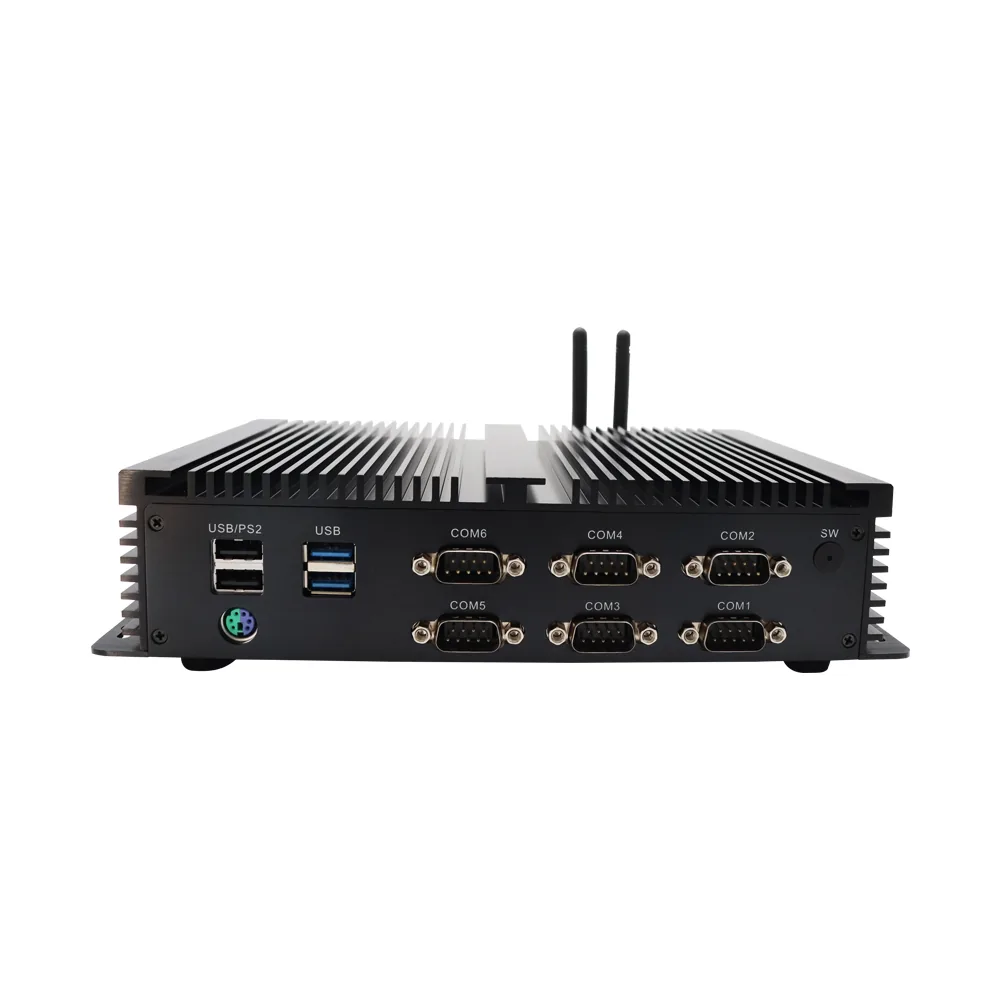

- Six COM ports with COM1 and COM2 configurable for RS232, RS422, or RS485

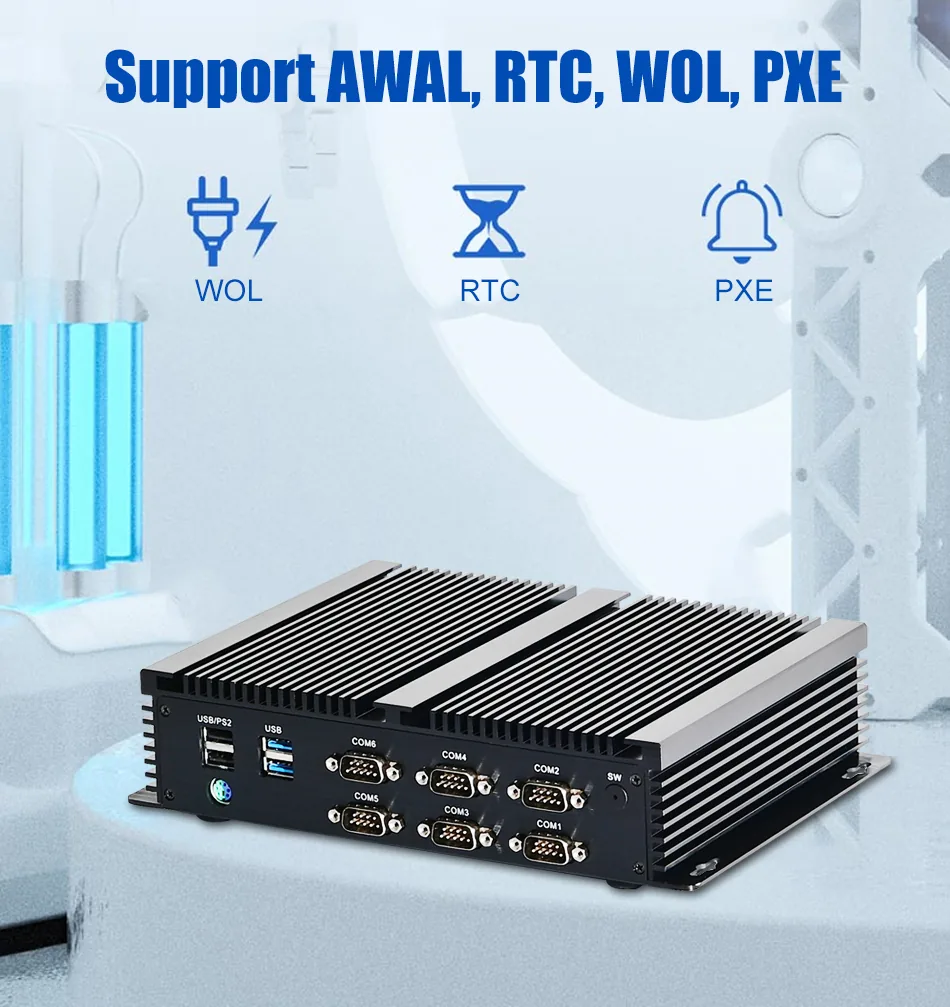

- Watchdog, RTC, Wake-on-LAN, and PXE support

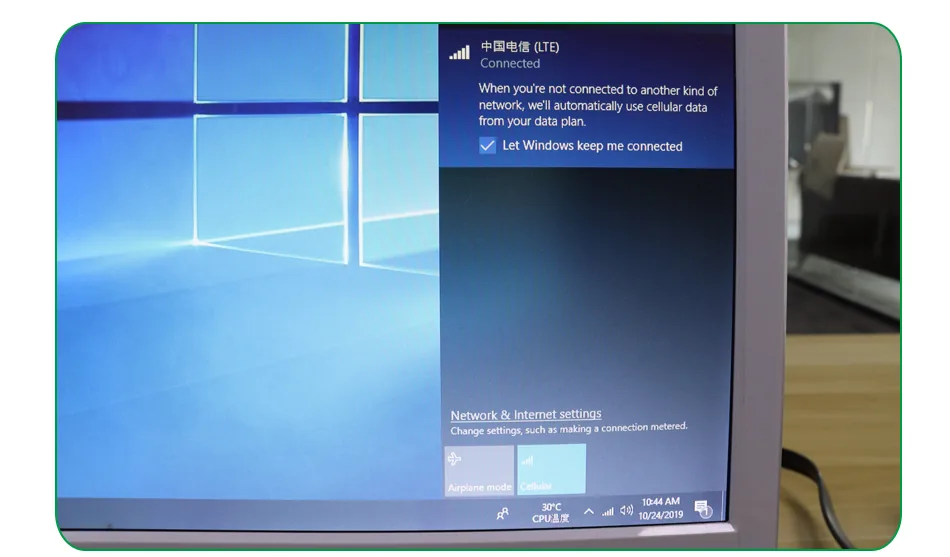

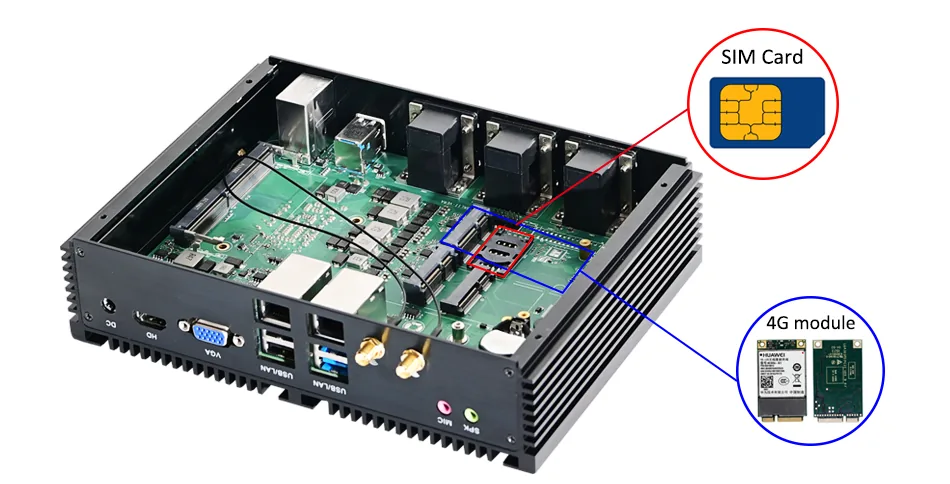

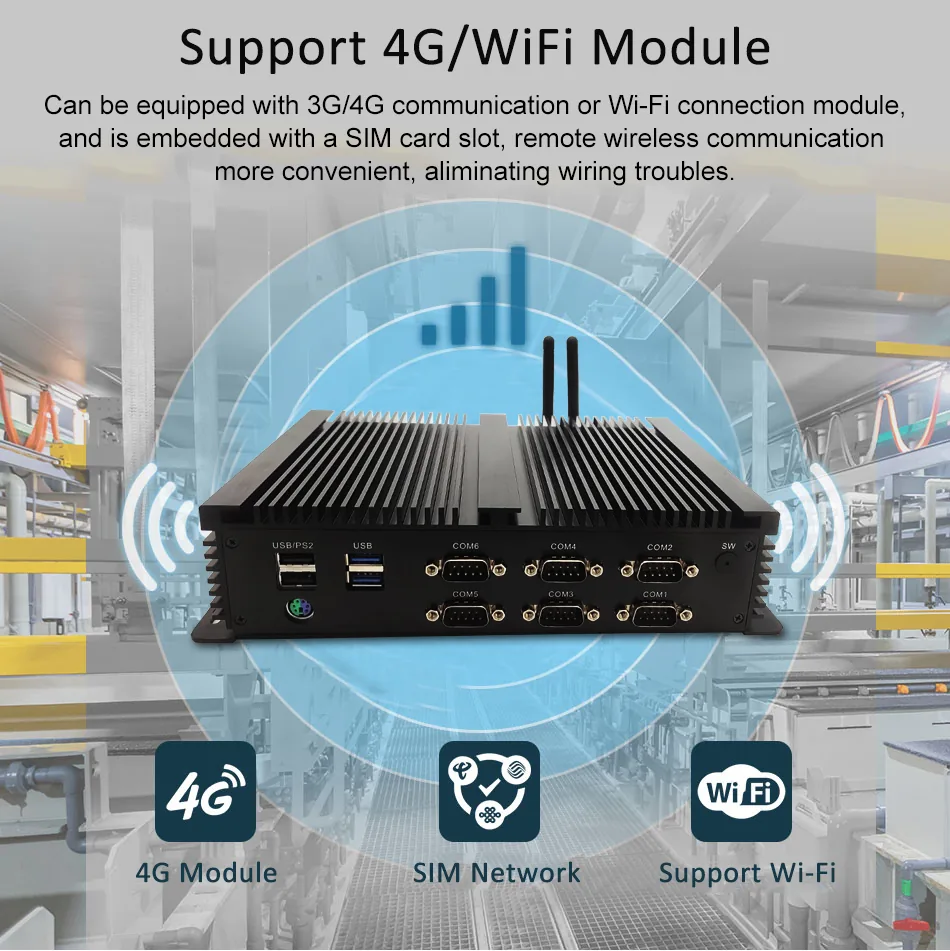

- Optional 3G/4G module and embedded SIM card slot

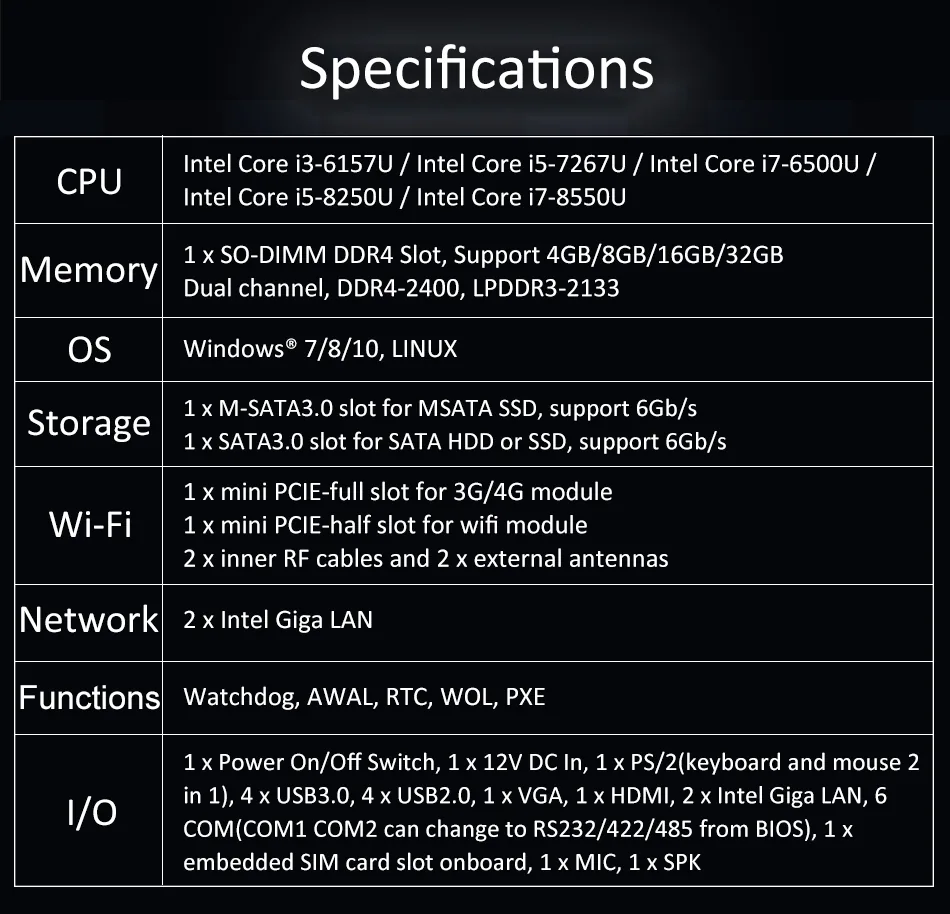

Technical specifications
G10 specifications
| CPU | Intel Core i3-6157U / i5-7267U / i7-6500U / i5-8250U / i7-8550U |
|---|---|
| Memory | 1 x SO-DIMM DDR4 slot, 4GB / 8GB / 16GB / 32GB |

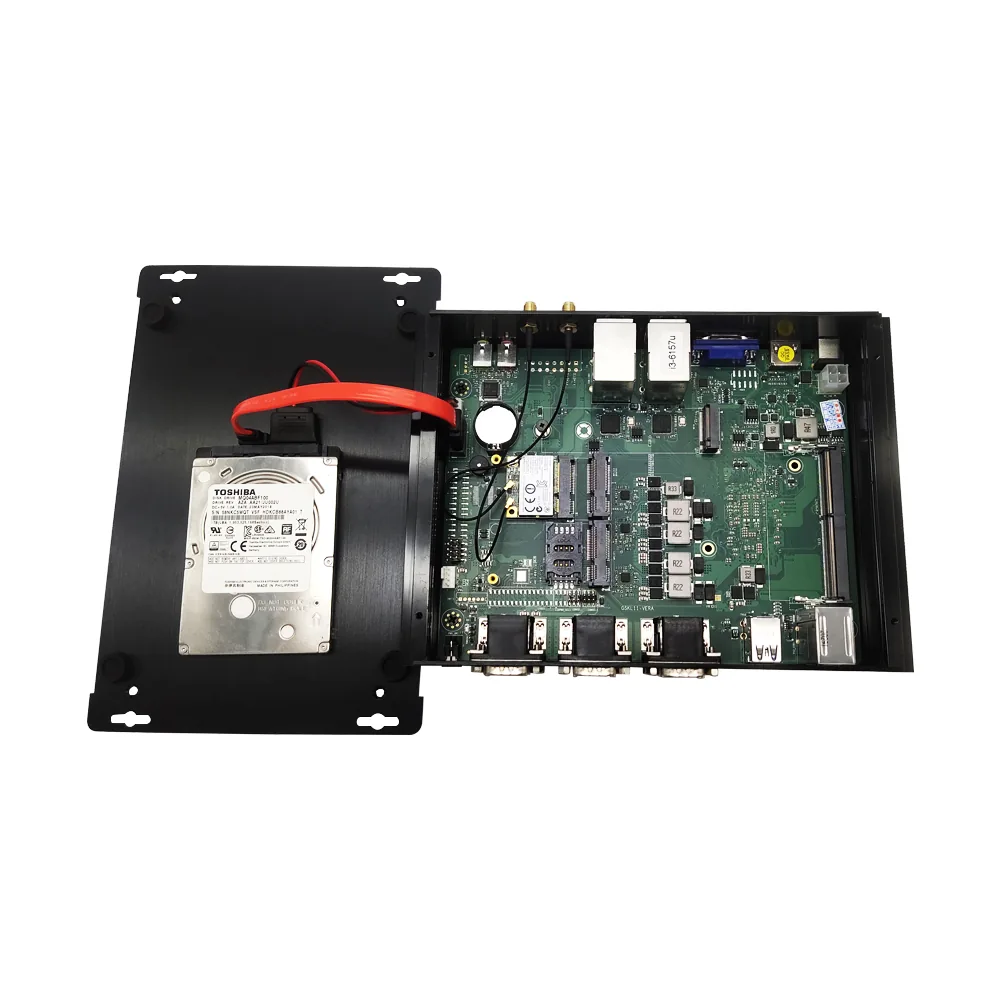

| Storage | 1 x mSATA 3.0 SSD slot; 1 x SATA 3.0 HDD or SSD slot |
| OS | Windows 7 / Windows 8 / Windows 10 / Linux |
| Network | 2 x Intel Gigabit LAN |

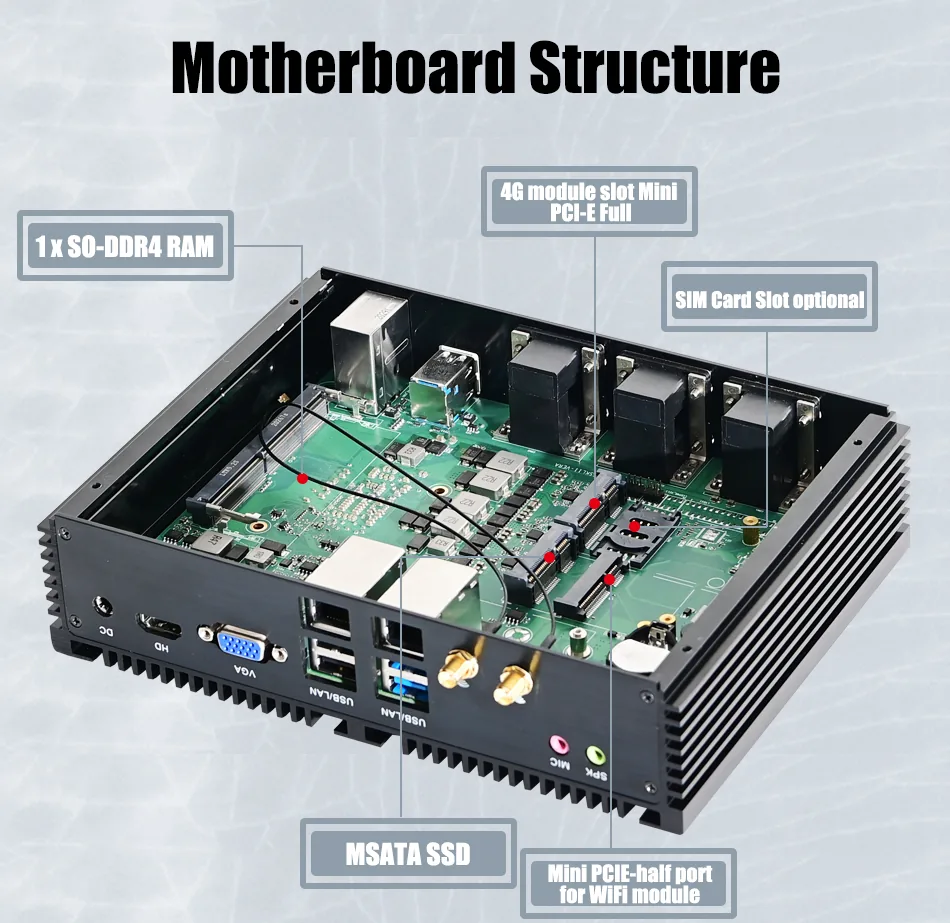

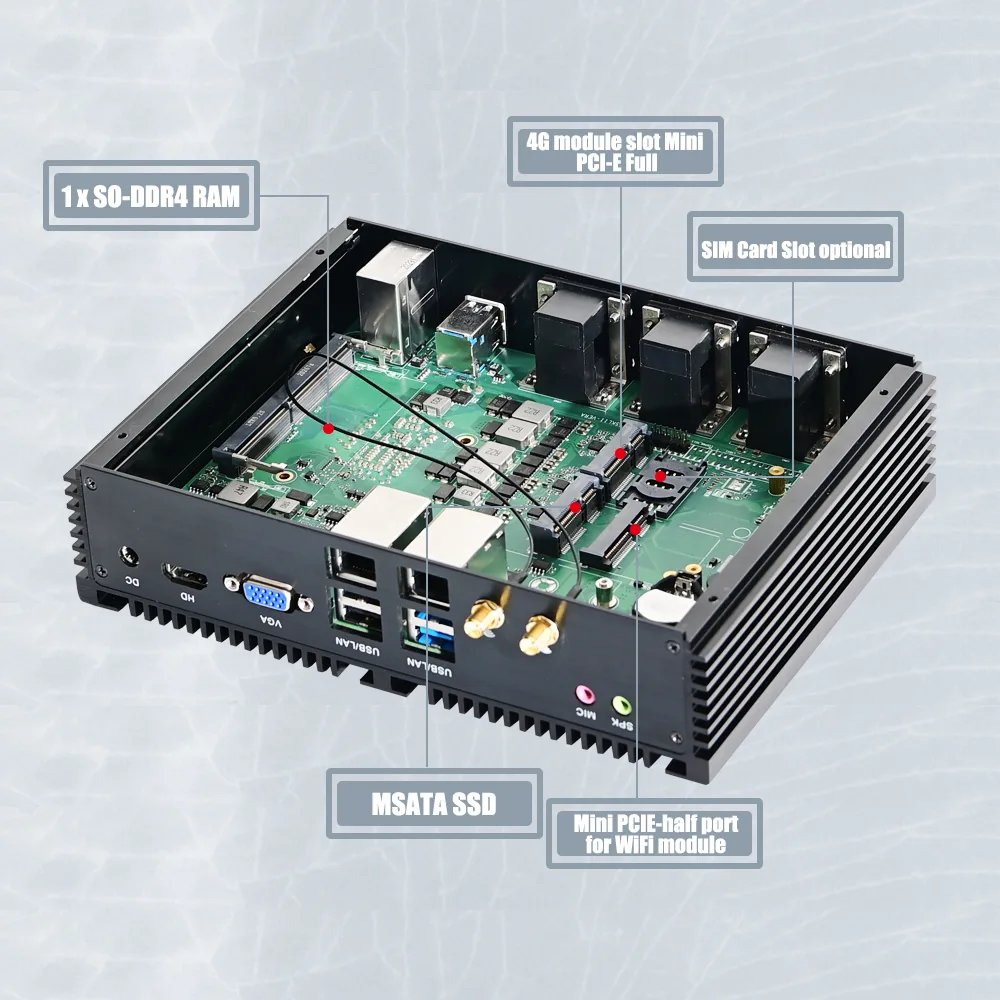

| Wireless | Mini PCIe half-size Wi-Fi slot; Mini PCIe full-size 3G/4G slot |
| Cooling | Fanless |
| Dimensions | 176 x 150 x 57 mm |

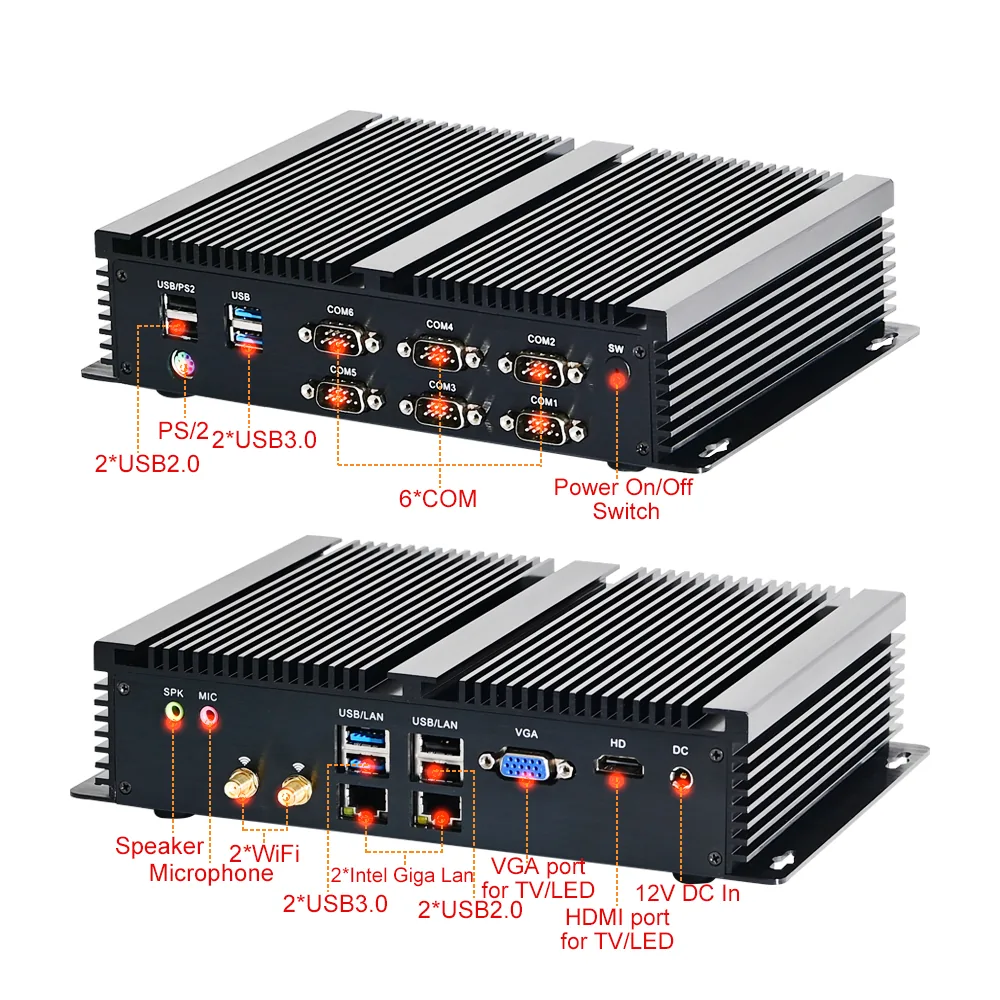

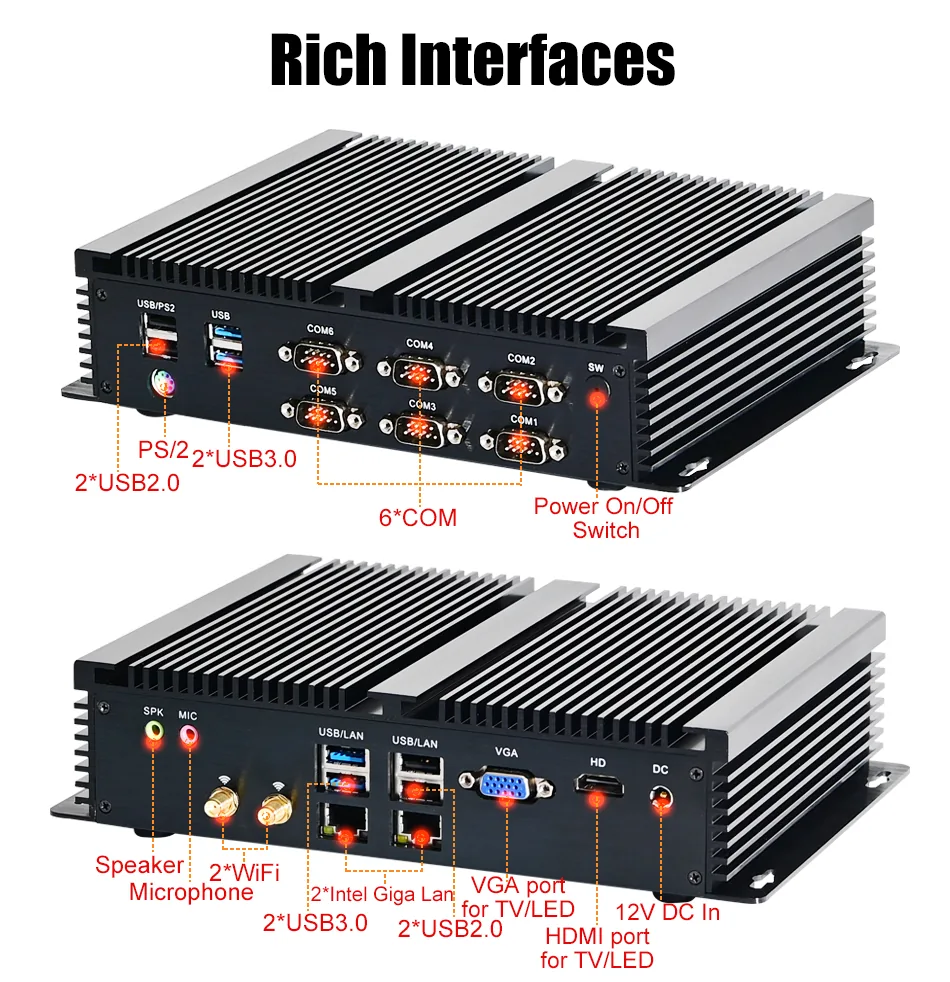

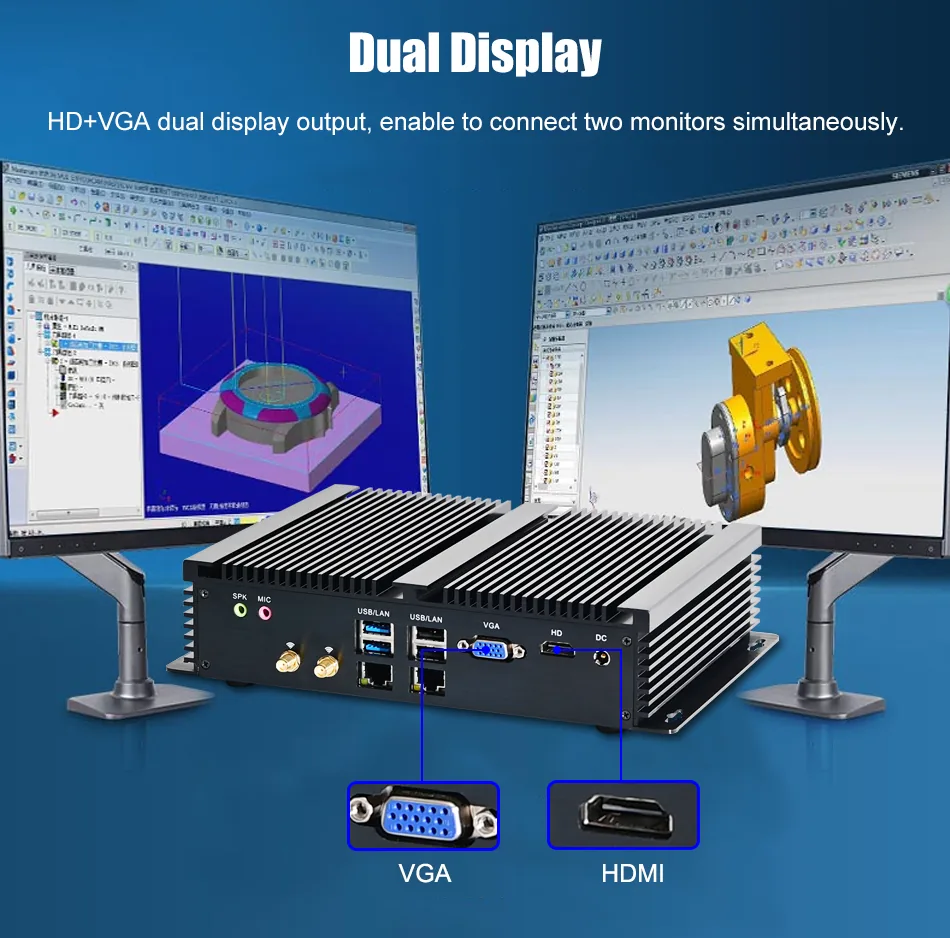

| I/O | 12V DC; 4 x USB 3.0; 4 x USB 2.0; VGA; HDMI; 2 x Intel Gigabit LAN; 6 x COM; PS/2; MIC; SPK; SIM |

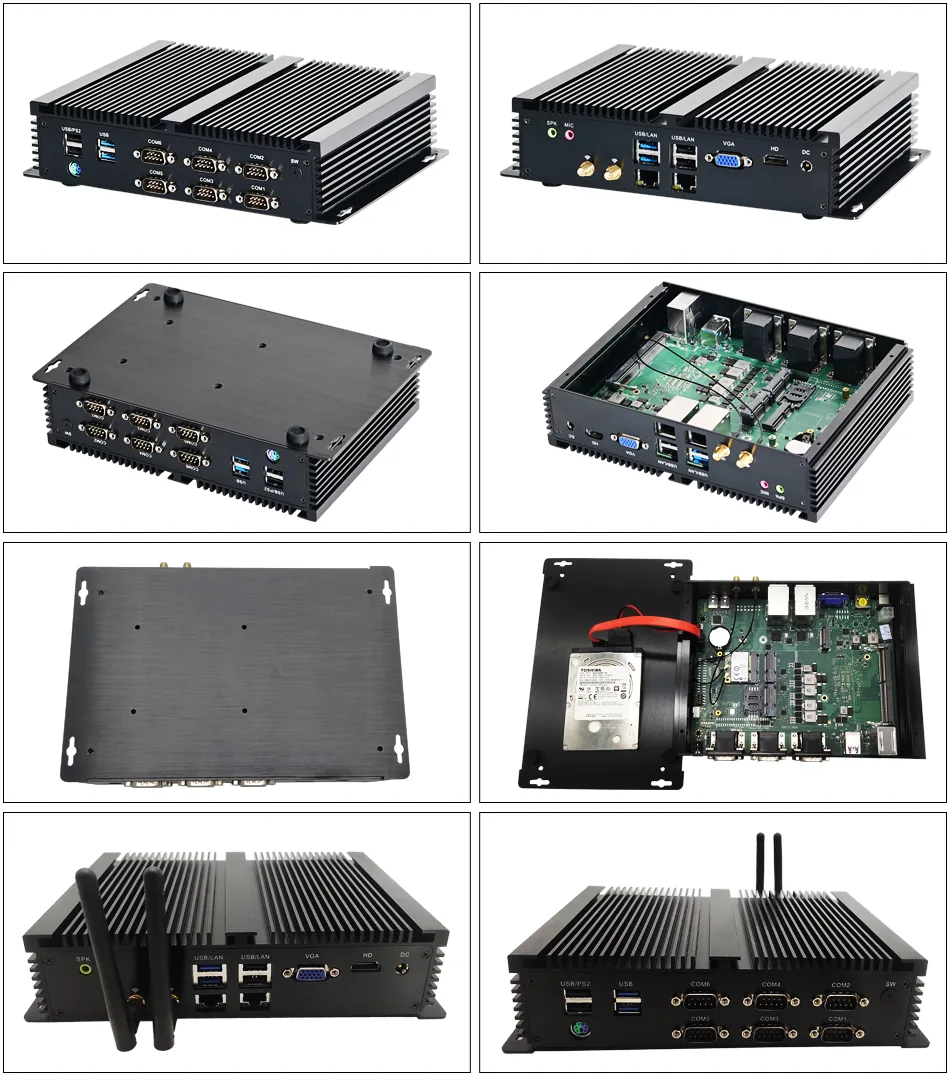

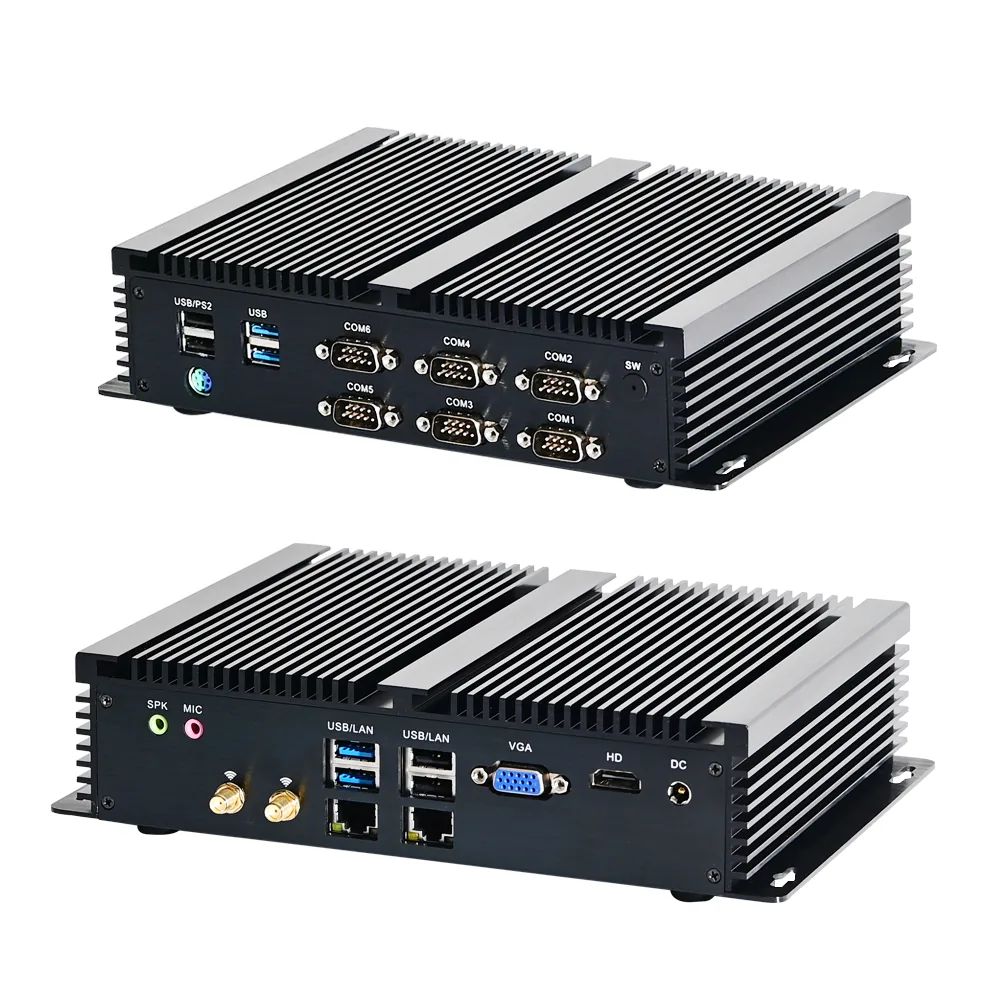

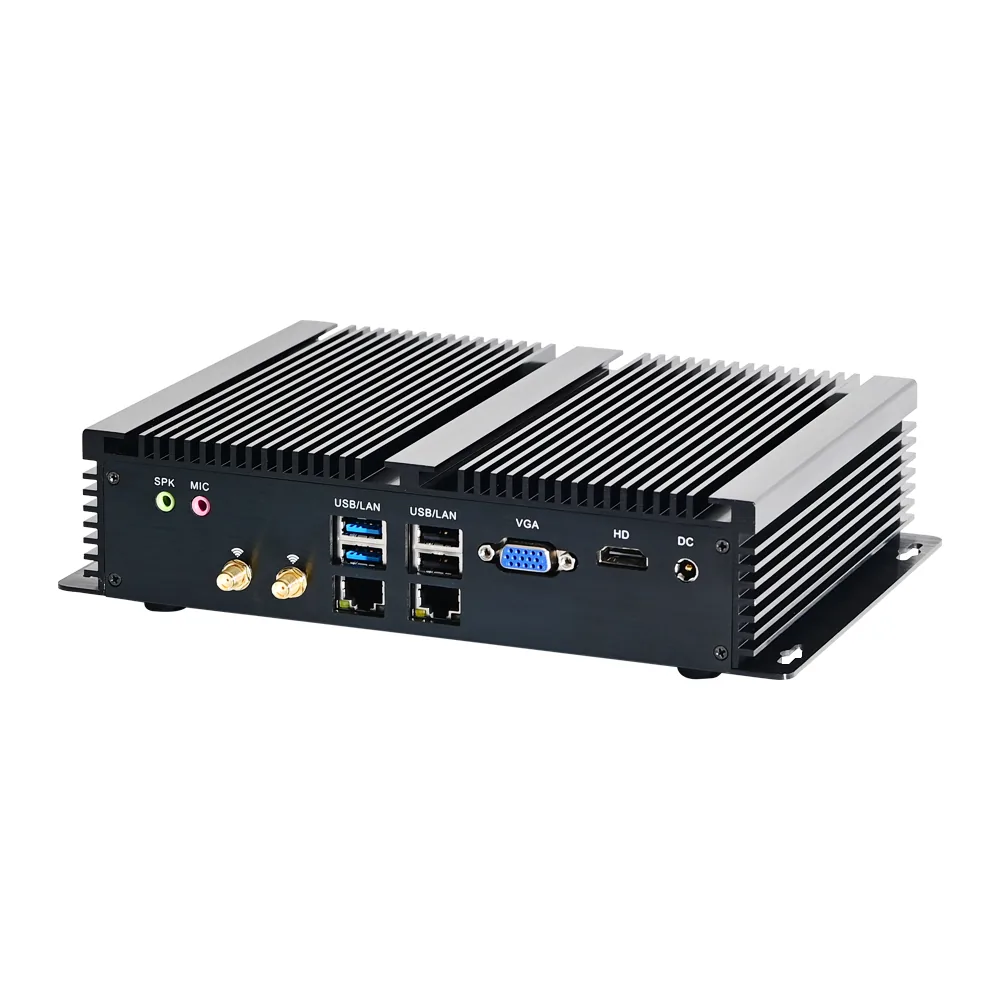

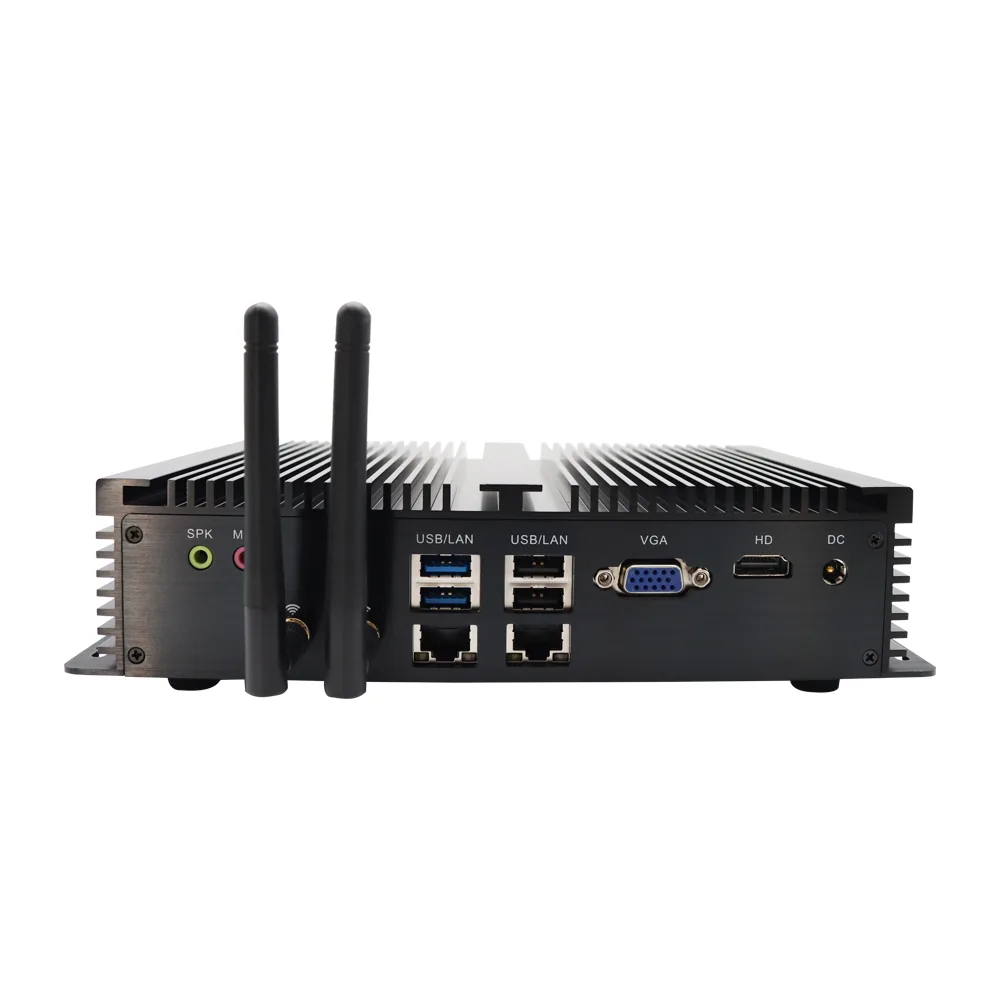

Product gallery

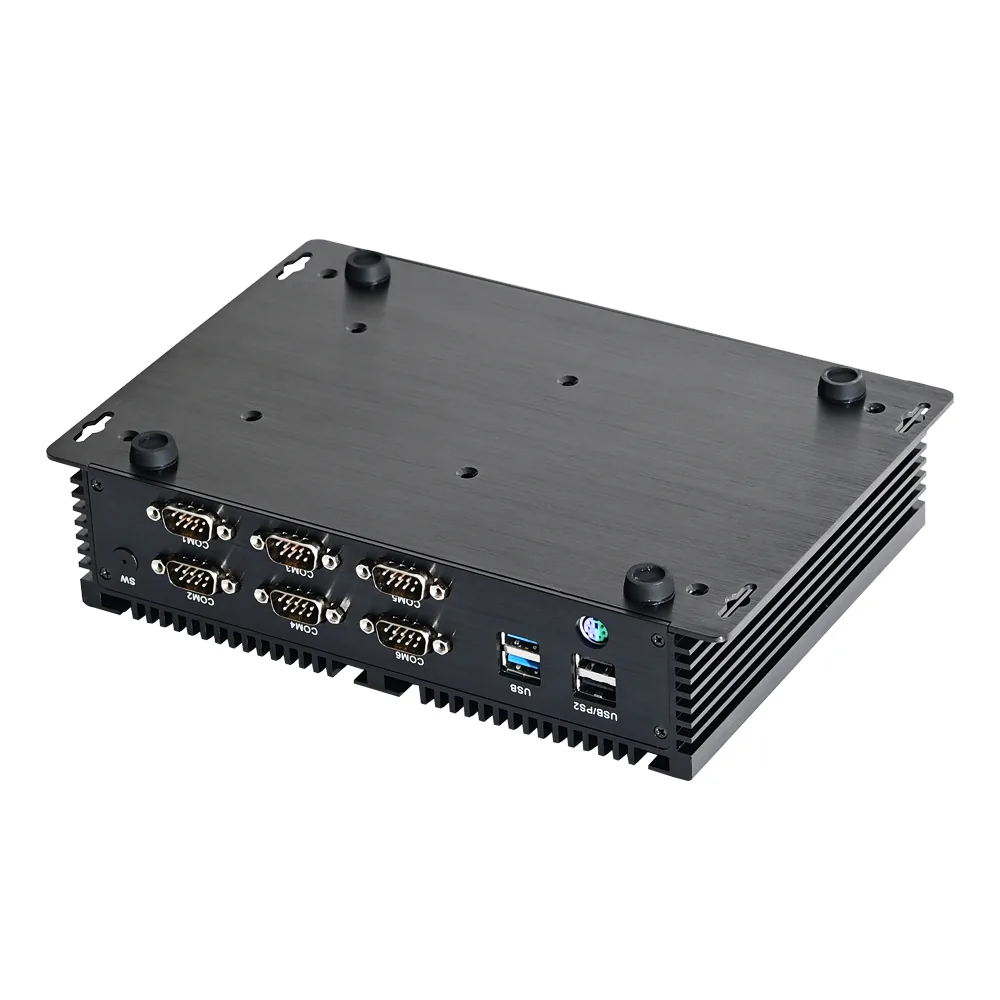

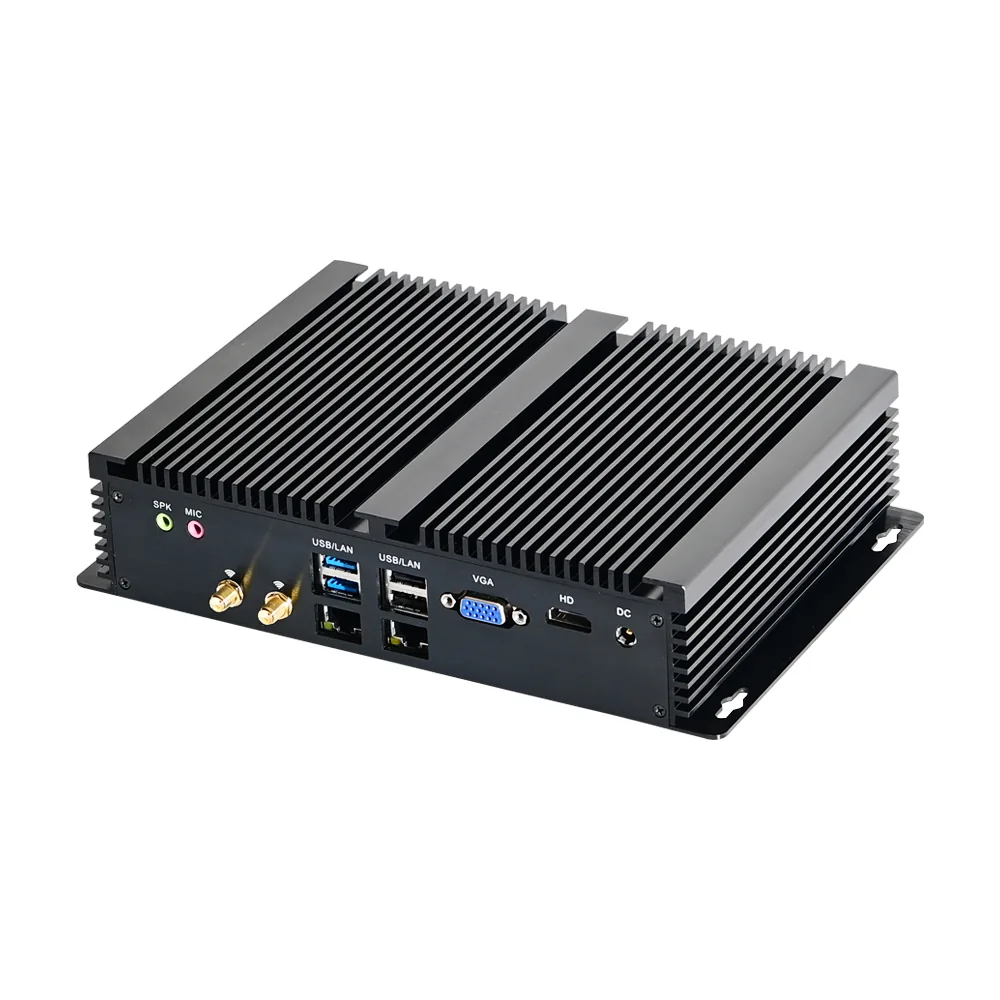

Product and interface views.

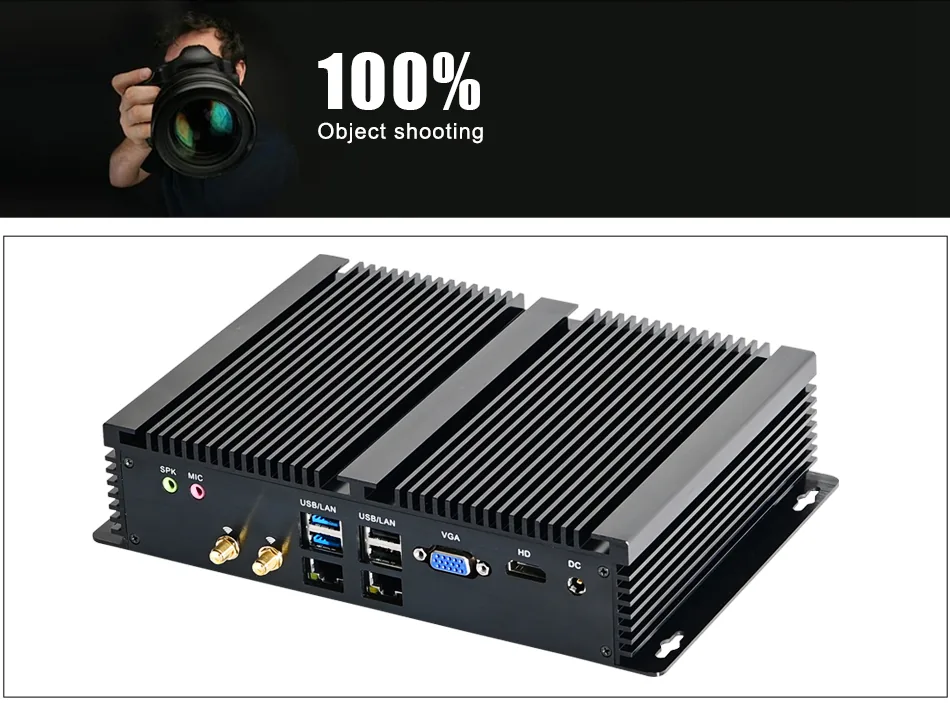

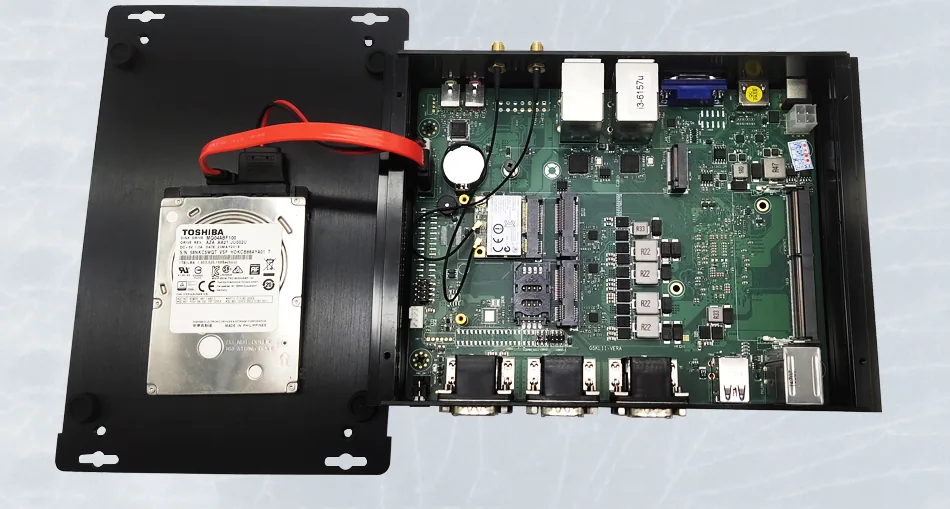

Detailed presentation

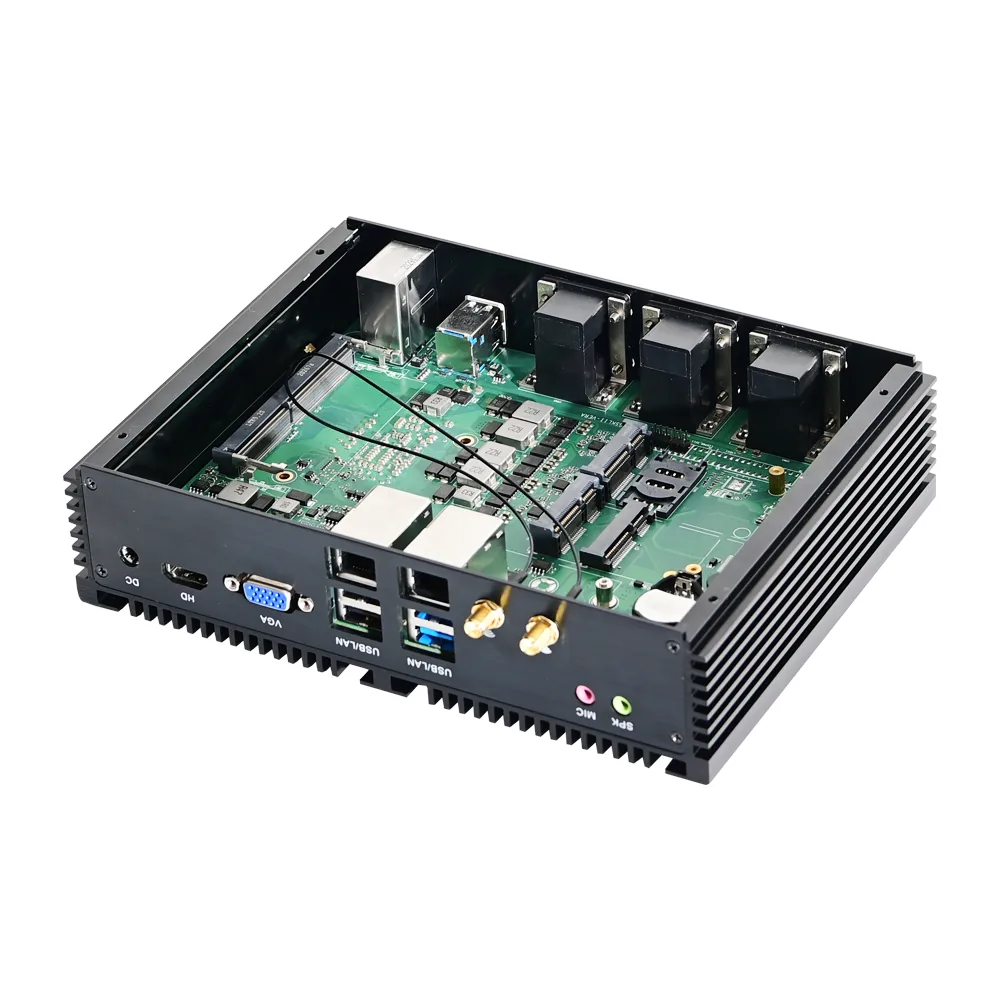

Product details and interface information.
Product video
G10 Fanless Industrial Mini PC overview
Applications
Typical deployment environments.
- Automation equipment
- Digital signage
- IoT systems
- Gate access control
Project inquiry
Discuss your hardware and deployment requirements.
Send the required CPU, memory, storage, network, serial-port, operating-system, and deployment quantity for a quotation.
