A fanless industrial computer with six RS232 COM ports, dual Intel Gigabit LAN, and stable 24/7 operation.
Industrial
G1 Industrial Mini PC
A fanless industrial computer with six RS232 COM ports, dual Intel Gigabit LAN, and stable 24/7 operation.
Product highlights
Built for reliable deployment.

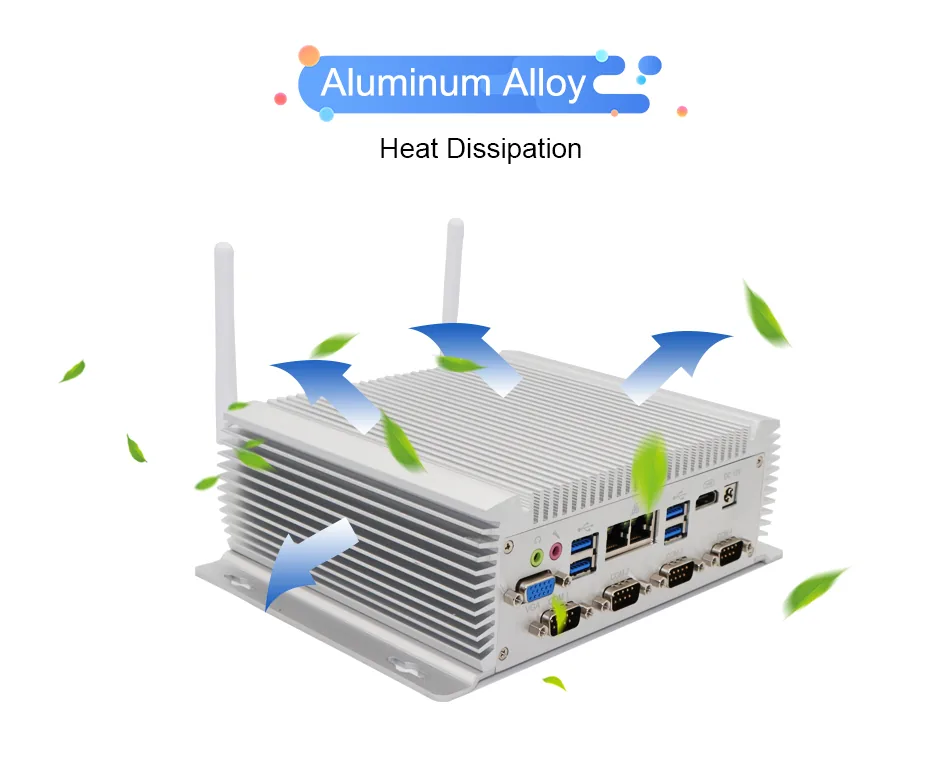

- Fanless full-aluminium chassis for industrial environments
- Six RS232 serial ports for equipment, control, and acquisition systems
- Dual Intel Gigabit Ethernet for network separation and redundancy

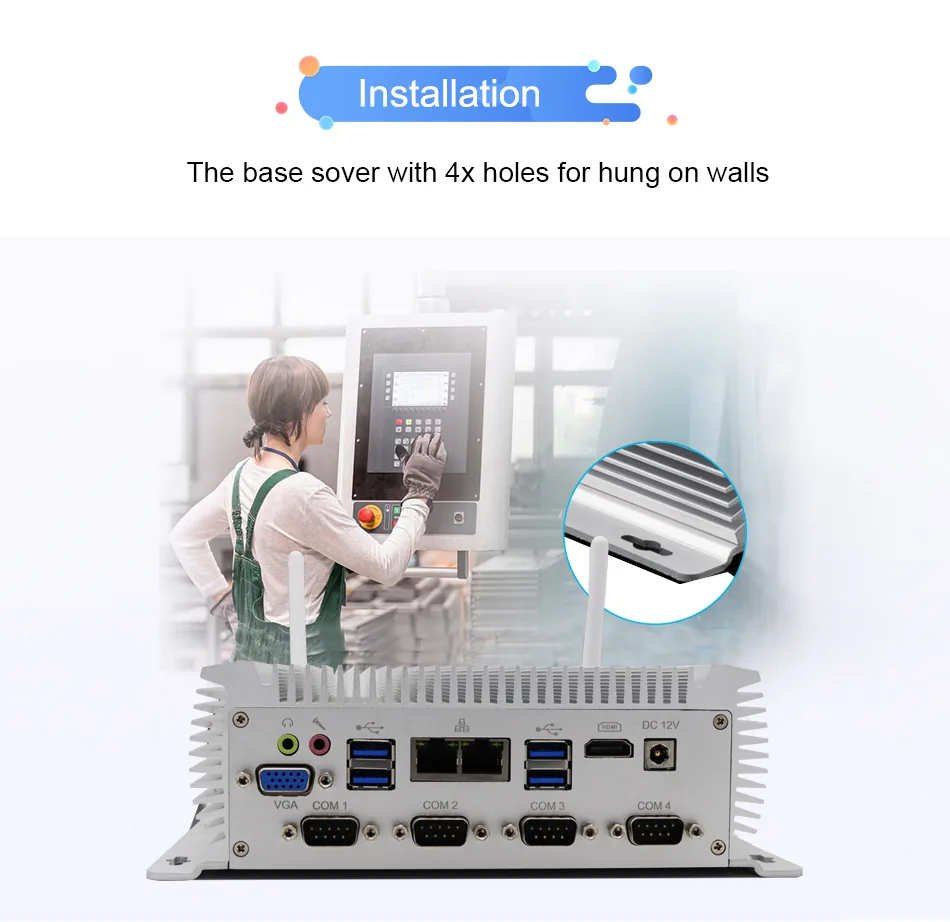

- Designed for 24/7 operation with wall and embedded installation support
Technical specifications
G1 specifications
| CPU | Intel Core i5-4200U / i7-4500U |
|---|---|
| Memory | 1 x DDR3L slot |
| Storage | 1 x mSATA 3.0 SSD slot; 1 x SATA 3.0 HDD or SSD slot |
| OS | Windows 7 / Windows 10 / Linux |

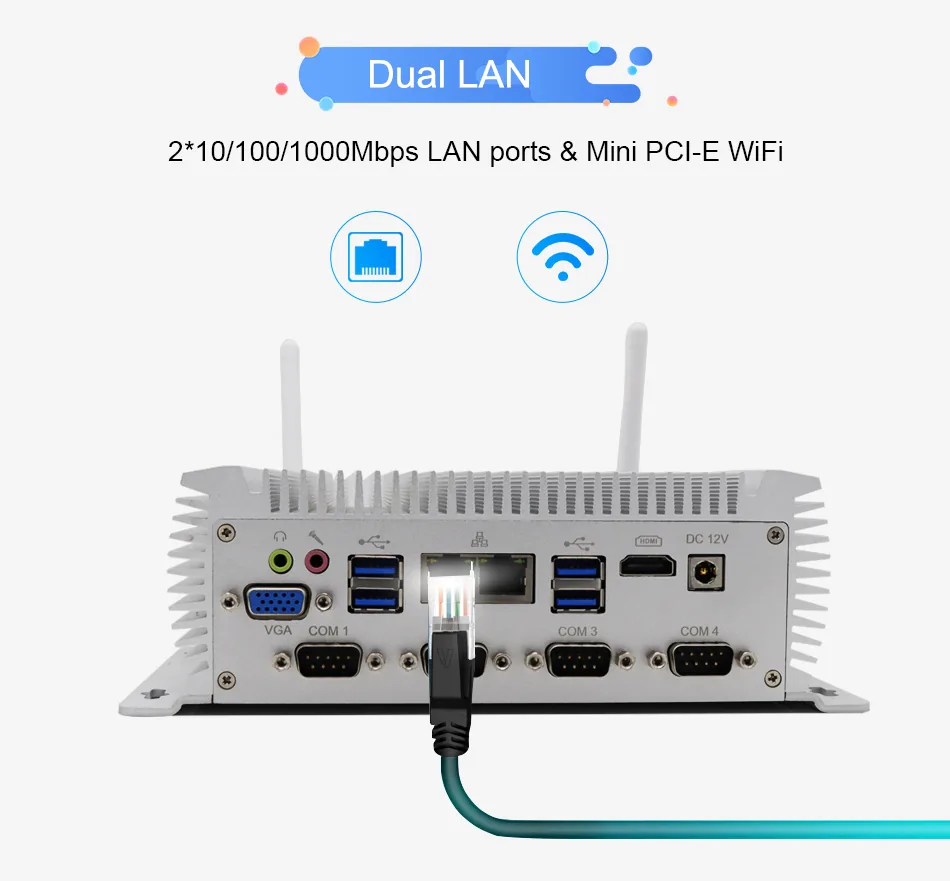

| Network | 2 x Intel i210 Gigabit LAN |
| Wi-Fi | 1 x Mini PCIe half-size slot |
| Cooling | Fanless |

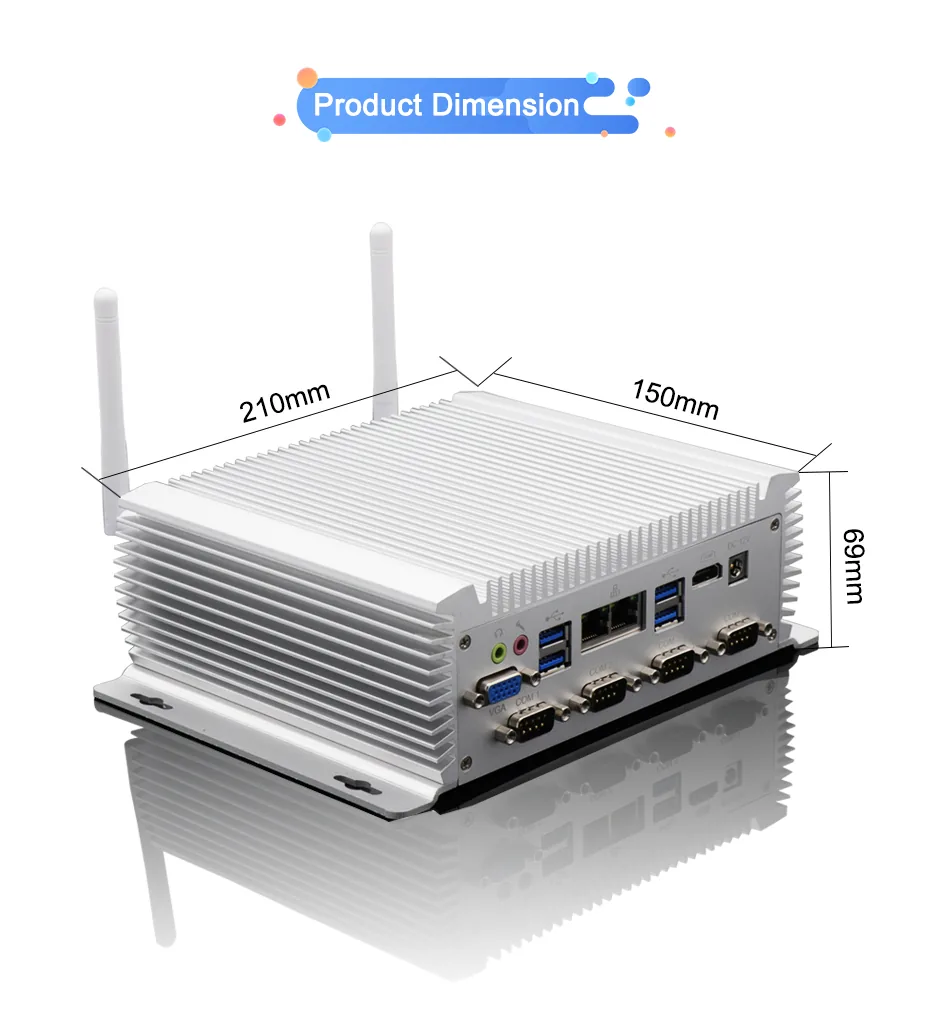

| Dimensions | 210 x 150 x 69 mm |

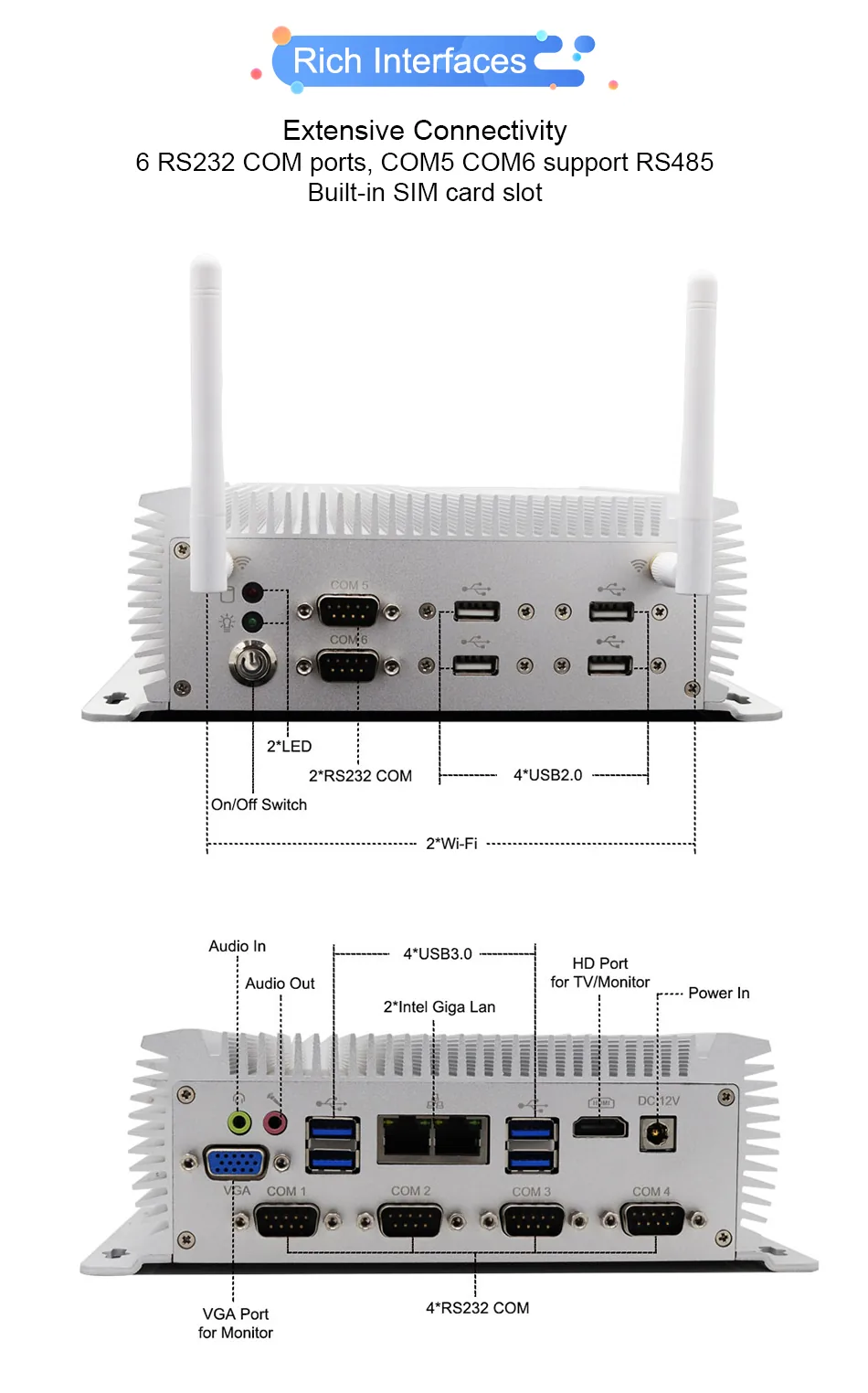

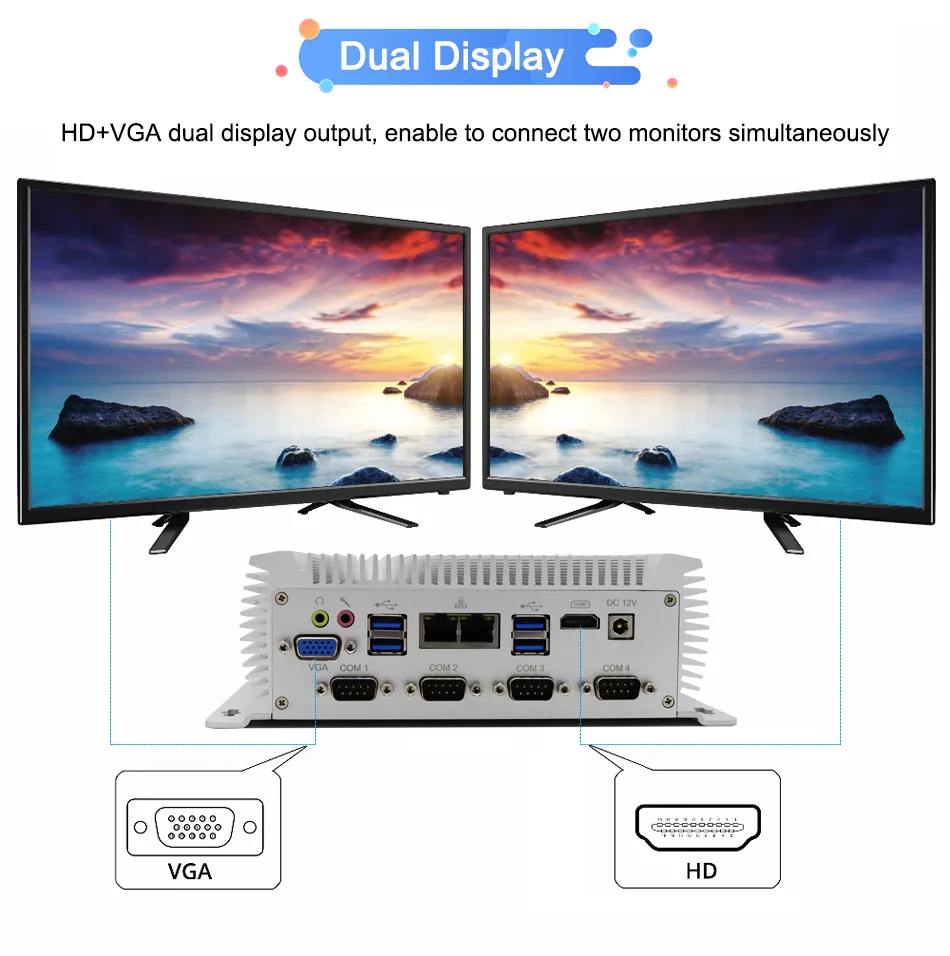

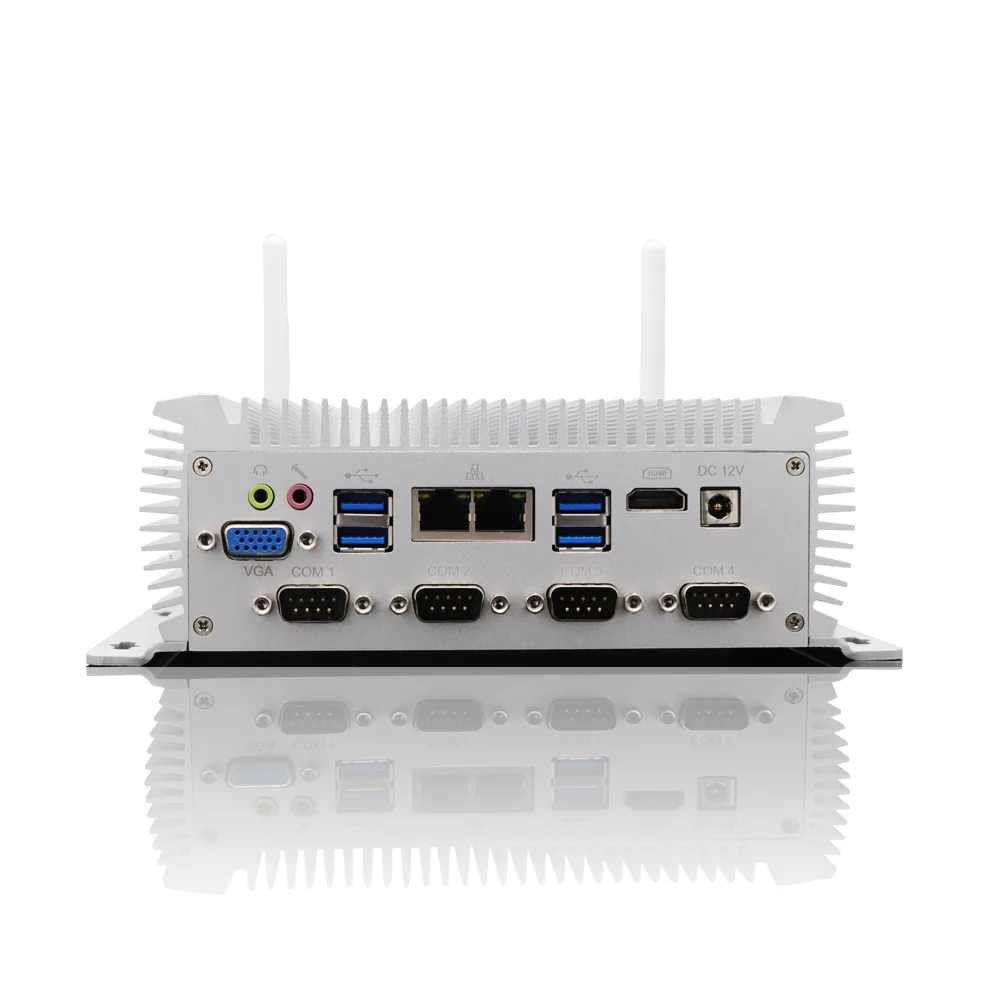

| I/O | 12V DC; 4 x USB 2.0; 4 x USB 3.0; VGA; HDMI 1.4; 6 x RS232 COM; 2 x RJ45; MIC; SPK; SIM |

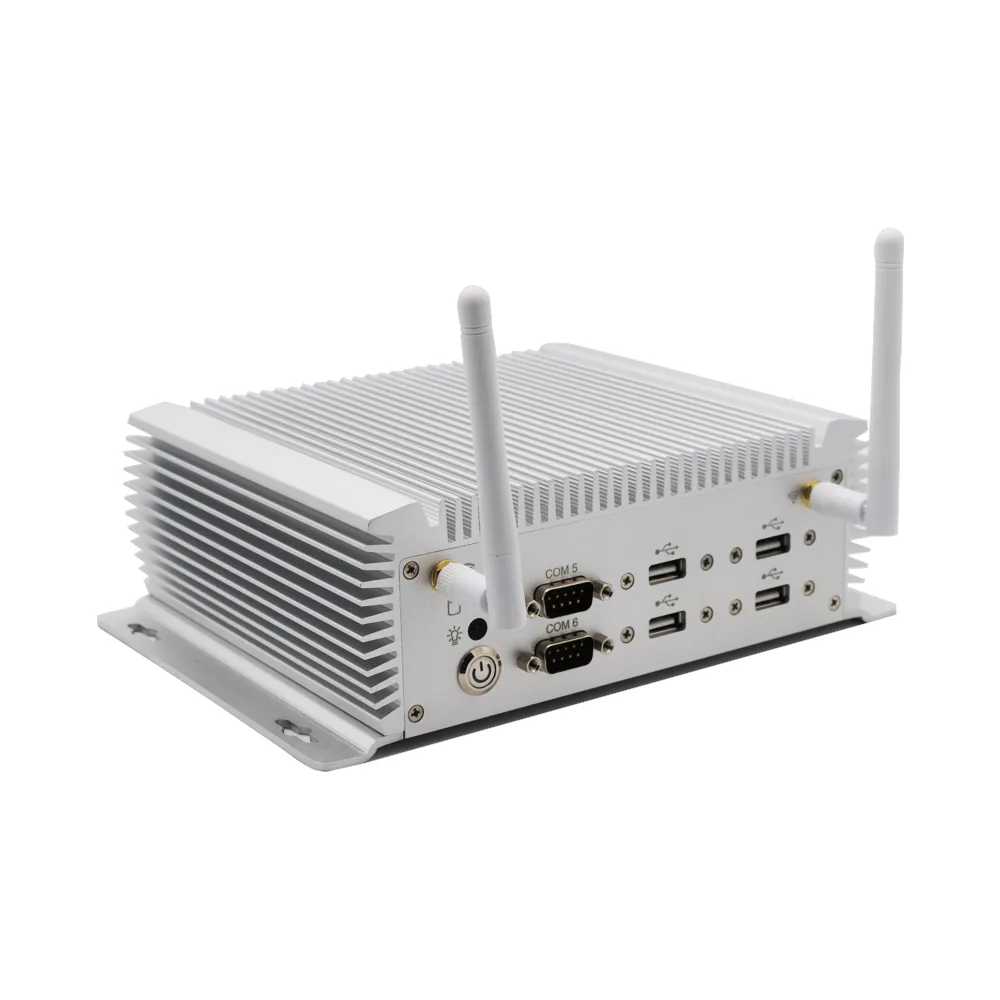

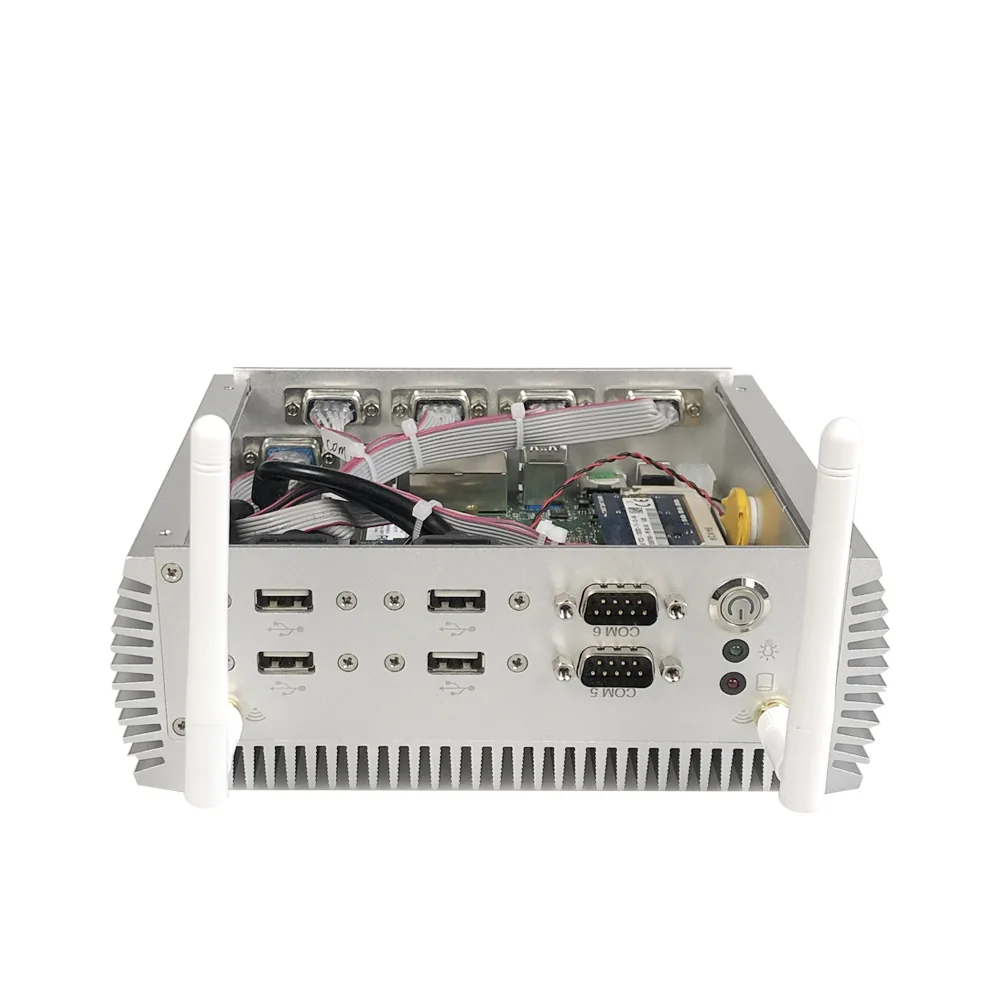

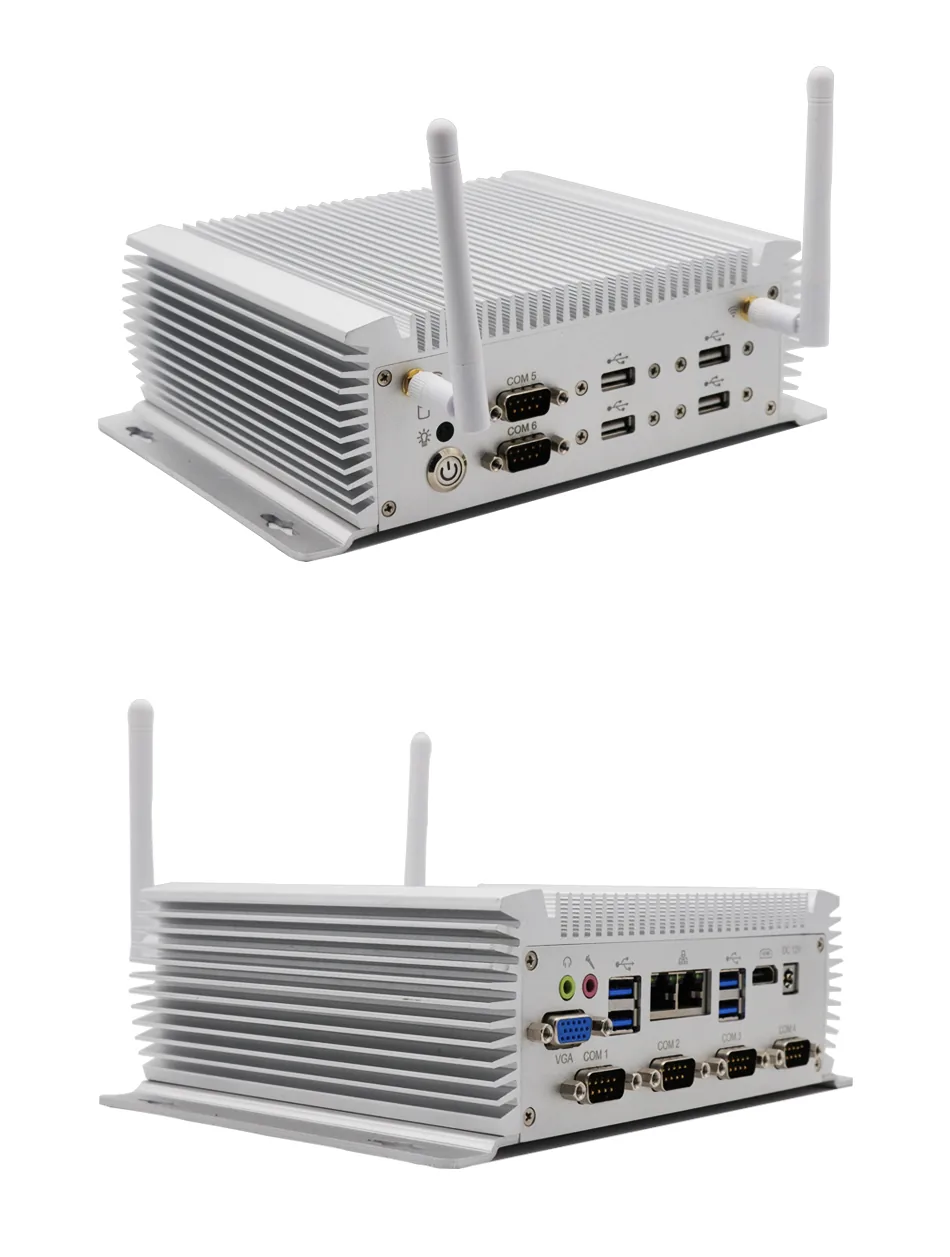

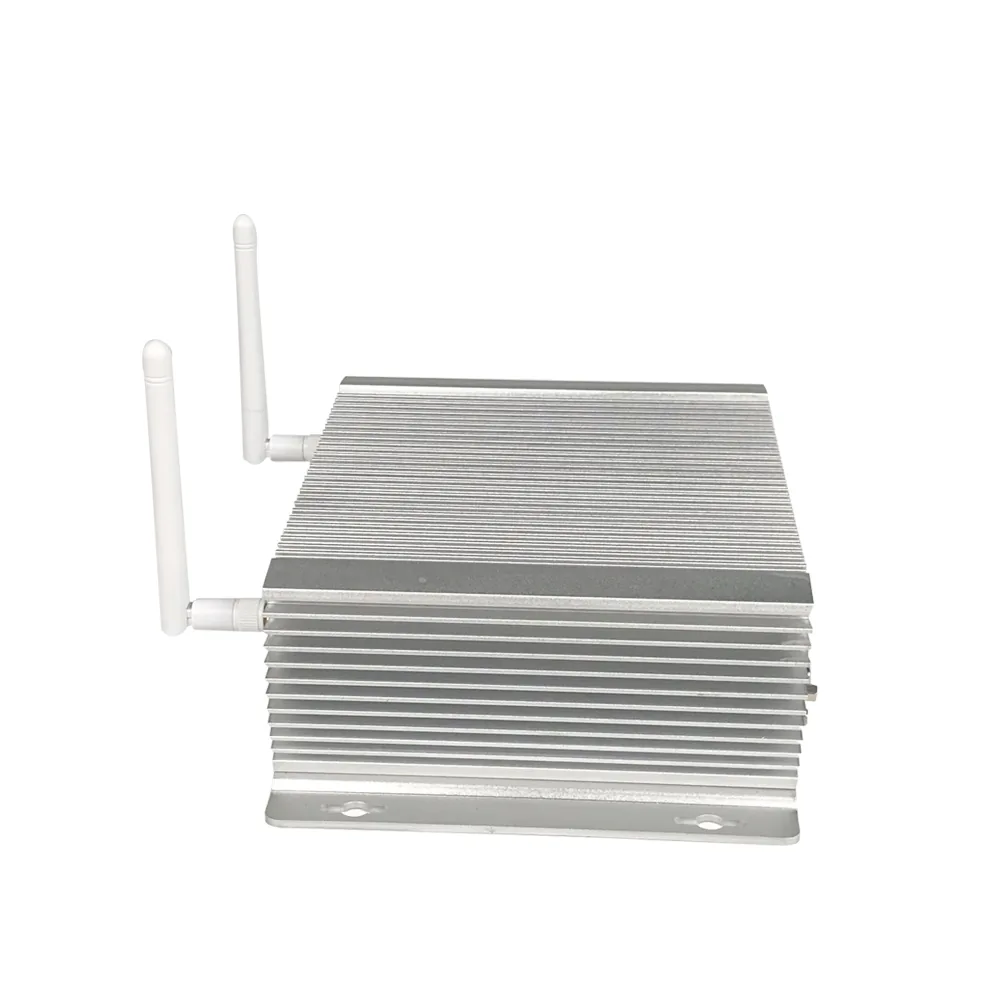

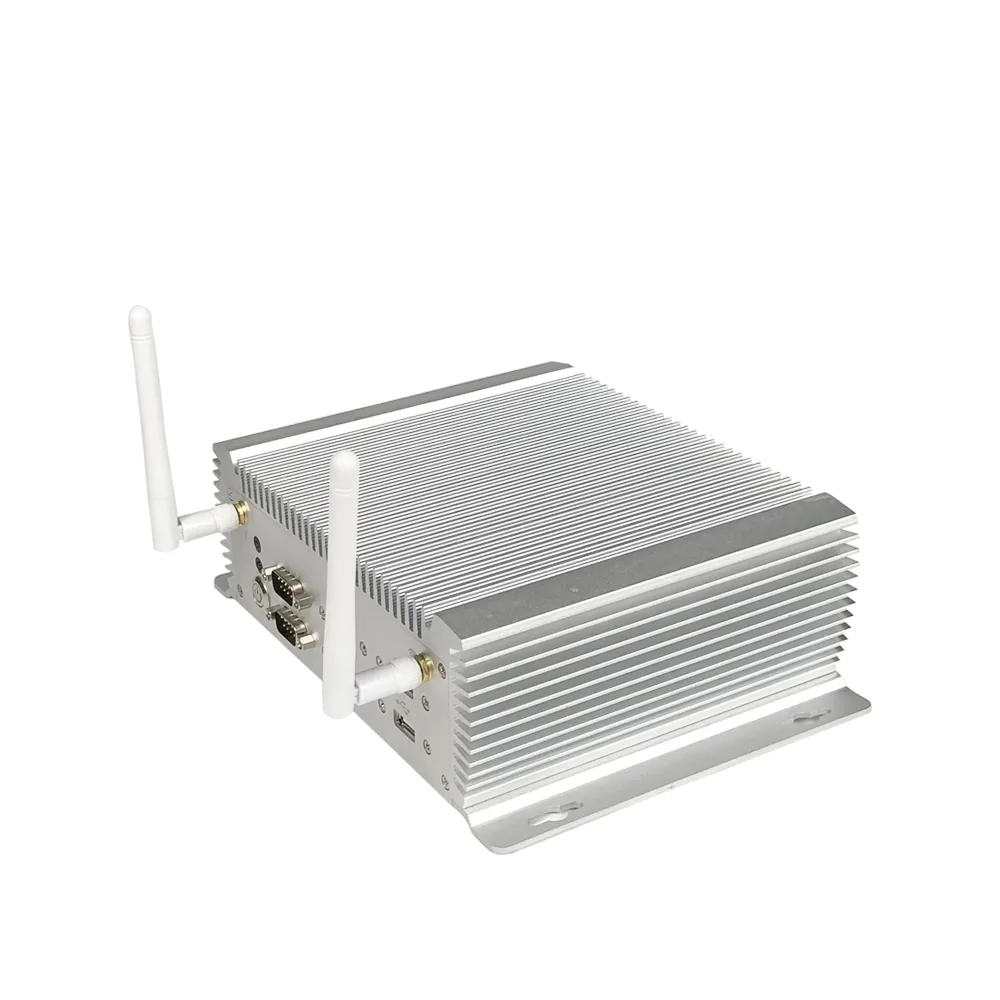

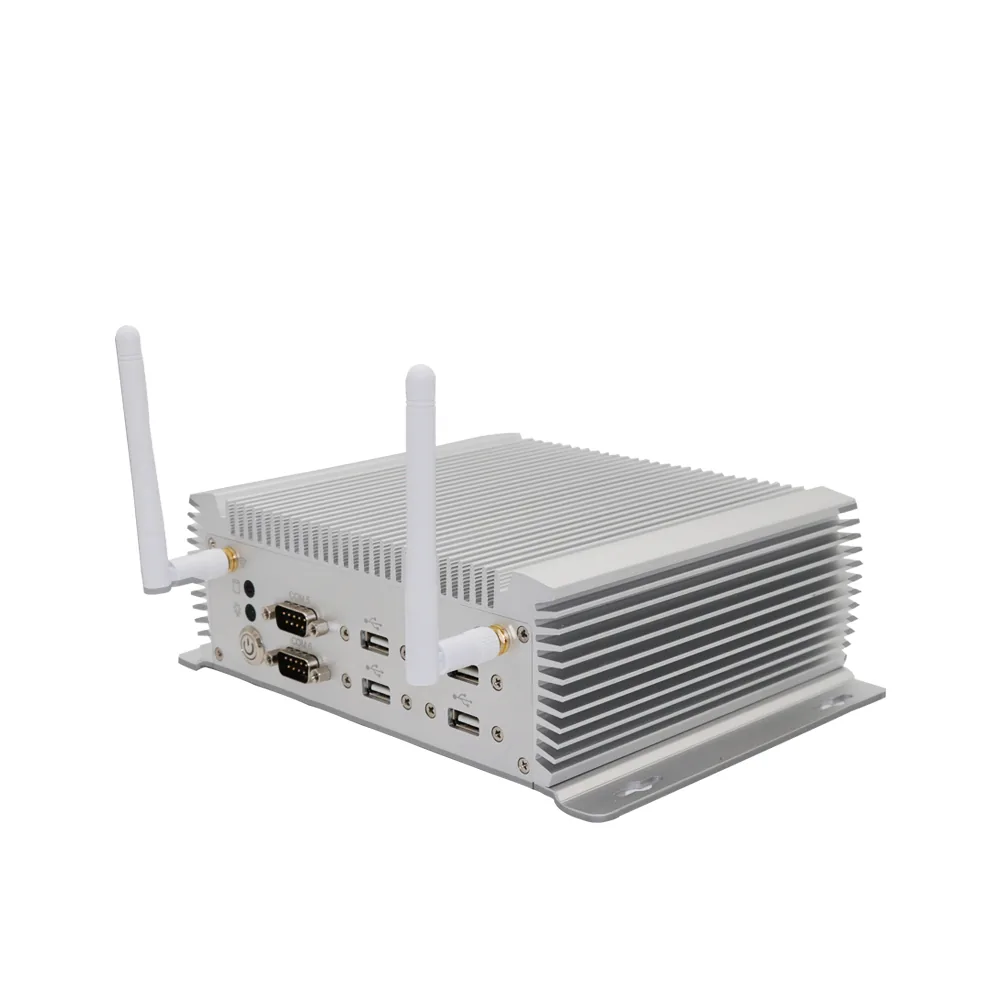

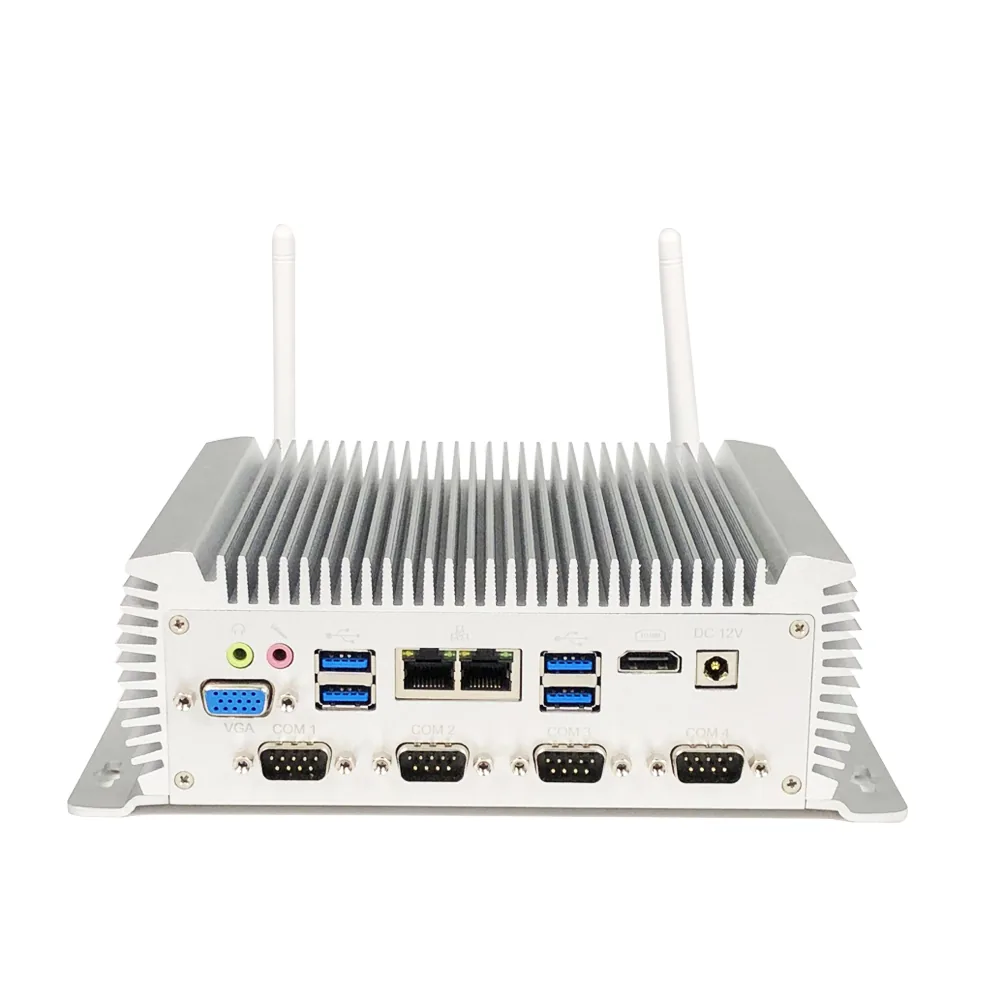

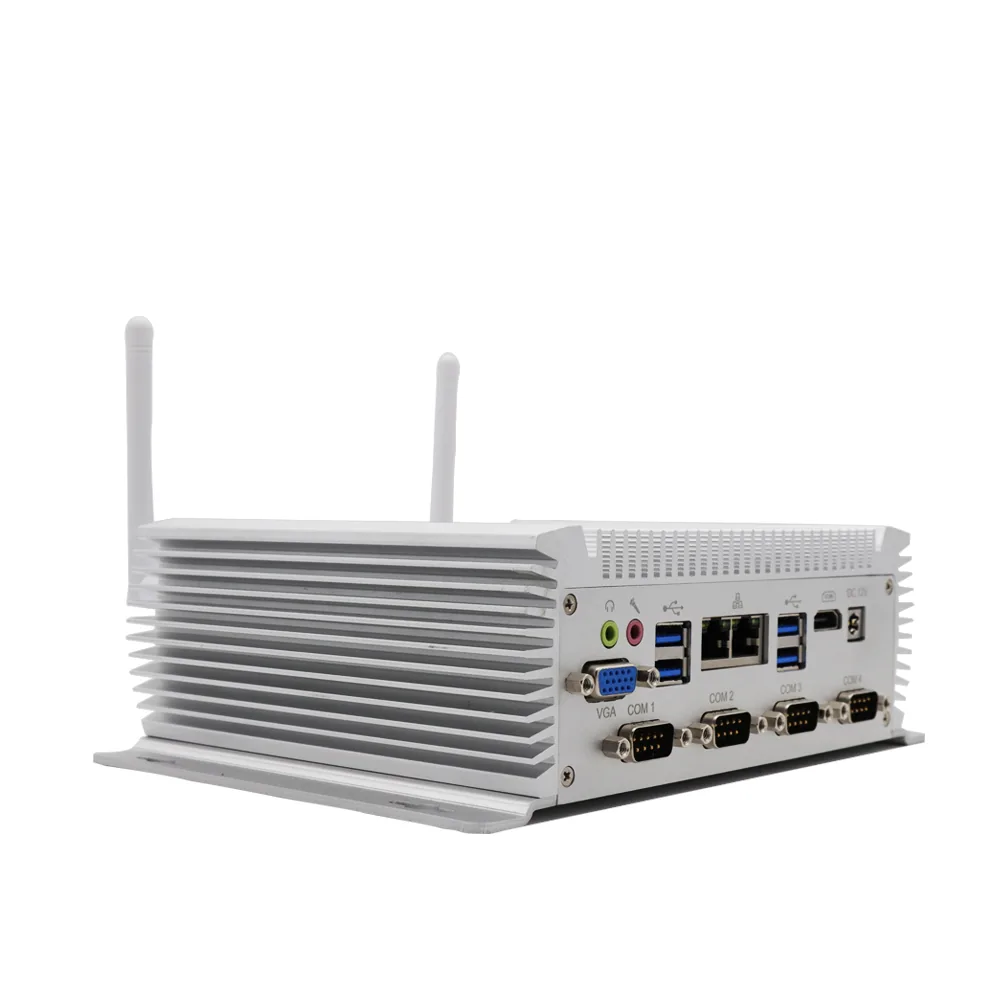

Product gallery

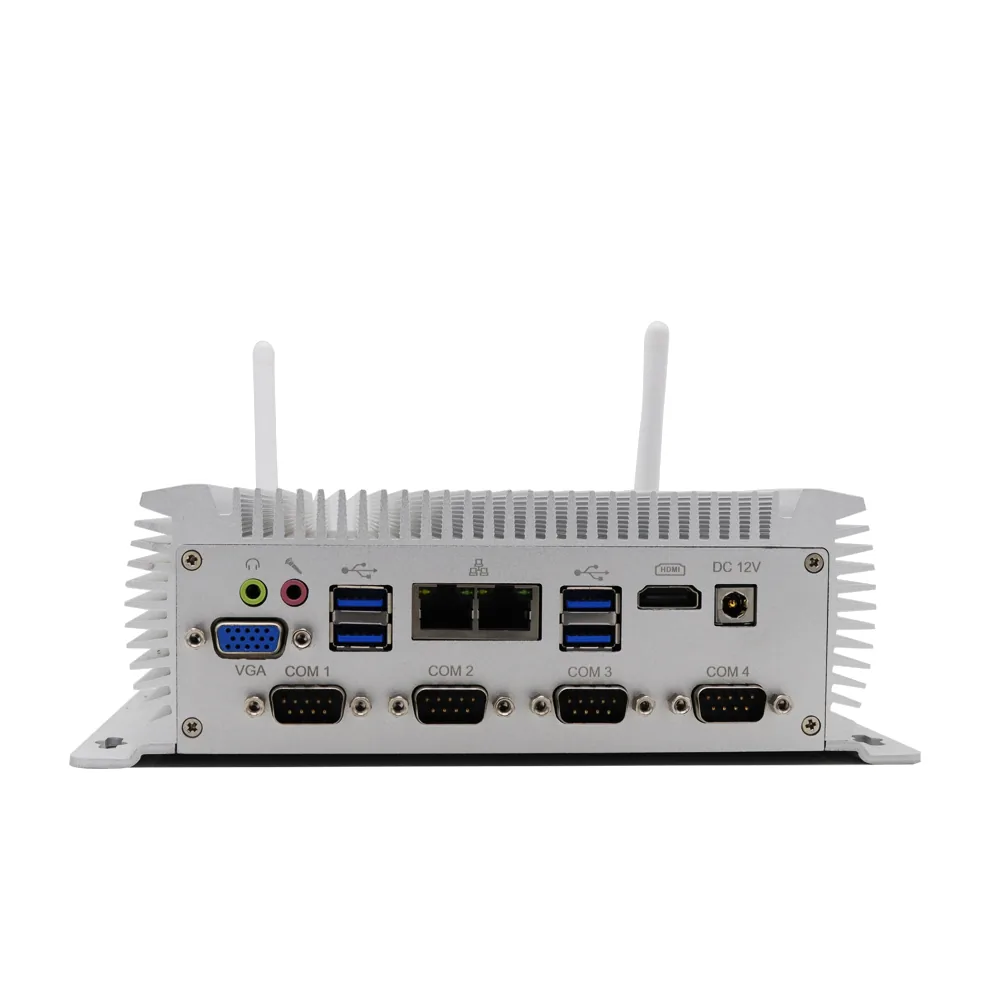

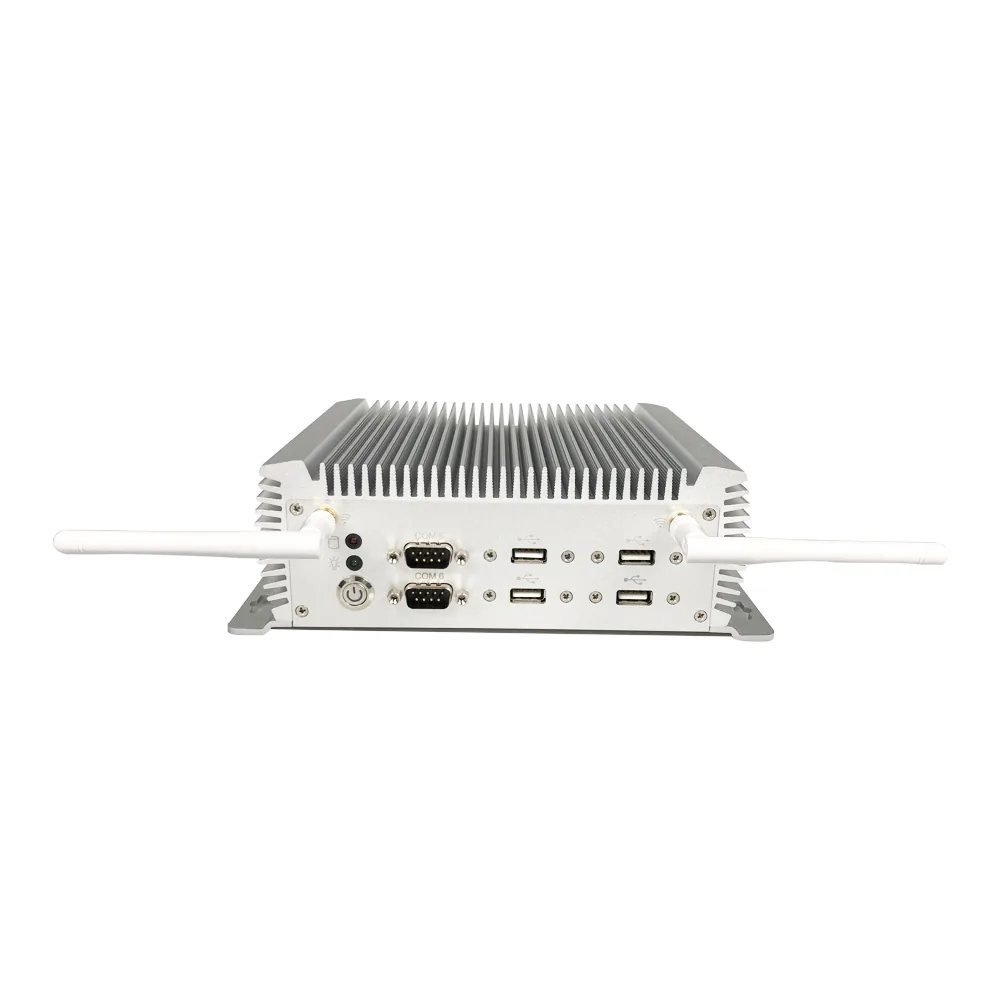

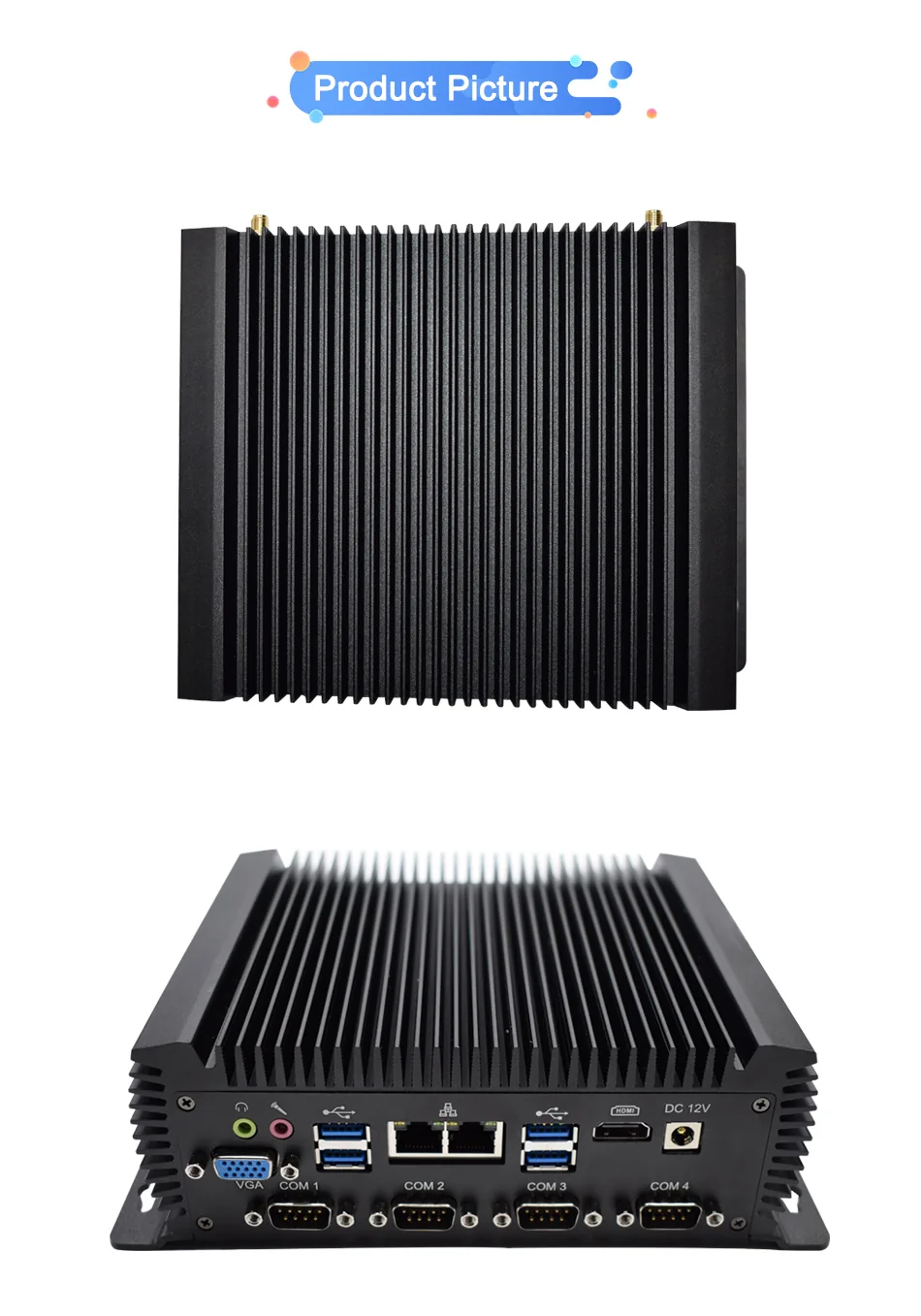

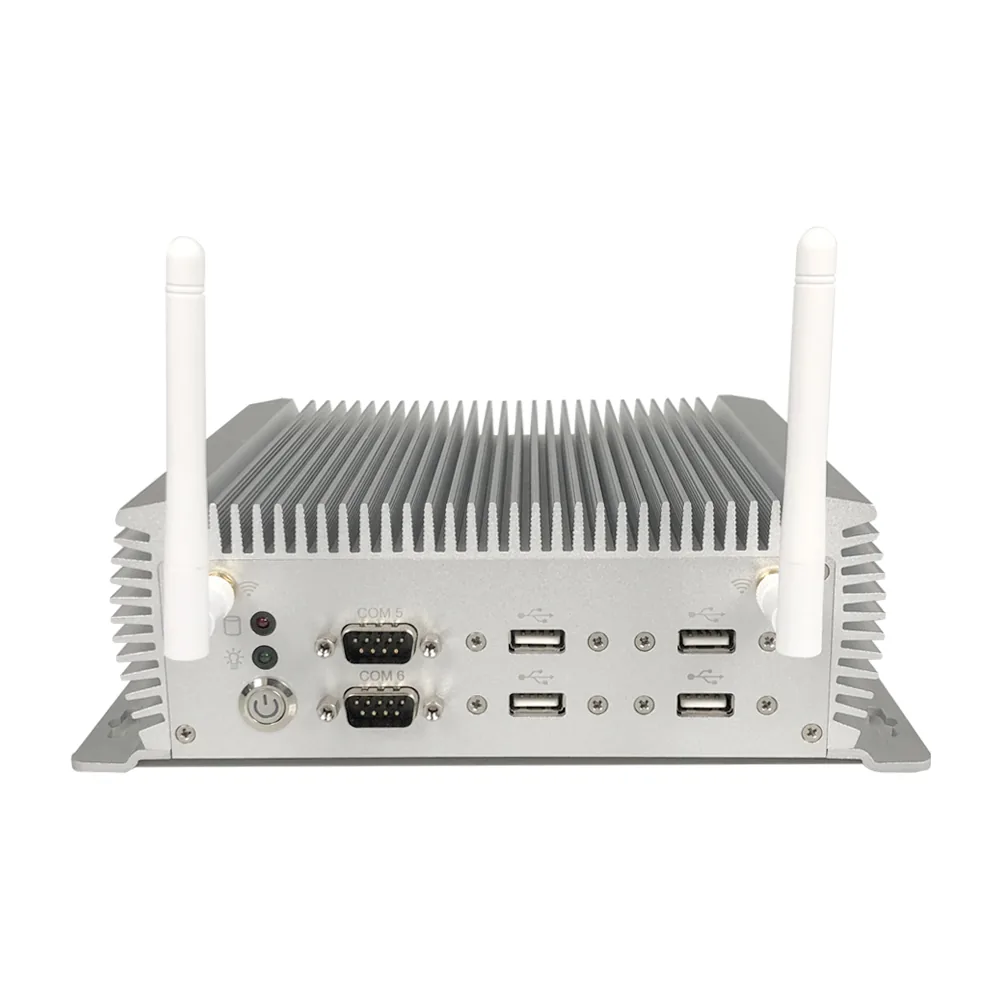

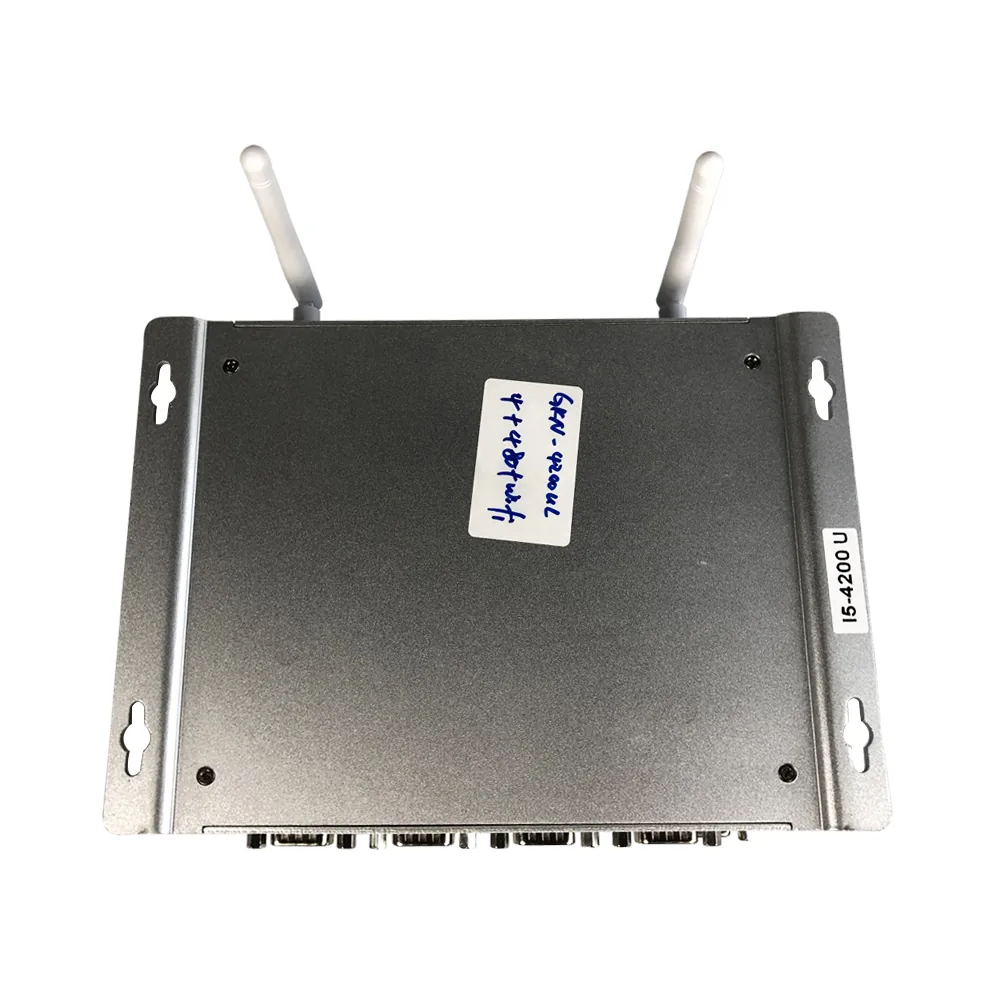

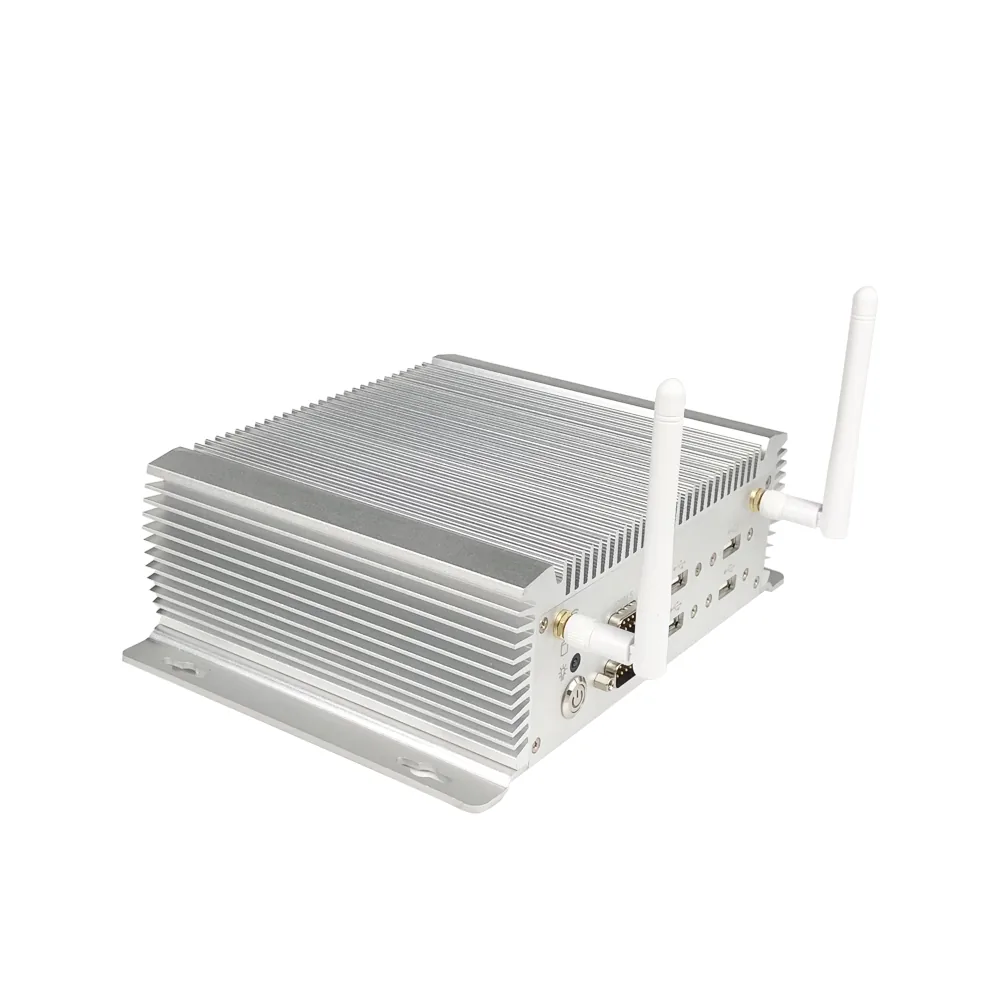

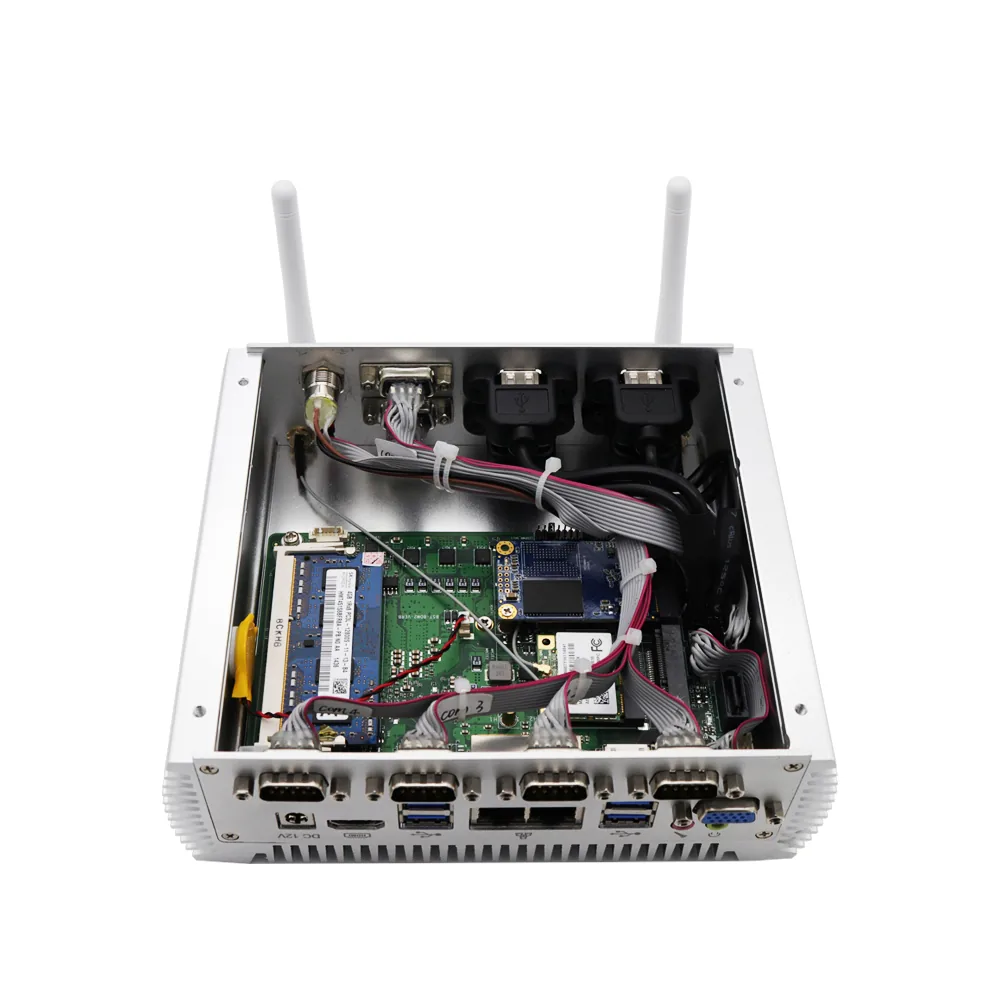

Product and interface views.

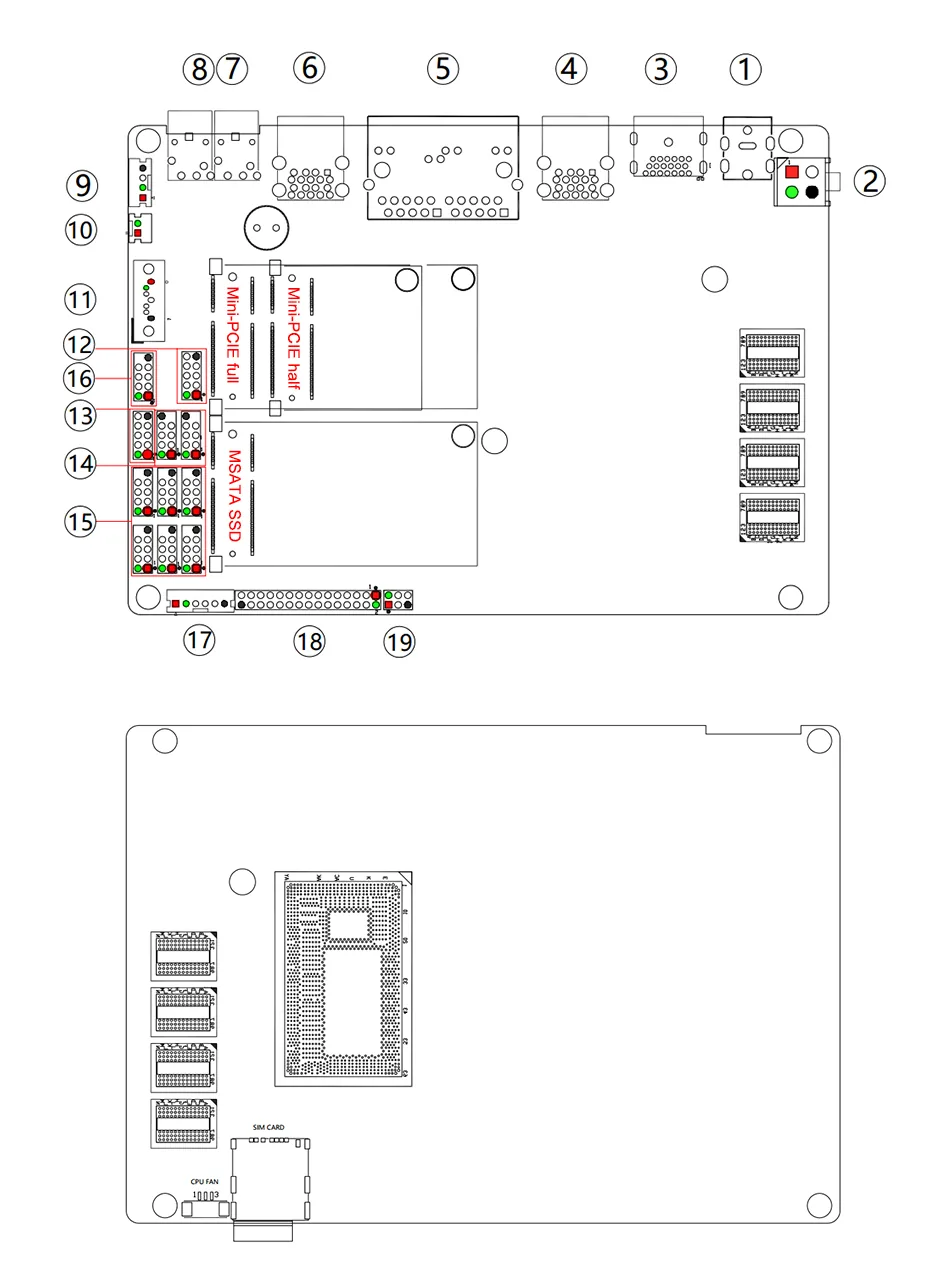

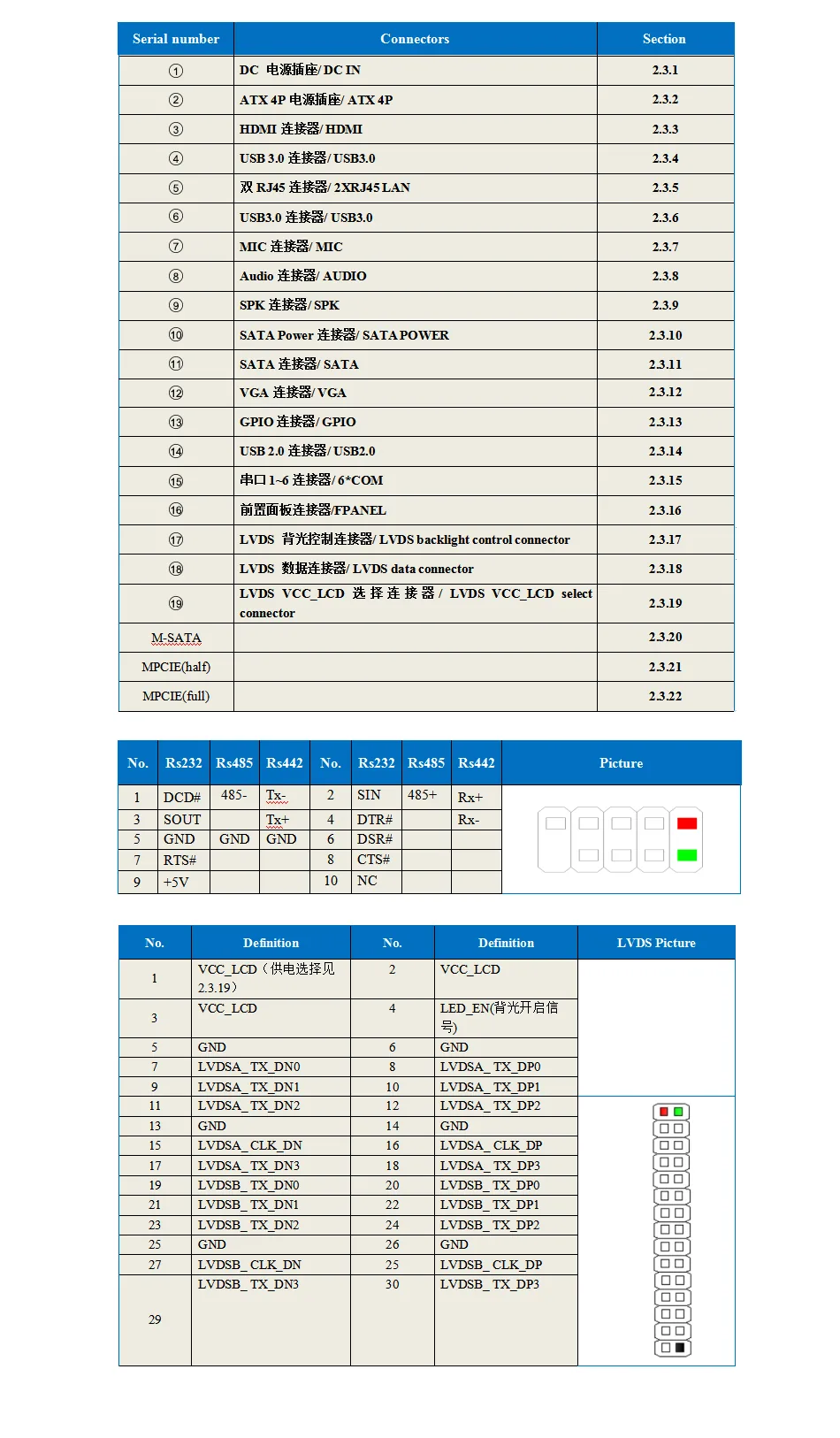

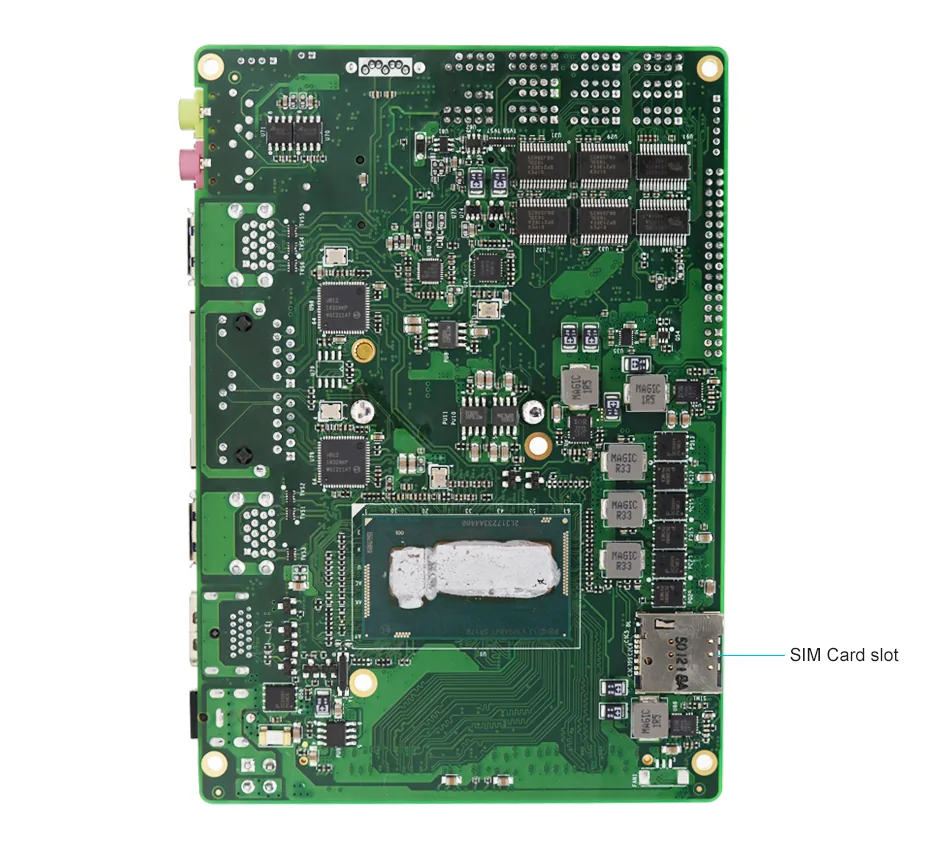

Detailed presentation

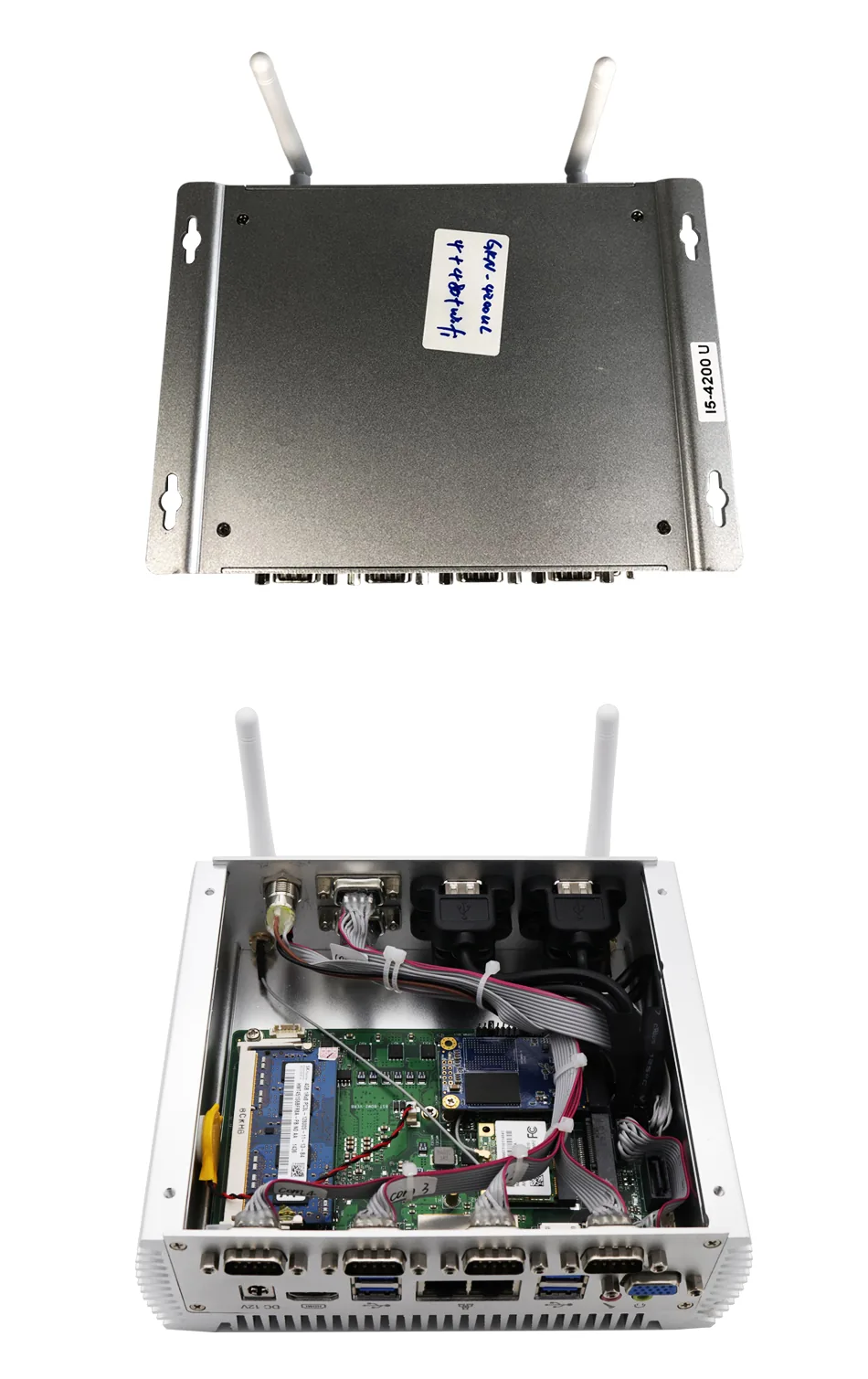

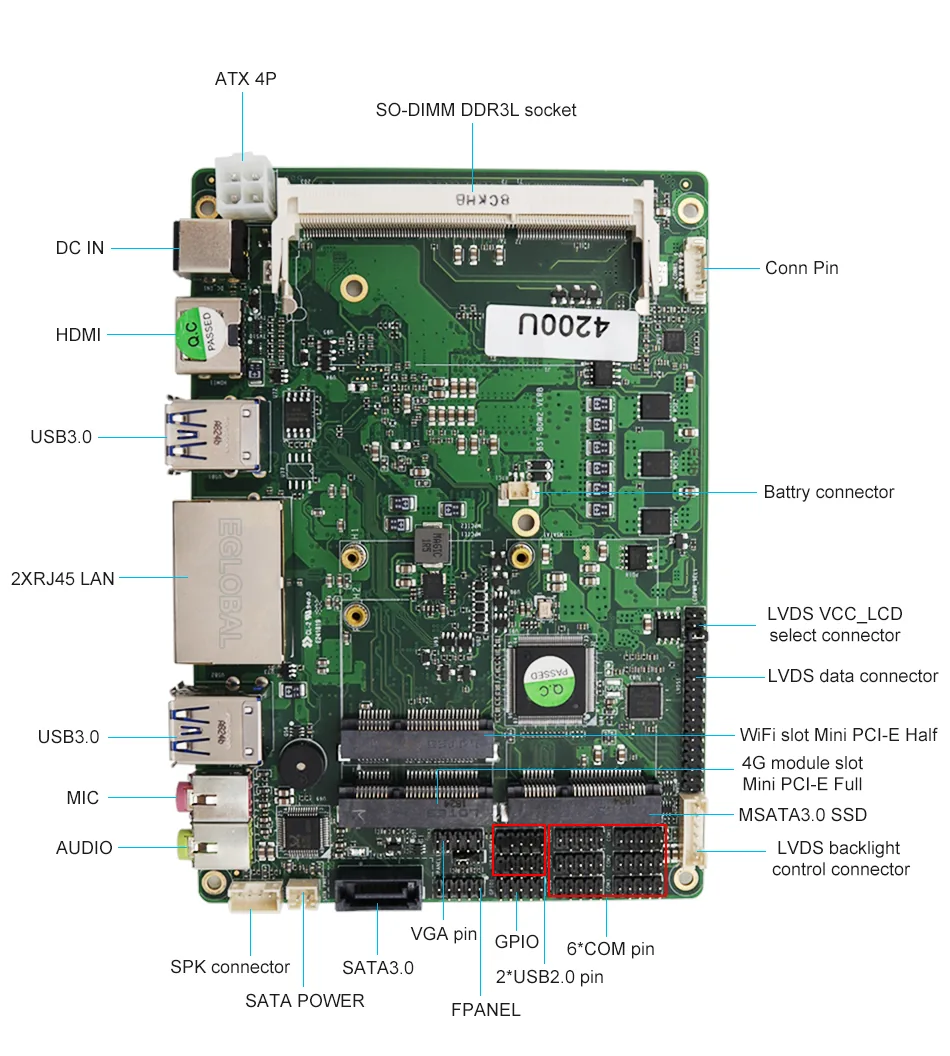

Product details and interface information.
Product video
G1 Industrial Mini PC overview
Applications
Typical deployment environments.
- Factory automation
- Access control
- Industrial kiosks
- Data acquisition
Project inquiry
Discuss your hardware and deployment requirements.
Send the required CPU, memory, storage, network, serial-port, operating-system, and deployment quantity for a quotation.
Industrial Mini PC deployment planning
The G1 Mini PC is intended for commercial and industrial environments where reliability, connectivity and continuous operation matter. Before finalizing a configuration, confirm the operating temperature range, mounting method, power requirements, available network connections and any vibration or dust exposure in the installation area.
Interface planning is equally important. List the required serial ports, USB connections, display outputs, LAN speed, digital I/O and expansion needs up front so the system can be reviewed against the actual equipment it will control or communicate with.
For project quotations, include the operating system, processor class, memory, storage, quantity, target market and expected deployment date. Final compatibility, certification scope, lead time and warranty terms are confirmed in writing after the requirements review.
