COB Texture LED Display
A high-end COB texture display that blends into architectural finishes when switched off and delivers smooth close-viewing performance when switched on.
Product Highlights

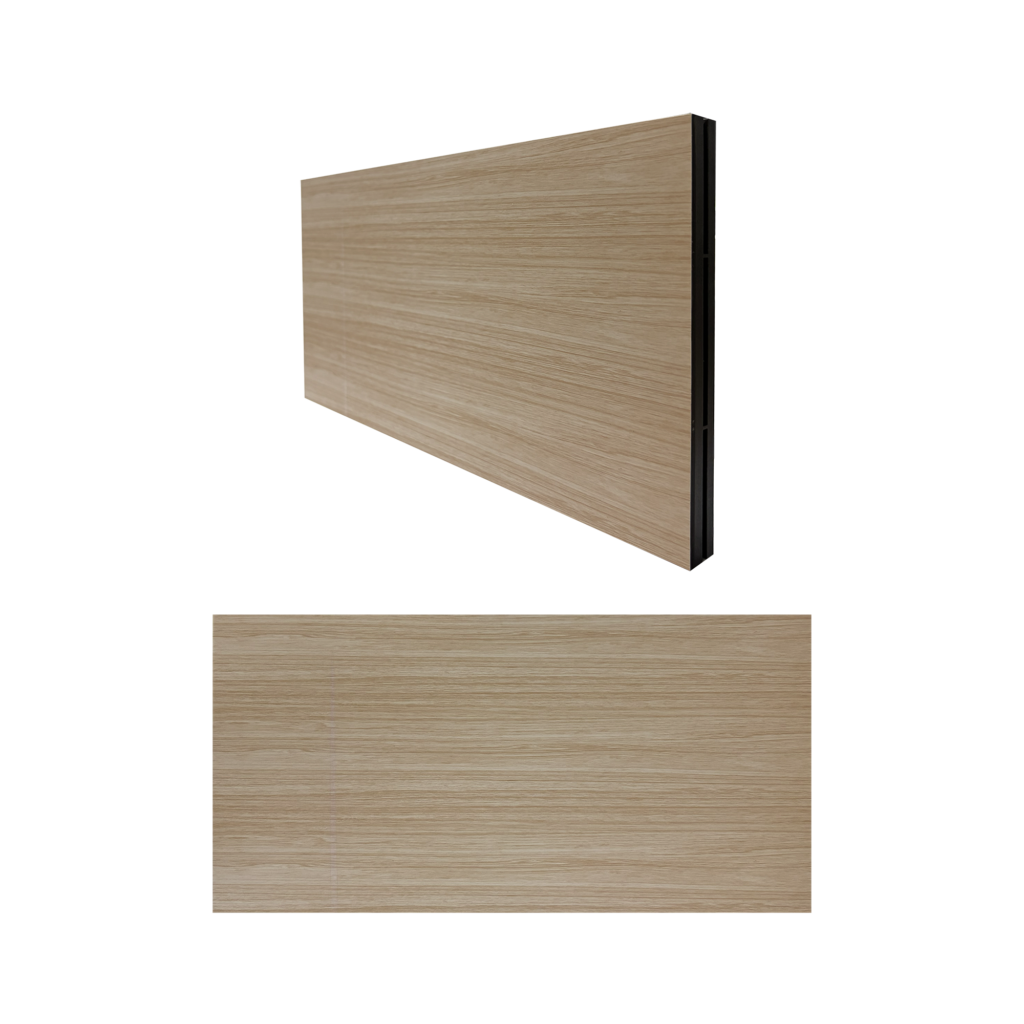

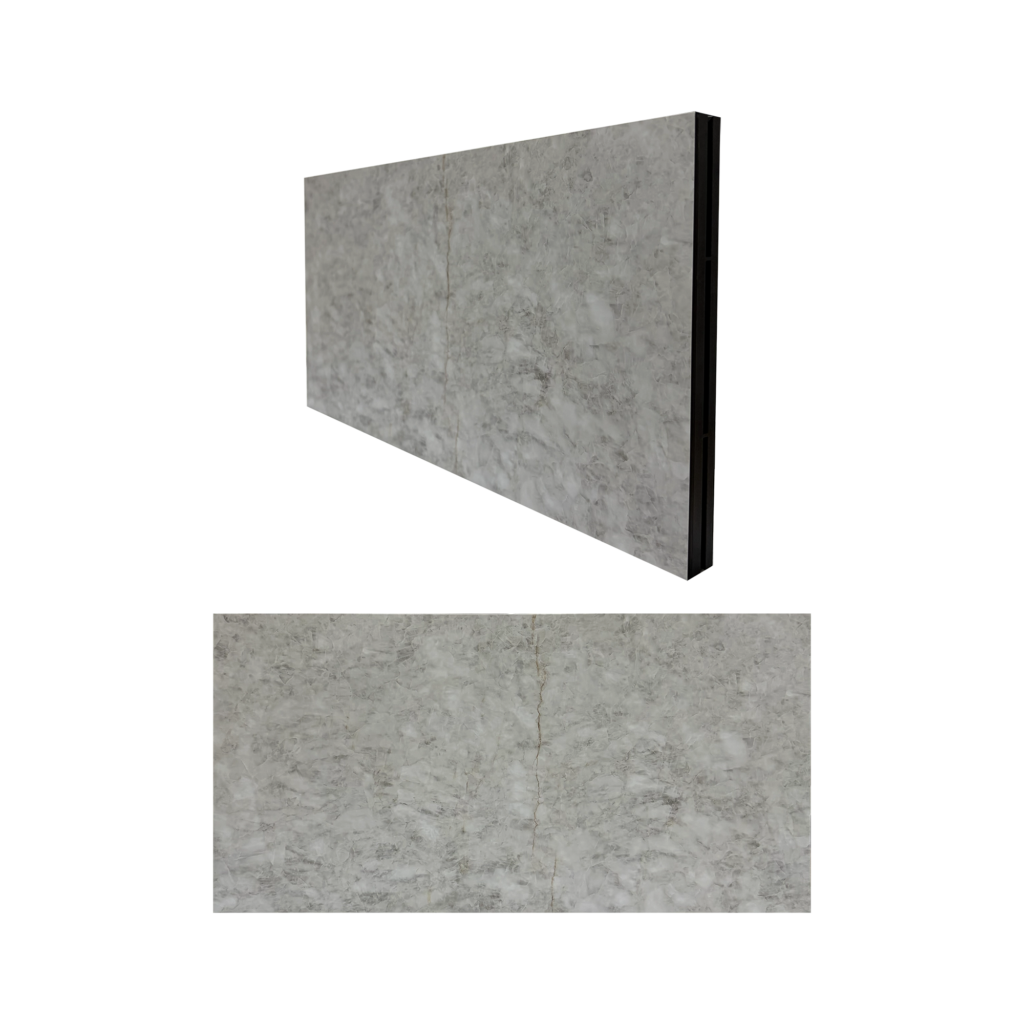

- Off-state wood, marble, metal, cement, tile, and leather texture options
- COB surface light source reduces glare, grain, and ghosting
- Wide viewing angle and smooth close-distance image quality
- High impact, dust, and moisture resistance with 3H surface hardness
- Lower dead-pixel rate and simplified long-term maintenance

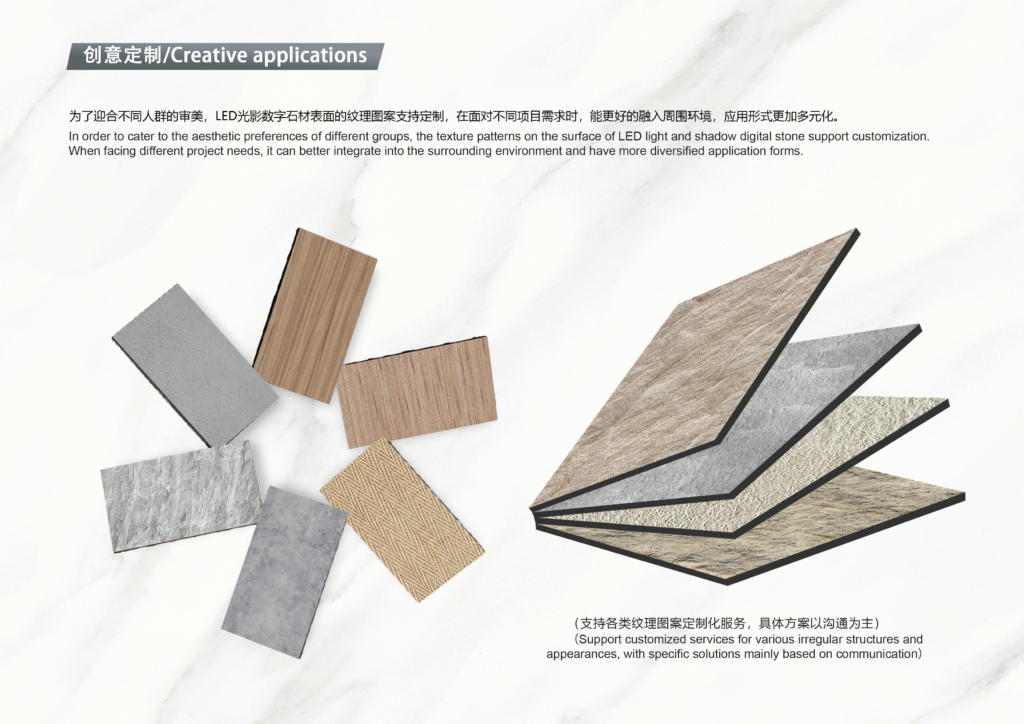

- Blends display technology into architectural and interior design

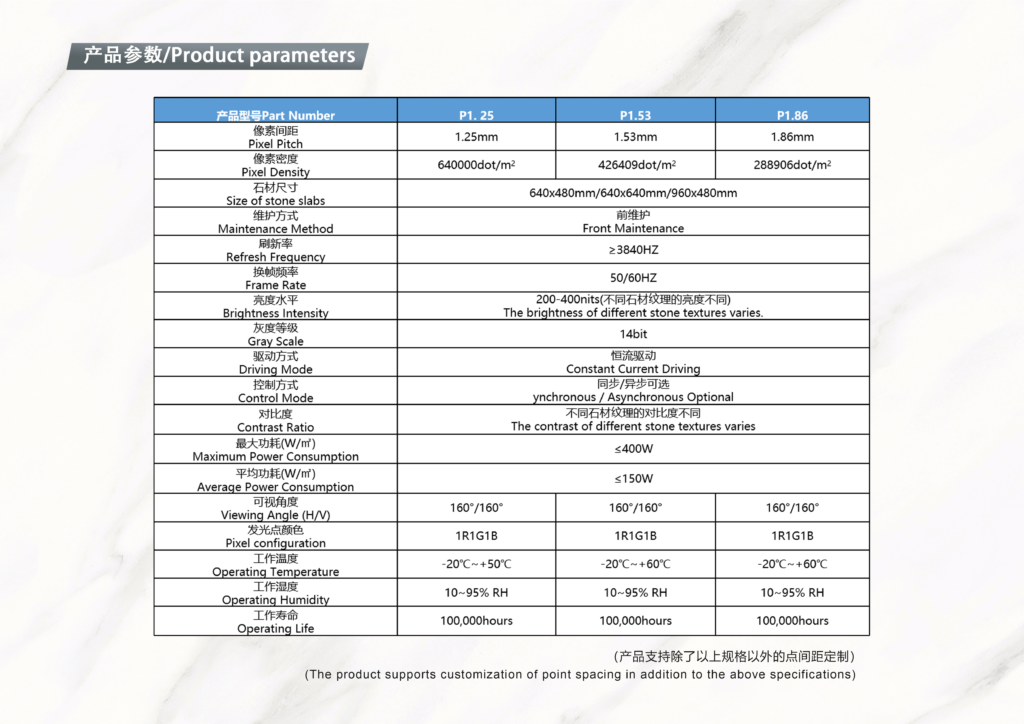

Technical Specifications
| Pixel Pitch | P0.93 / P1.25 / P1.56 |
| Module Size | 320 x 160mm |
| Cabinet Size | Custom |
| Refresh Rate | >=3,840Hz |
| Protection Rating | Indoor IP54 or higher |

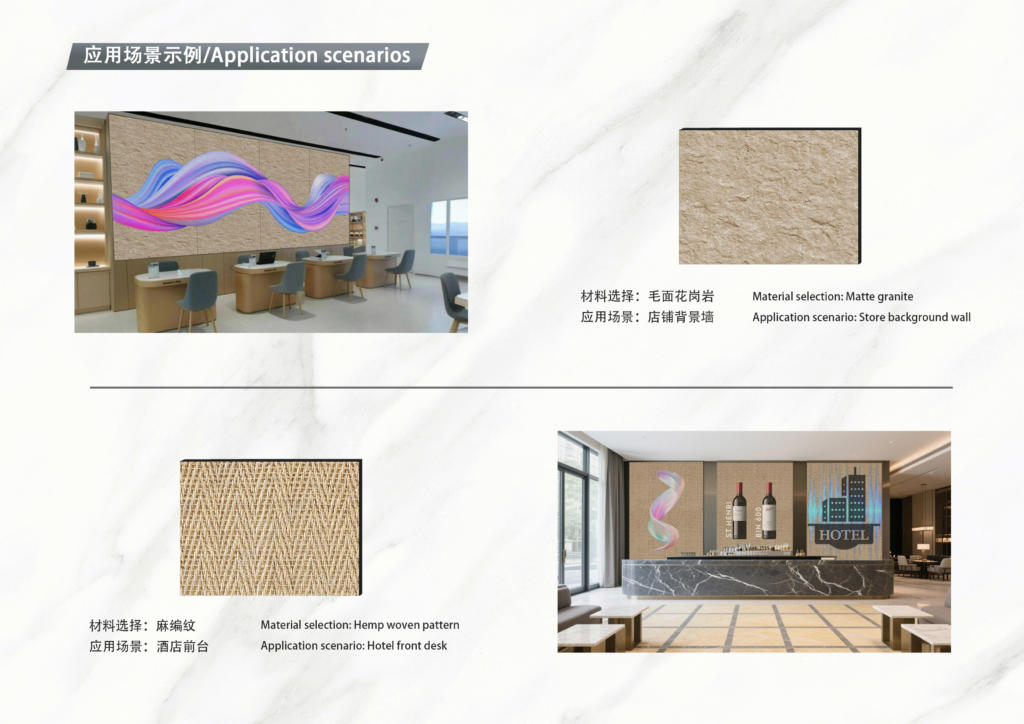

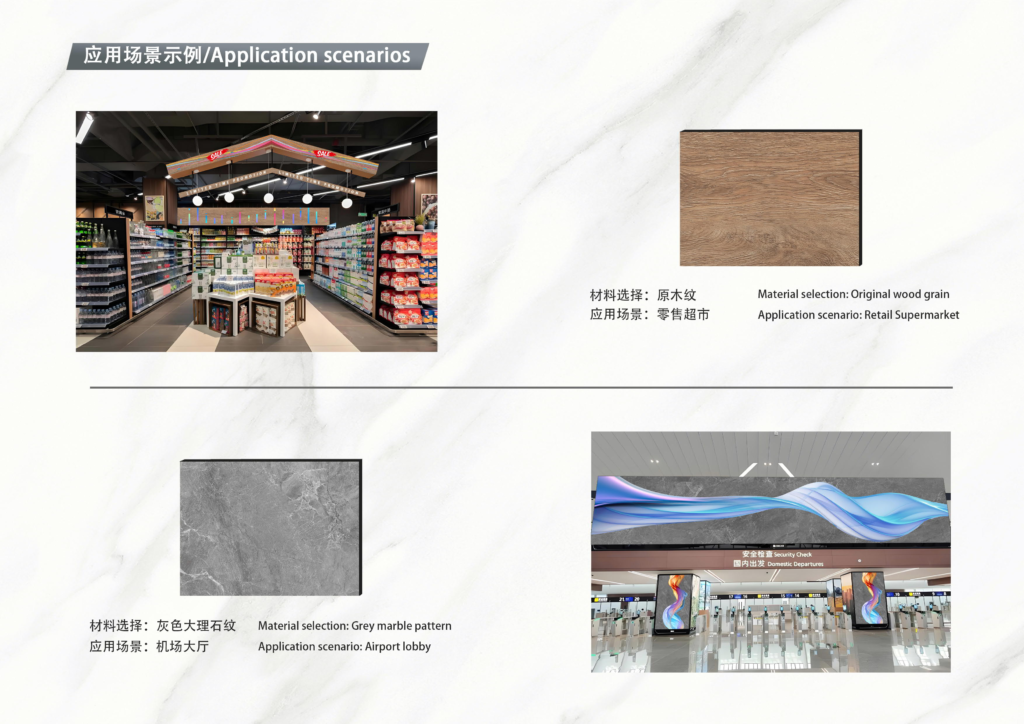

Applications
- Luxury hotels
- Brand showrooms
- Commercial spaces
- Interior architecture
Product Gallery
LED display selection and installation
Select the COB Texture LED Display by starting with the installation environment and viewing conditions. Viewing distance, ambient brightness, screen dimensions, cabinet structure, installation height, maintenance access and indoor or outdoor exposure all influence the suitable pixel pitch, brightness and protection level.
The signal and power design should be reviewed together with the display. Confirm the required control system, input sources, content resolution, cable distance, power capacity and mounting structure so the final system can be installed and maintained efficiently.
For a project quotation, include the application, dimensions, viewing distance, quantity, destination market, installation method and required schedule. Final engineering, configuration and production details are confirmed after the requirements review.
